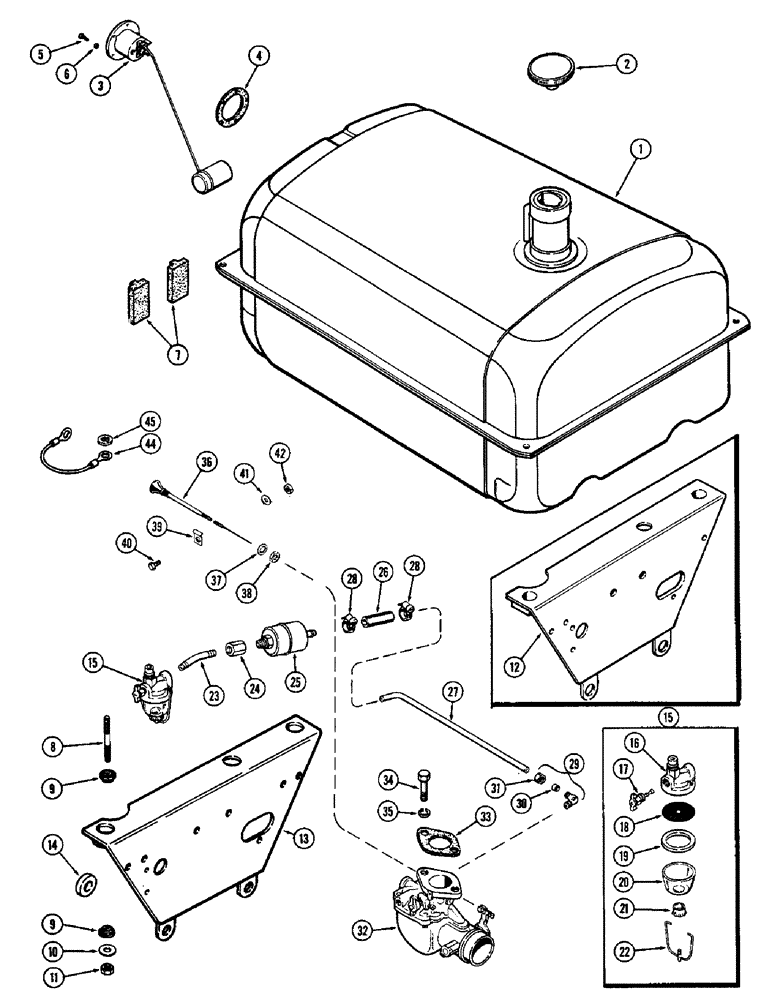

Запчасти Case 580B (076) - FUEL TANK, (159) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A51552

TANK

- fuel (Replaces A39769)

1шт.

1

A39818

TANK

- fuel (Forklift only)

1шт.

2

A51390

CAP

- fuel tank (Replaced A39377)

1шт.

3

A23480

SENDER UNIT

SENDER - fuel gauge

1шт.

4

A11822

GASKET

- sender

1шт.

5

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- #10-32 x 3/8" rd. hd.

5шт.

6

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

7

A37315

PAD

- rear tank support

2шт.

8

A37310

STUD

- 3/8" N.C. x 3-1/4"

4шт.

9

A37311

BUSHING

- mounting, rubber

8шт.

10

F62051

WASHER

- stud nut

4шт.

11

131-352

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. hex., lock

4шт.

12

A39378

SUPPORT

- front, fuel tank (Used prior to trac. ser. no. 8731267)

1шт.

13

A51792

SUPPORT

- front, fuel tank (1st used trac. ser. no. 8731267)

1шт.

14

A51801

BUSHING

SPACER - support to torque tube (1st used trac. ser. no. 8731267)

2шт.

15

A30049

STRAINER ELEMENT

STRAINER ASSY. - fuel, Inlcudes: Ref. 16 - 22

1шт.

16

A11214

HEAD

1шт.

17

A11205

VALVE

- shut-off

1шт.

18

A11211

FILTER SCREEN

SCREEN

1шт.

19

A11208

GASKET

- bowl

1шт.

20

A11209

BOWL

1шт.

21

A11210

ADJUSTER

NUT

1шт.

22

A11212

BAIL

ASSY.

1шт.

23

A51542

NIPPLE, LUBE

NIPPLE -, Serial Range: strainer-filter

1шт.

24

221-1335

COUPLING,Pipe, 1/8" NPT

- nipple to filter Pipe, 1/8" NPT

1шт.

25

D53499

FILTER

- fuel

1шт.

26

A39811

HOSE - fuel filter to fuel line

1шт.

27

A51541

TUBE

- fuel tank to filter (Replaces A51305)

1шт.

28

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16"

2шт.

29

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Assy - fuel line to carburetor, Incl. Ref. 30 and 31 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

30

222-653

SLEEVE,5/16" Tube, Comp

- for 5/16" tube

1шт.

31

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - for 5/16" tube

1шт.

32

CASA38249

CARBURETOR

ASSY. - (See Figure 78)

1шт.

33

G46826

GASKET

-, Serial Range: carburetor-manifold

1шт.

34

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

35

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

36

A38458

CONTROL

- choke

1шт.

37

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

38

86585245

SPECIAL NUT,JAM, 5/8" - 18

- 3/8" N.F. hex., jam

1шт.

39

A26673

CLIP

- choke cable

1шт.

40

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

41

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

42

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Choke control 0.25" ID x 15.00", SAE SC716 CS

2шт.

44

A39882

BEARING

WIRE - ground, fuel tank

1шт.

45

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.
