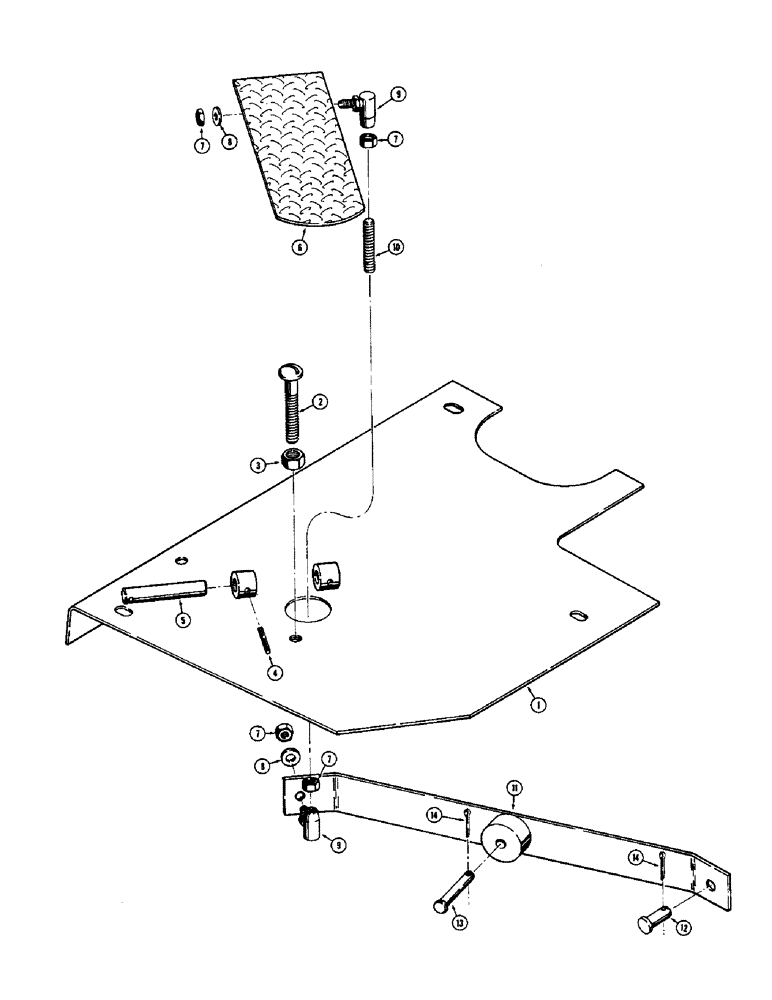

Запчасти Case 580B (075A) - ACCELERATOR PEDAL AND LINKAGE, (159) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

D55023

PLATE ASSY.

PLATE - floor, R.H. (Replaces D49715)

1шт.

2

75-640

SCREW,3/8" - 16 x 2 1/2"

- machine, round head (3/8"-16 N.C. x 2-1/2")

1шт.

3

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 N.C.)

1шт.

4

135-737

GROOVED PIN,5/32" x 1", Type E

PIN, GROOVED, , Shaft 5/32" x 1", Type E

1шт.

5

R17364

SHAFT

- pedal, pivot (Replaced 71044)

1шт.

6

D49700

PEDAL

- foot accelerator

1шт.

7

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

8

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

9

A19105

BALL JOINT

BALLJOINT - accelerator stud

2шт.

10

D50720

STUD

- accelerator pedal

1шт.

11

D50719

DRAG LINK

LINK - accelerator control

1шт.

12

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Throttle link 3/8" x 1.060"

1шт.

13

D50715

AXLE PIN

PIN - special, link support

1шт.

14

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.
