Запчасти Case 580B (074) - LOWER THROTTLE LINKAGE, (159) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

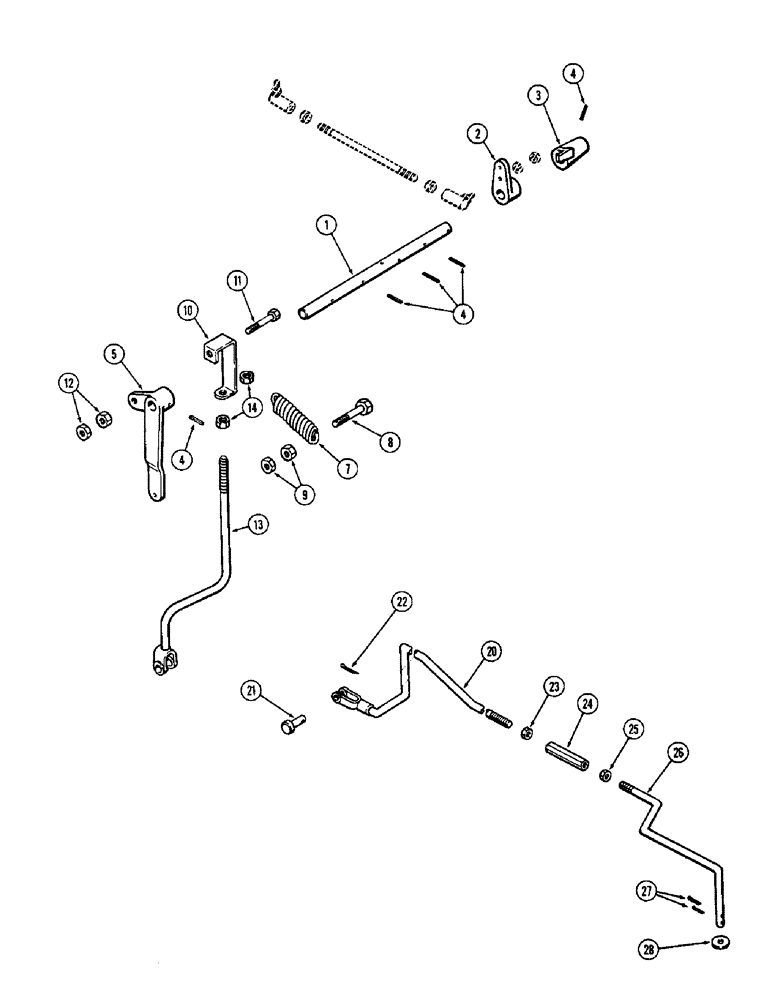

Схема запчастей Case 580B - (074) - LOWER THROTTLE LINKAGE, (159) SPARK IGNITION ENGINE (03) - FUEL SYSTEM
10
24
4
14
23
13
28
21
5
26
7
25
11
22
2
27
20
4
12
1
8
9
4
3

Артикул

Название

Примечание

Количество

1

A37264

SHAFT

- cross, throttle control

1шт.

1

A185091

SHAFT

- cross, throttle control

1шт.

2

A35638

LEVER

- cross shaft

1шт.

3

A35639

LEVER

- override

1шт.

4

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

4шт.

5

A37285

LEVER - throttle stop

1шт.

7

A38304

SPRING

- return

1шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8 x 2" N.C. hex.

1шт.

9

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex., jam

2шт.

10

A37271

DRAG LINK

LINK - throttle pivot

1шт.

11

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

1шт.

12

25-146

JAM NUT,Jam, 3/8"-16, G5

- 1/4" N.C. hex., jam

2шт.

13

A39386

ROD

- throttle

1шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

20

A37893

ROD

- throttle control, rear

1шт.

21

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4 x 3/4"

1шт.

22

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

23

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex. (R.H. thread)

1шт.

24

A37269

TURNBUCKLE

- rod adjusting

1шт.

25

129-342

NUT - 5/16" N.C. hex. (L.H. thread)

1шт.

26

A37266

ROD

- throttle control, front

1шт.

27

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

28

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

1шт.

Выбрано товаров: 23
