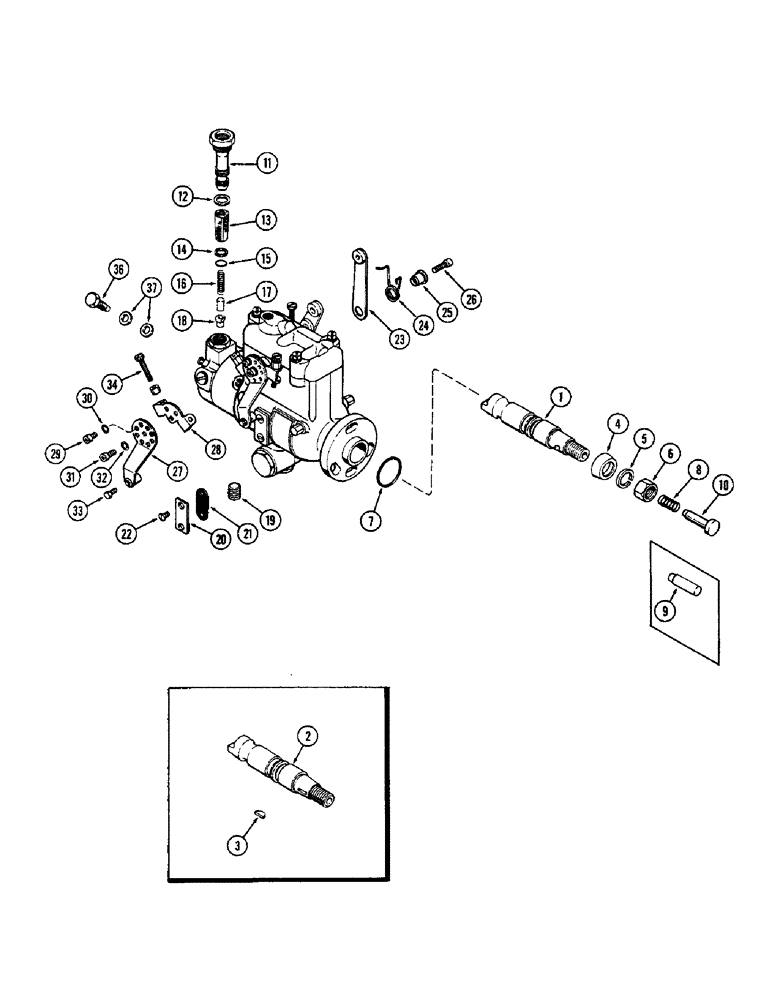

Запчасти Case 580B (048) - FUEL INJECTION PUMP, (188) DIESEL ENGINE, POWER SHUTTLE, 1ST USED ENG SN 2726393 (03) - FUEL SYSTEM

A51425

PUMP

ASSY. - fuel injection (2100 R.P.M.) (Stanadyne no. DBGFCC431-46AJ), Inlcudes: Ref. 1 - 37

1шт.

1

A44710

SHAFT

ASSY. - drive (Incl. pin) (Repl. G47113)

1шт.

2

G47113

SHAFT

- drive (Order A44710)

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

(Use only with G47113 shaft) #6, 5/32" x 5/8"

1шт.

4

R14711

SEAL

- drive shaft

1шт.

5

192-24

LOCK WASHER,9/16"

WASHER, LOCK, , Drive shaft nut 9/16"

1шт.

6

25-119

NUT,9/16"-18, G5

- (9/16" N.F. hex., jam)

1шт.

7

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - pilot tube

1шт.

8

G48502

SPRING

- thrust, pump drive shaft (1-3/16" free length)

1шт.

9

G47128

PLUNGER

- thust spring (Order A44653)

1шт.

10

A44653

PLUNGER

- thrust spring (Replaces G47128)

1шт.

11

A43869

SLEEVE

- end plate filter pilot

1шт.

12

51200280

SEAL

- end plate sleeve

1шт.

13

A43870

FILTER, FUEL

FILTER - element

1шт.

14

A43871

SEAL

- element (3/8 x 1/2 x 1/16")

1шт.

15

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Sleeve

1шт.

16

A43867

SPRING

- regulating (21/32" free length) (One end red & one end green)

1шт.

17

73621

PISTON

- regulating (Replaces A43866)

1шт.

18

A43868

SEAL

- regulating piston (Rubber)

1шт.

19

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

1шт.

20

G46330

COVER

- timing window

1шт.

21

NLS

NO LONGER SERVICED

- timing window cover

1шт.

22

73514

SCREW

- timing window cover

2шт.

23

G45338

ARM

- throttle

1шт.

24

G48505

SPRING

- throttle arm

1шт.

25

G49621

RETAINER

- throttle arm spring

1шт.

26

165-124

HEX SOC SCREW,Prev Torque, #10 - 32 x 3/4"

SCREW - throttle arm (#10-32 x 3/4" socket hd.)

1шт.

27

G45337

ARM

- shut-off

1шт.

28

NSS

NOT SOLD SEPARAT

LEVER - shut-off

1шт.

29

165-1

SCREW,#8 x 1/4"

- positioning, shut-off arm (#8-24 x 1/4" sckt. hd.)

1шт.

30

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Positioning screw Int Tooth, #8

1шт.

31

165-30

HEX SOC SCREW,#10 - 32 x 3/8"

SCREW - retaining, shut-off arm (#10-32 x 3/8" sckt. hd.)

1шт.

32

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, , Shut-off arm retaining screw Int Tooth, #10

1шт.

33

163-7

SCREW,Sl Hex, #8 - 32 x 3/8"

- pivot (#8-24 x 3/8" hex. hd.)

1шт.

34

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- adjusting, high idle (#10-32 x 1-3/4" sltd. hd.)

1шт.

36

73613

SCREW

- fuel line connector

4шт.

37

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw (3/8 x 1/2 x 1/16")

8шт.
