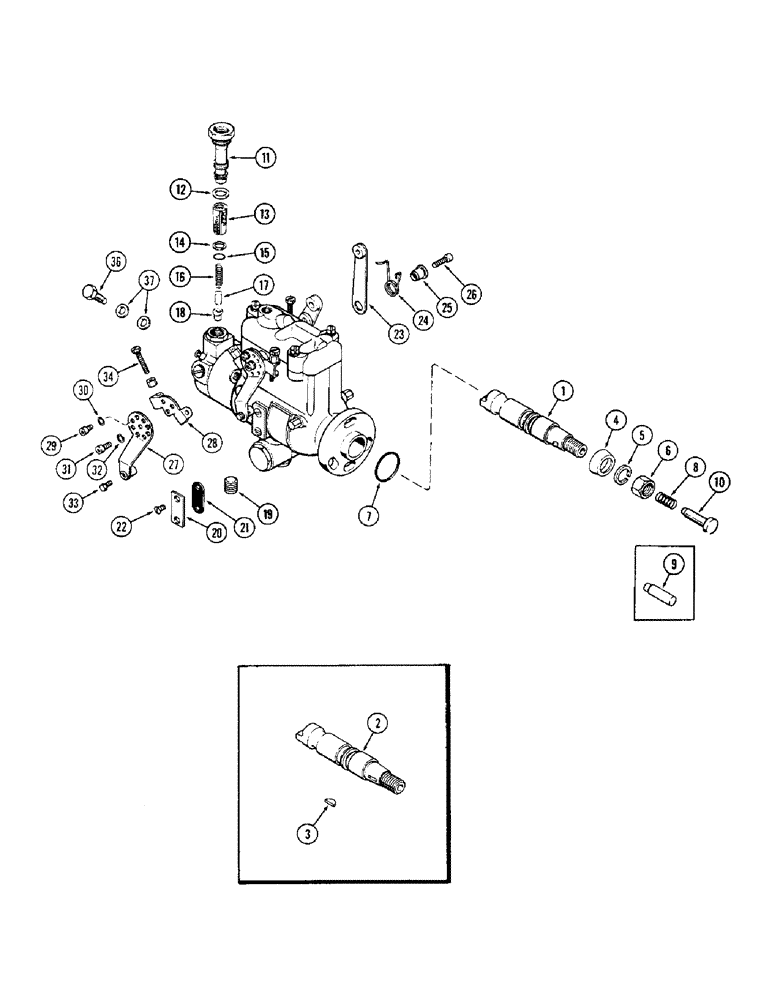

Запчасти Case 580B (046) - FUEL INJECTION PUMP, (188) DIESEL ENGINE, MECHANICAL SHUTTLE, 1ST USED ENG SN 2717963 (03) - FUEL SYSTEM

A51045

PUMP

ASSY. - fuel injection (1900 R.P.M.) (Stanadyne #DBGFCC431-40AJ), Inlcudes: Ref. 1 - 37

1шт.

1

A44710

SHAFT

ASSY. - drive (Incl. pin) (Repl. A47113)

1шт.

2

G47113

SHAFT

- drive (Order A44710)

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

(Only with A47113 shaft) #6, 5/32" x 5/8"

1шт.

4

R14711

SEAL

- drive shaft

1шт.

5

192-24

LOCK WASHER,9/16"

WASHER, LOCK, , Drive shaft 9/16"

1шт.

6

25-119

NUT,9/16"-18, G5

- (9/16" N.F. hex.)

1шт.

7

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - pilot tube

1шт.

8

G48502

SPRING

- thrust, drive shaft

1шт.

9

G47128

PLUNGER

- thrust (Order A44653)

1шт.

10

A44653

PLUNGER

- thrust (Replaces G47128)

1шт.

11

A43869

SLEEVE

- end plate filter pilot

1шт.

12

51200280

SEAL

- filter sleeve

1шт.

13

A43870

FILTER, FUEL

FILTER - element

1шт.

14

A43871

SEAL

- filter element

1шт.

15

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Sleeve seal

1шт.

16

A43867

SPRING

- pump regulating

1шт.

17

73621

PISTON

- pump regulating (Replaces A43866)

1шт.

18

A43868

SEAL

- regulating piston

1шт.

19

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

1шт.

20

G46330

COVER

- timing window

1шт.

21

NLS

NO LONGER SERVICED

- cover

1шт.

22

73514

SCREW

- timing window

2шт.

23

G45338

ARM

- throttle

1шт.

24

G48505

SPRING

- throttle arm

1шт.

25

G49621

RETAINER

- spring, throttle arm

1шт.

26

165-124

HEX SOC SCREW,Prev Torque, #10 - 32 x 3/4"

SCREW - throttle arm (#10-32 x 3/4" socket hd.)

1шт.

27

G45337

ARM

- shut-off

1шт.

28

NSS

NOT SOLD SEPARAT

LEVER - shut-off

1шт.

29

165-1

SCREW,#8 x 1/4"

- position, shut-off arm (#8-24 x 1/4" socket hd.)

1шт.

30

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Position screw Int Tooth, #8

1шт.

31

165-30

HEX SOC SCREW,#10 - 32 x 3/8"

SCREW - retaining, shut-off arm (#10-32 x 3/8" sckt. hd.)

1шт.

32

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, , Retaining screw Int Tooth, #10

1шт.

33

163-70

SCREW - pivot (#8-24 x 3/8" hex. hd.)

1шт.

163-70 Screw per Jim Chronis memo 11/23/98 this should not have been released as a Service part. dealer should be able to find a #8-24 x 3/8 " Socket Head Screw, locally.

1шт.

34

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- adjusting, high idle

1шт.

36

73613

SCREW

- connector, injection tube

4шт.

37

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector

8шт.
