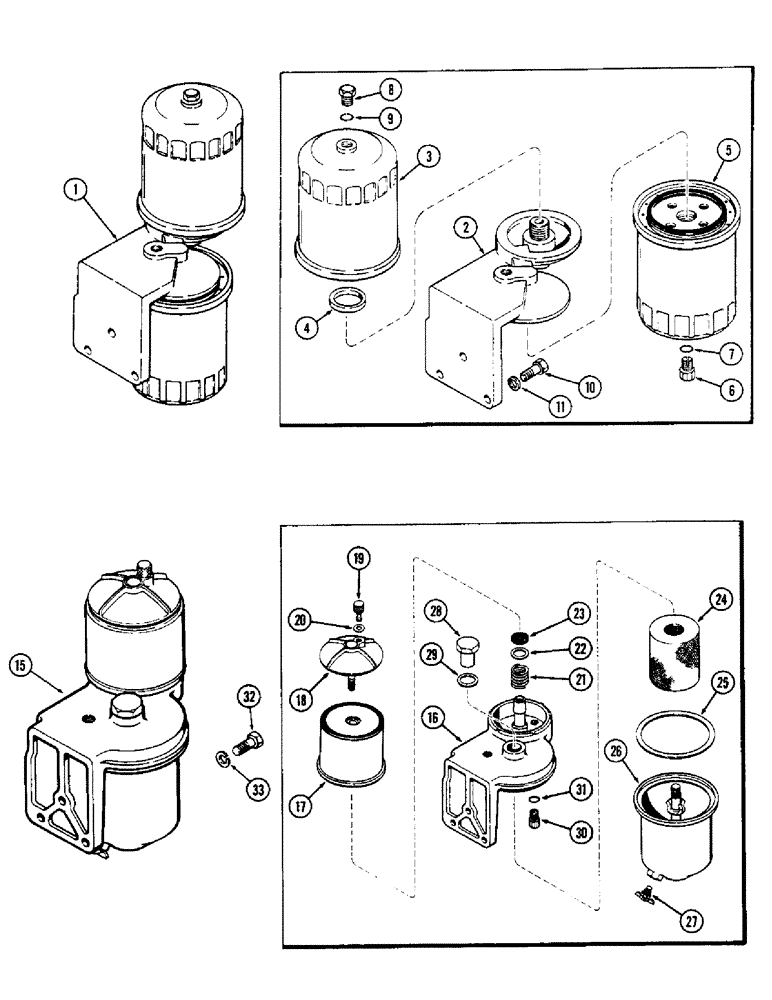

Запчасти Case 580B (042) - FUEL FILTER (SPIN-ON TYPE), (188) DIESEL ENGINE, 1ST USED ENG SN 2718490 (03) - FUEL SYSTEM

1

A51739

FILTER

ASSY. - (Replaces A39865), Includes: Ref. 2 - 9

1шт.

2

A51738

CYLINDER HEAD

HEAD - fuel filter (Replaces A39866)

1шт.

3

A39867

FUEL FILTER

ASSY. - secondary (Also order ref. 8), Includes: Ref. 4

1шт.

4

A42315

GASKET

filter

1шт.

5

A39868

FUEL FILTER

primary (Also order ref. 6 & 7)

1шт.

6

G49080

PLUG

filter drain

1шт.

7

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

8

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Assy (3/16" OD tube) Includes Ref. 9 Hex Hd, 3/8"-24 ORB

1шт.

9

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

10

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

11

92-5

LOCK WASHER,5/16"

3шт.

15

A35735

FILTER

ASSY. - fuel (Order A51739), can type used prior s/n 2718490, Includes: Ref. 16 - 31

1шт.

16

A35664

HEAD

mounting, can type used prior s/n 2718490

1шт.

17

A51346

FILTER

ASSY. - final (Incl. gasket) (Repl. A39109 & A39937), can type used prior s/n 2718490

1шт.

18

A35672

CAP

ASSY. - final filter, can type used prior s/n 2718490, Includes: Ref. 19 and 20

1шт.

19

A35971

SCREW,1/4" - 20 x 0.695"

VALVE - bleeder, can type used prior s/n 2718490

1шт.

20

NLS

NO LONGER SERVICED

GASKET - bleeder valve, can type used prior s/n 2718490

1шт.

21

A35669

SPRING

final filter, can type used prior s/n 2718490

1шт.

22

A35670

WASHER

final filter, can type used prior s/n 2718490

1шт.

23

A35671

GASKET

rubber, final filter, can type used prior s/n 2718490

1шт.

24

A35863

FILTER, ELEMENT

ASSY. - primary filter, can type used prior s/n 2718490, Includes: Ref. 25

1шт.

25

A28056

GASKET

filter body, can type used prior s/n 2718490

1шт.

26

A37099

FUEL FILTER

BODY - primary filter, can type used prior s/n 2718490

1шт.

27

217-102

PLUG, DRAIN

VALVE, can type used prior s/n 2718490

1шт.

28

A21131

NUT

primary filter body, can type used prior s/n 2718490

1шт.

29

A28055

GASKET

nut to head, can type used prior s/n 2718490

1шт.

30

G49080

PLUG

drain, can type used prior s/n 2718490

1шт.

31

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O"RING - 3/8 x 9/16 x 3/32", can type used prior s/n 2718490

1шт.

32

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Can type used prior S/N 2718490 Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

33

92-5

LOCK WASHER,5/16"

can type used prior s/n 2718490 5/16"

3шт.
