Запчасти Case 580B (038) - FUEL TANK, (188) DIESEL ENGINE (03) - FUEL SYSTEM

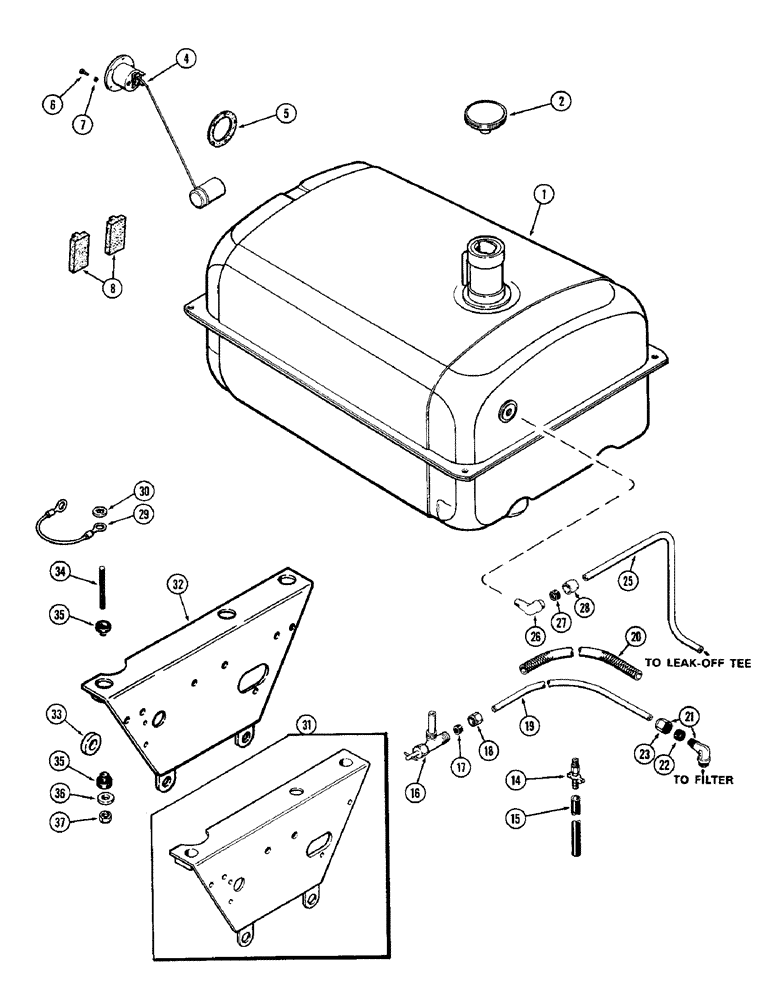

Схема запчастей Case 580B - (038) - FUEL TANK, (188) DIESEL ENGINE (03) - FUEL SYSTEM
19
32
25
7
22
36
5
1
35
16
29
17
4
34
6
23
8
21
37
30
2
15
18
35
33
27
14
31
26
20
28

Артикул

Название

Примечание

Количество

1

A51553

TANK

- fuel (Replaces A39764)

1шт.

2

A51390

CAP

- fuel tank (Replaced A39377)

1шт.

4

A23480

SENDER UNIT

SENDER - fuel gauge

1шт.

5

A11822

GASKET

- sender

1шт.

6

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- #10-32 x 3/8" rd. hd.

5шт.

7

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

8

A37315

PAD

- rear, tank support

2шт.

14

217-107

VALVE

- water trap drain

1шт.

15

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

16

A51780

LOCK VALVE

VALVE ASSY. - needle, fuel line (Replaces A7313), Includes: Ref. 17 and 18

1шт.

17

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

18

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

19

A35630

TUBE

LINE - fuel, Serial Range: valve-filter

1шт.

20

A27241

LOOM

- fuel line

1шт.

21

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- to filter, 3/8" tube x 1/4" P.T., Includes: Ref. 22 and 23

1шт.

22

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

23

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

25

A37899

TUBE

- fuel tank leak-off, 1/4" tube

1шт.

26

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSY. - leak-off line to fuel tank, Includes: Ref. 27 and 28

1шт.

27

222-104

SLEEVE,3/8" Tube

- for 1/4" tube

1шт.

28

222-114

NUT,5/8"-24

NUT - for 1/4" tube

1шт.

29

A39882

BEARING

WIRE - ground, fuel tank

1шт.

30

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

31

A39378

SUPPORT

- front, fuel tank (Used prior to trac. ser. no. 8731267)

1шт.

32

A51792

SUPPORT

- front, fuel tank (1st used trac. ser. no. 8731267)

1шт.

33

A51801

BUSHING

SPACER - support to torque tube (1st used trac. ser. no. 8731267)

2шт.

34

A37310

STUD

- 3/8" N.C. x 3-1/4"

4шт.

35

A37311

BUSHING

- mounting, rubber

8шт.

36

G62051

WASHER - 13/32 x 1-1/2"

4шт.

37

131-352

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. hex., lock

4шт.

Выбрано товаров: 30
