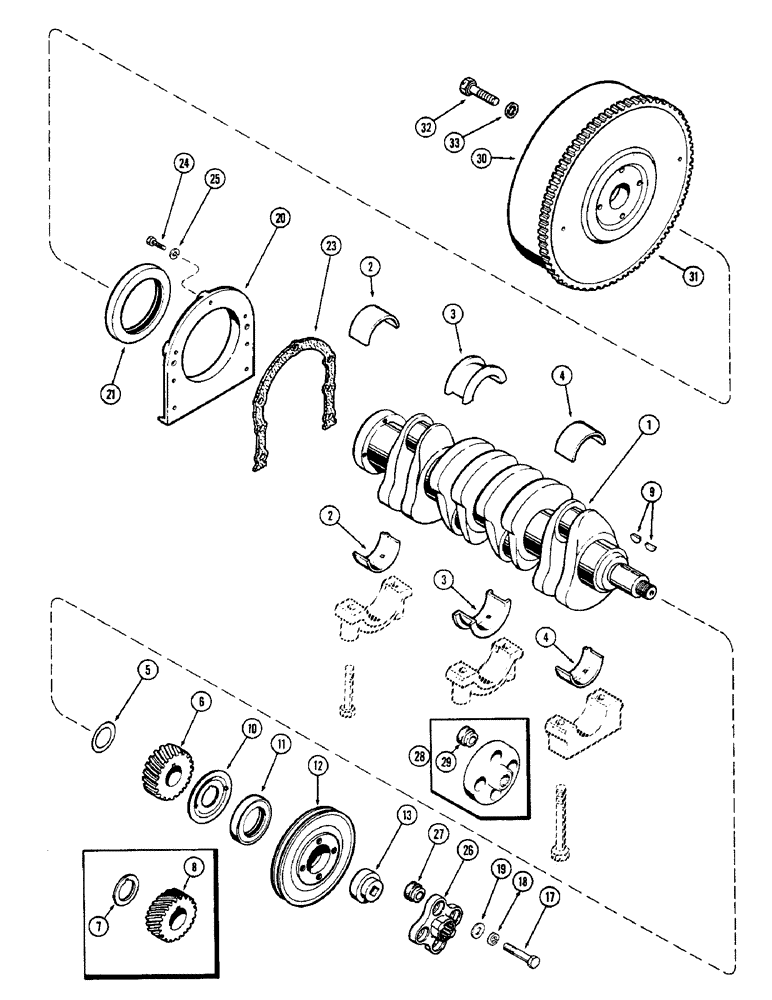

Запчасти Case 580B (092) - CRANKSHAFT AND FLYWHEEL, (188) SPARK IGNITION ENGINE (02) - ENGINE

1

A39146

CRANKSHAFT

1шт.

2

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINER - main bearing, rear (Std.)

1шт.

2

A36496

LINING

LINER - main bearing, rear (.002" undersize)

1шт.

2

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINER - main bearing, rear (.010" undersize)

1шт.

2

A36498

KIT

LINER - main bearing, rear (.020" undersize)

1шт.

2

A36499

BEARING LINER

LINER - main bearing, rear (.030" undersize)

1шт.

3

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINER - main beairng, center (Std.)

1шт.

3

A36491

LINING

LINER - main bearing, center (.002" undersize)

1шт.

3

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER - main bearing, center (.010" undersize)

1шт.

3

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER - main bearing, center (.020" undersize)

1шт.

3

A36494

LINING

LINER - main bearing, center (.030" undersize)

1шт.

4

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINER - main bearing, front (Std.)

1шт.

4

A36481

LINING

LINER - main bearing, front (.002" undersize)

1шт.

4

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINER - main bearing, front (.010" undersize)

1шт.

4

A36483

LINING

LINER - main bearing, front (.020" undersize)

1шт.

4

A36484

LINING

LINER - main bearing, front (.030" undersize)

1шт.

5

A29293

SHIM,.010" Thk

Thrust .010" Thk

1шт.

6

A39288

GEAR

- crankshaft (24 teeth) (1-5/32" wide) (Replaces A29294 spacer & A29263 gear)

1шт.

7

A29294

BUSHING

SPACER - thrust (Use with A29263 gear only)

1шт.

8

A29263

GEAR

- crankshaft (24 teeth) (1-1/16" wide) (Order A39288)

1шт.

9

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft

2шт.

10

A29259

SLINGER

- oil

1шт.

11

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crackshaft front (2 x 3 x 1/2")

1шт.

12

A50962

PULLEY

- fan drive (Replaced G11342 & A33931)

1шт.

13

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.

17

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

18

92-7

LOCK WASHER,7/16"

4шт.

19

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- 29/64 x 3/4 x 16 ga.

4шт.

20

A38390

RETAINER

- rear oil seal

1шт.

A38390 retainer - Illustration shows bottom flange on wrong side.

1шт.

21

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, rear (4 x 5 x 1/2") (Replaces A39111)

1шт.

23

A39188

GASKET

- retainer

1шт.

24

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- 1/4 x 3/4" N.C. hex.

4шт.

24

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

- 1/4 x 1" N.C. hex.

3шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

26

A51885

COUPLING, BREAK AWAY

COUPLING ASSY. - pump shaft (Replaces A35558), Inlcudes: Ref. 27

1шт.

27

A45216

BUSHING

- coupling

4шт.

28

D140524

FLEXIBLE COUPLING,13T

COUPLING ASSY. - flexible (Order A51885), Inlcudes: Ref. 29

1шт.

29

G36905

BLOCK

BUSHING - coupling

4шт.

30

A39336

FLYWHEEL

ASSY., Inlcudes: Ref. 31

1шт.

31

G11710

GEAR

- ring (135 teeth)

1шт.

32

A37216

BOLT

- 7/16 x 2" N.F. hex. drilled

4шт.

33

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- flywheel mounting

4шт.
