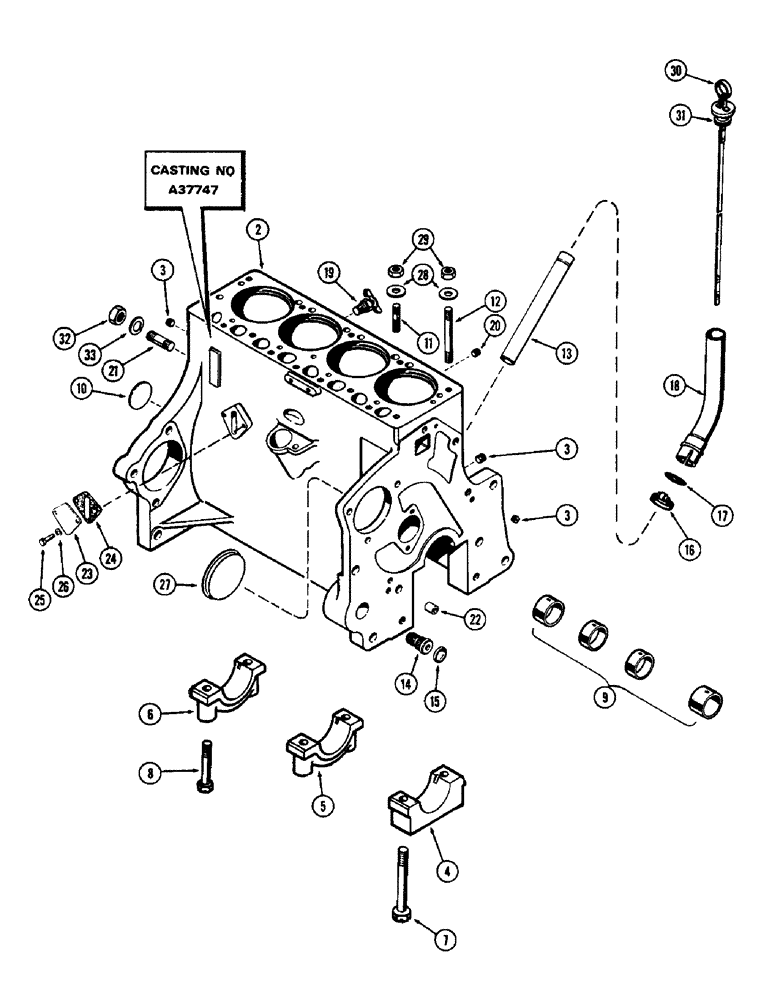

Запчасти Case 580B (090) - CYLINDER BLOCK, (188) SPARK IGNITION ENGINE (02) - ENGINE

A41029

SKELETON ENGINE

BLOCK ASSY. - cylinder, short (Incl. crankshaft & brgs., conn. rods & brgs., piston assy., crankshaft & bushings, oil pump & timing gear) (Casting #A37747), Inlcudes: Ref. 2 - 22

1шт.

2

A41030

SKELETON ENGINE

BLOCK ASSY. - cylinder, stripped (Casting #A37747), Inlcudes: Ref. 3 - 18

1шт.

3

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

3шт.

4

G2059

CAP - crankshaft main bearing, front

1шт.

5

G2060

CAP - crankshaft main bearing, center

1шт.

6

G2062

CAP - crankshaft main bearing, rear

1шт.

7

G49059

BOLT

- 1/2 x 4-3/4" N.C. hex., sltd., front cap & pump

2шт.

8

G49038

BOLT - 1/2 x 3-3/8" N.C. hex., sltd.

4шт.

9

A41229

BUSHING

SET - camshaft

1шт.

10

A39241

PLUG,Exp, 2.12" dia

- camshaft hole, 2-1/8"

1шт.

11

A30057

STUD

- 1/2" N.C. x 2"

3шт.

12

A29436

STUD

- 1/2" N.C. x 5-7/8"

14шт.

13

A37149

TUBE

- dipstick & oil filler

1шт.

14

A153552

ADAPTER

- oil filter

1шт.

15

41-1016

PLUG,Cup, 1"

- filter adapter, 1" cup type

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - extension (1-3/16 to 1-3/4

1шт.

17

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O"RING - (1-1/8 x 1-3/8 x 1/8")

1шт.

18

A37407

TUBE

- oil filler extension

1шт.

19

A23656

COCK, DRAIN

DRAIN COCK

1шт.

20

221-32

PLUG,Sq Soc, 3/8"-18 NPTF

- 3/8" P.T. sq. sckt. hd.

1шт.

21

A29333

STUD

- 5/8" N.F. x 3"

2шт.

22

A29442

RING

- dowel

2шт.

23

G11702

COVER

- fuel pump opening

1шт.

24

A65561

GASKET

- cover (Replaced G46902)

1шт.

25

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

A29268

PLUG

COVER - timing gear chamber opening

1шт.

28

G49404

WASHER

- cyl. head stud

19шт.

29

A30021

NUT

- cyl. head stud

19шт.

30

A37406

DIPSTICK

ASSY. - oil gauge

1шт.

31

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O"RING - (3/4 x 1 x 1/8")

2шт.
