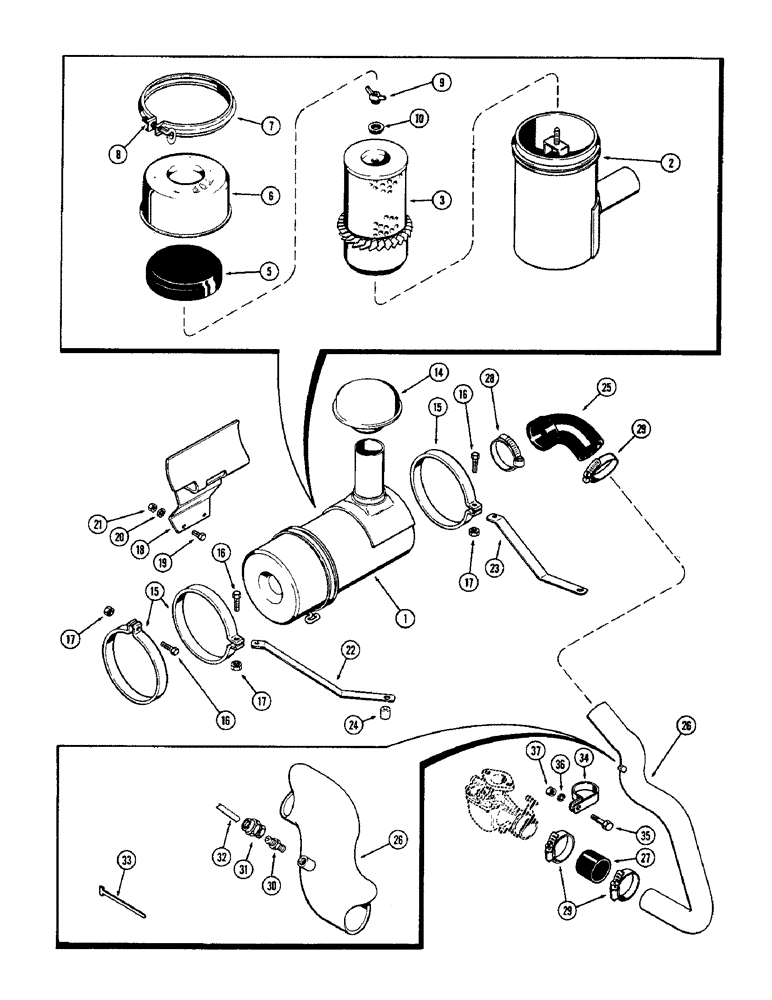

Запчасти Case 580B (082) - AIR CLEANER, (188) SPARK IGNITION ENGINE (02) - ENGINE

1

A139086

AIR CLEANER

ASSY. - (Replaces A39346)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

3

A42274

AIR FILTER

ELEMENT - cleaner, Inlcudes: Ref. 5

1шт.

5

F22312

BAFFLE

- rubber

1шт.

6

F91760

CUP

- air cleaner access

1шт.

7

F84999

CLAMP,168.28mm

ASSY. - cup retaining

1шт.

8

25-224

SQUARE NUT,Sq, 1/4"-20

- 1/4" N.C. hex.

1шт.

9

F91761

WING NUT

- element retaining wing (Replaces D37977)

1шт.

10

D37976

GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk

- nut seal

1шт.

14

A61276

AIR CLEANER

PRE-CLEANER ASSY.

1шт.

15

A39347

BAND

- air cleaner mounting

3шт.

16

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- 1/4 x 1-3/4" N.C. hex.

3шт.

17

131-48

LOCK NUT,1/4"-20, GB

NUT - 1/4" N.C. hex., lock

3шт.

18

A39348

BRACKET

- air cleaner mounting

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

22

A39350

STRAP

- air cleaner support

1шт.

23

A39607

STRAP

- air cleaner support

1шт.

24

71029

SPACER - strap

1шт.

25

A39357

HOSE

- air cleaner to air tube

1шт.

26

A39524

TUBE

- air, Serial Range: cleaner-carburetor

1шт.

27

G46157

AIR INTAKE TUBE,2" ID x 2.375" OD x 2" L

HOSE, 2.00" ID x 2.00", SAE 20R2 - Carburetor to Air Tube

1шт.

28

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16 to 3-1/4"

1шт.

29

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

3шт.

30

D36264

FITTING

FILTER - safety

1шт.

31

222-5130

FITTING,7/16"-24 x 1/8" NPT Fem

COUPLING - vacuum tube to filter, 3/8" P.T. for 1/4" tube

1шт.

32

A39527

TUBE - safety filter to indicator on panel

1шт.

33

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - vacuum tube to tachometer cable

1шт.

34

A39356

CLAMP - tube

1шт.

35

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

- 5/8 x 1-3/4" N.C. hex.

1шт.

36

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

37

25-106

NUT,3/8"-16, G5

- 5/8" N.C. hex.

1шт.
