Артикул
Название
Примечание
Количество

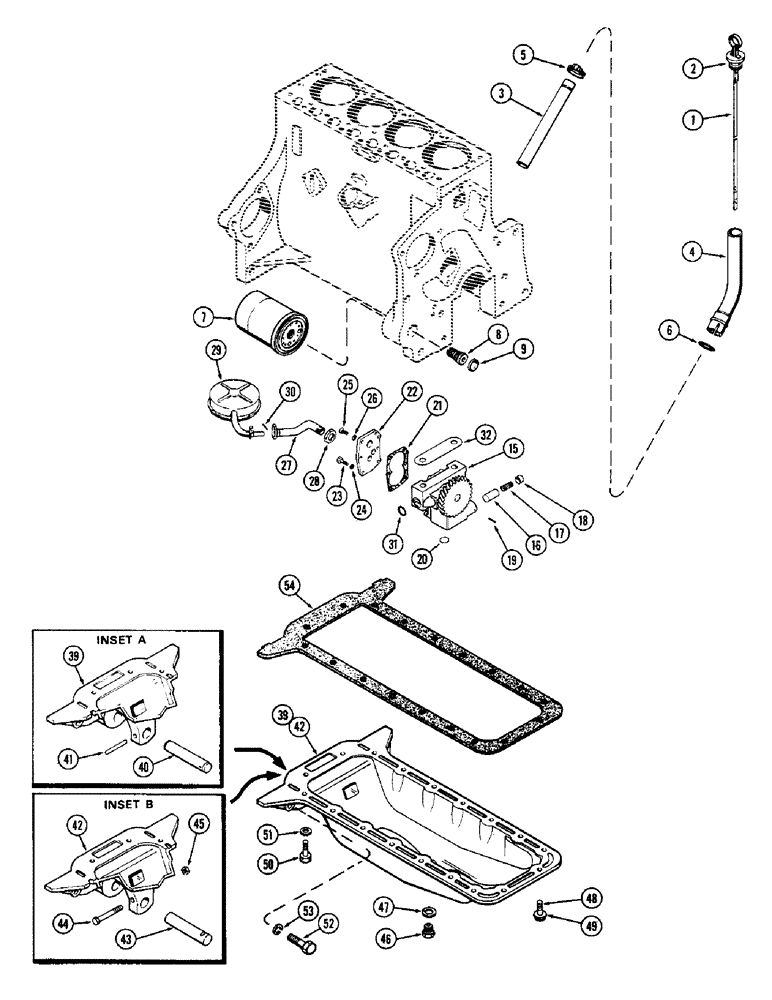

1
A37406
DIPSTICK
ASSY. - engine oil level, Inlcudes: Ref. 2
1шт.
2
F62075
O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro
"O"RING - 3/4 x 1 x 1/8"
2шт.
3
A37149
TUBE
- oil filler & dipstick (In block)
1шт.
4
A37407
TUBE
EXTENSION - filler & dipstick tube
1шт.
5
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - extension, 1-3/16 to 1-3/4"
1шт.
6
A27342
O-RING,1.109" ID x 1.387" OD x 0.139"
"O"RING - 1-1/8 x 1-3/8 x 1/8"
1шт.
7
A37189
FILTER, ELEMENT
FILTER - engine oil
1шт.
8
A153552
ADAPTER
-, Serial Range: filter-block
1шт.
9
41-1016
PLUG,Cup, 1"
- adapter, 1" cup
1шт.
15
A38369
PUMP
ASSY. - oil (Replaces G11844), Inlcudes: Ref. 16 - 26
1шт.
16
A155144
VALVE, PRESSURE RELI
- relief
1шт.
17
G48513
VALVE SPRING
SPRING - relief valve
1шт.
18
A29260
RETAINER
- relief spring
1шт.
19
132-50
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
20
A39321
PLUG,Cup, 7/16"
- pump body (1/2" cup type) (Replaces A30020)
2шт.
21
G46852
GASKET
- pump cover
1шт.
22
NSS
NOT SOLD SEPARAT
COVER - pump body
1шт.
23
13-420
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
1шт.
23
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
3шт.
24
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
25
73-410
SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"
- 1/4 x 5/8" flat hd. mach.
2шт.
26
193-52
LOCK WASHER,Ext Csk Tooth, 1/4"
WASHER, LOCK, Ext Csk Tooth, 1/4"
1шт.
27
A39035
TUBE
PIPE ASSY. - suction
1шт.
28
223-207
LOCK NUT
NUT -, Serial Range: pipe-pump
1шт.
29
A39036
FLOAT
ASSY. - (Includes screen)
1шт.
30
132-50
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
31
A27365
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
"O"RING - 3/4 x 15/16 x 3/32"
1шт.
32
G11337
SHIM,.002" Thk
Pump to block .002" Thk
1шт.
32
G11338
SHIM,.005" Thk
Pump to block .005" Thk
1шт.
39
A38426
PAN
- oil (Use with A51356 radius rod rear pivot pin and 135-361 groove pin) (See inset A) (Order 1-A51538 oil pan, 1-A51537 pivot pin, 1-26-544 bolt & 131-351 nut)
1шт.
40
A51356
PIN
- radius rod rear pivot
1шт.
41
135-361
GROOVED PIN,1/4" x 2", Type F
Pin, Grooved, 1/4" x 2", Type F
1шт.
42
A51538
PAN
- oil (Use with A51537 pivot pin, 26-544 bolt and 131-351 nut) (See inset B)
1шт.
43
A51537
PIN
- radius rod rear pivot
1шт.
44
26-544
BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 8
- 5/16 x 2-3/4" N.C. hex.
1шт.
45
131-351
LOCK NUT,5/16"-18, GA
NUT - 5/16" N.C. hex.
1шт.
46
A140222
PLUG
- drain, oil pan (Replaces A14280)
1шт.
47
A58608
GASKET
- drain plug
1шт.
48
26-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8
- 5/16 x 1-3/4" N.C. hex.
12шт.
48
26-516
BOLT,Hex, 5/16" - 18 x 1", Gr 8
2шт.
49
193-83
LOCK WASHER,Int Tooth, 5/16"
WASHER - Shakeproof, 5/16" ext.
14шт.
50
26-564
BOLT,Hex, 5/16" - 18 x 4", Gr 8
- 5/16 x 4" N.C. hex.
2шт.
51
195-1019
WASHER
- 11/32 x 7/8 x 1/16", brass
2шт.
54
NSS
NOT SOLD SEPARAT
GASKET - oil pan (Order A43065 Figure 68)
1шт.
Выбрано товаров: 46
