Запчасти Case 580B (064) - PISTON ASSEMBLY AND CONNECTING RODS, (159) SPARK IGNITION (02) - ENGINE

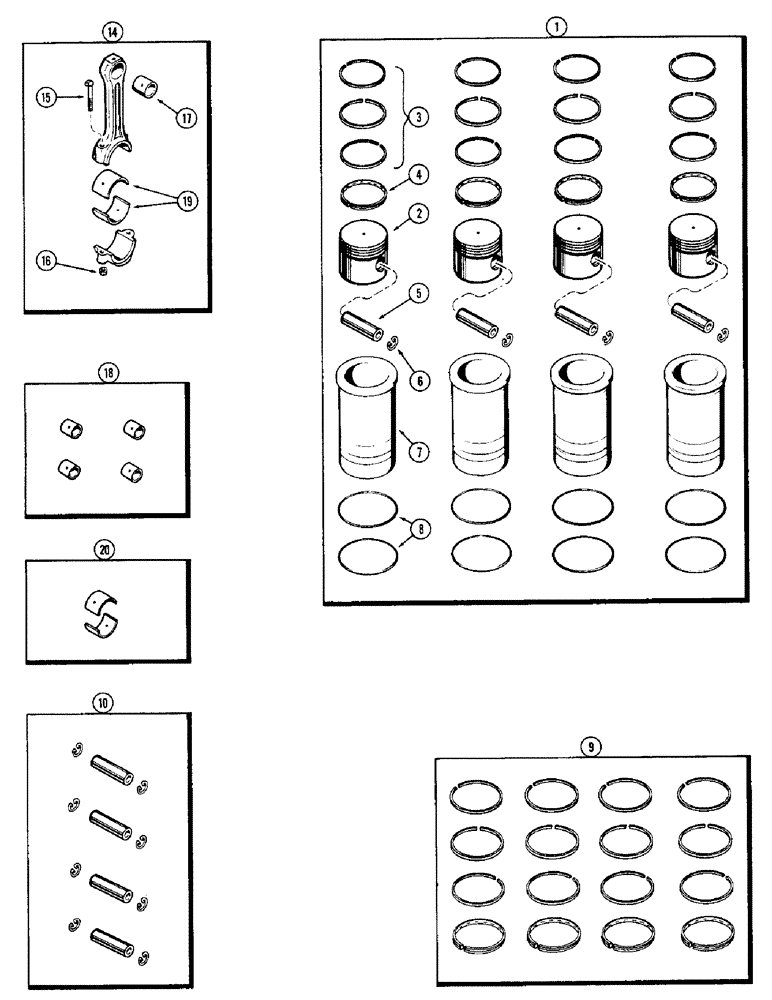

Схема запчастей Case 580B - (064) - PISTON ASSEMBLY AND CONNECTING RODS, (159) SPARK IGNITION (02) - ENGINE
4
8
9
10
16
5
3
15
18
20
6
7
17
14
19
1
2

Артикул

Название

Примечание

Количество

1

G11958

SET

PISTON & SLEEVE KIT - (Set of 4), Inlcudes: Ref. 2 - 8

1шт.

2

G2105

PISTON

- cylinder

4шт.

3

G4810

RING, PISTON

RING - compression, piston (See ref. 9)

12шт.

4

G4811

RING, PISTON

RING - oil control, piston (See ref. 9)

4шт.

5

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 10)

4шт.

6

A26915

RING, SNAP

RING - retaining (See ref. 10)

8шт.

7

G2104

SLEEVE CYLINDER

SLEEVE - cylinder

4шт.

8

G46909

O-RING,3.112" ID x 3.344" OD

"O"RING - sleeve packing

8шт.

9

G11994

PACKAGE, RINGS

RING KIT - re-ring (Set of 4)

1шт.

10

A36030

KIT

PIN KIT - piston (Set of 4 pins & 8 rings)

1шт.

14

G11172

STEM

ROD ASSY. - connecting, Inlcudes: Ref. 15 - 20

4шт.

15

G11701

BOLT

- cap

2шт.

16

A51904

NUT

NUT - 3/8" N.F. hex.

2шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - conn. rod (Order ref. 18)

1шт.

18

G11922

BUSHING

SET - conn. rod (Set of 4)

1шт.

19

NSS

NOT SOLD SEPARAT

LINER - conn. rod (Order ref. 20)

1шт.

20

A36500

SEAL

LINER - conn. rod bearing (Std.)

4шт.

20

A36501

BEARING LINER

LINER - conn. rod bearing (.002" undersize)

4шт.

20

A36502

LINING

LINER - conn. rod bearing (.010" undersize)

4шт.

20

A36503

BEARING LINER

LINER - conn. rod bearing (.020" undersize)

4шт.

20

A36504

KIT

LINER - conn. rod bearing (.030" undersize)

4шт.
