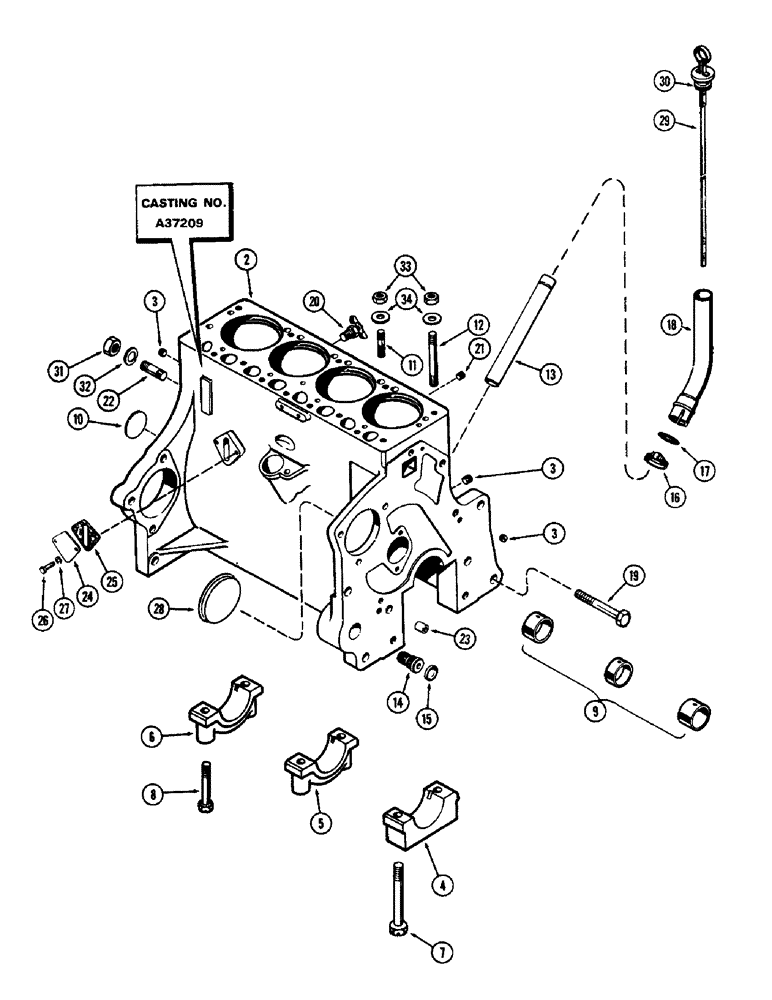

Запчасти Case 580B (060) - CYLINDER BLOCK, (159) SPARK IGNITION ENGINE (02) - ENGINE

A41599

SKELETON ENGINE

BLOCK ASSY. - short (Incl. stripped block, crankshaft & brgs., conn. rods & brgs., piston & bushings, camshaft & bushings & oil pump) (Casting #A37209), Inlcudes: Ref. 2 - 23

1шт.

2

A40816

SKELETON ENGINE

BLOCK ASSY. - stripped (Casting #A37209), Inlcudes: Ref. 3 - 19

1шт.

3

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

3шт.

4

G2035

CAP

- crankshaft main bearing, front

1шт.

5

G2036

CAP

- crankshaft main bearing, center

1шт.

6

G2037

CAP

- crankshaft main bearing, rear

1шт.

7

G49059

BOLT

- 1/2 x 4-3/4" N.C. hex., sltd., brg. cap & oil pump

2шт.

8

G49037

BOLT

- 1/2 x 3" N.C. hex., sltd.

4шт.

9

A41225

KIT

BUSHING SET - camshaft

1шт.

10

A39241

PLUG,Exp, 2.12" dia

- 2-1/8" dia., camshaft hole (Replaces A30033)

1шт.

11

A30057

STUD

- 1/2" N.C. x 2", Serial Range: head-block

9шт.

12

A29436

STUD

- 1/2" N.C. x 5-7/8", Serial Range: head-block

5шт.

13

A37149

TUBE

- dipstick & oil filler

1шт.

14

A153552

ADAPTER

- oil filter

1шт.

15

41-1016

PLUG,Cup, 1"

- 1" cup, adapter

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - extension (1-3/16 to 1-3/4")

1шт.

17

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O"RING - (1-1/8 x 1-3/8 x 1/8")

1шт.

18

A37407

TUBE

EXTENSION - filler & dipstick tube

1шт.

19

A38303

BOLT

BOLT - 5/8 x 3-13/64" N.C. hex.

1шт.

20

A23656

COCK, DRAIN

DRAIN COCK

1шт.

21

221-850

PLUG,Hex Soc, 1/16"-27

- 1/16" P.T.

1шт.

22

A29333

STUD

- 5/8" N.C./N.F. x 3" engine mounting

2шт.

23

A29442

RING

- dowel, timing gear cover

2шт.

24

G11702

COVER

- fuel pump opening

1шт.

25

A65561

GASKET

- cover (Replaced G46902)

1шт.

26

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

27

92-5

LOCK WASHER,5/16"

2шт.

28

A29268

PLUG

COVER - timing gear chamber hole, 3-1/4"

1шт.

29

A37406

DIPSTICK

- engine oil level, Inlcudes: Ref. 30

1шт.

30

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O"RING - (3/4 x 1 x 1/8")

2шт.

31

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

2шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

33

A30021

NUT

- head stud

19шт.

34

G49404

WASHER

- head stud

19шт.
