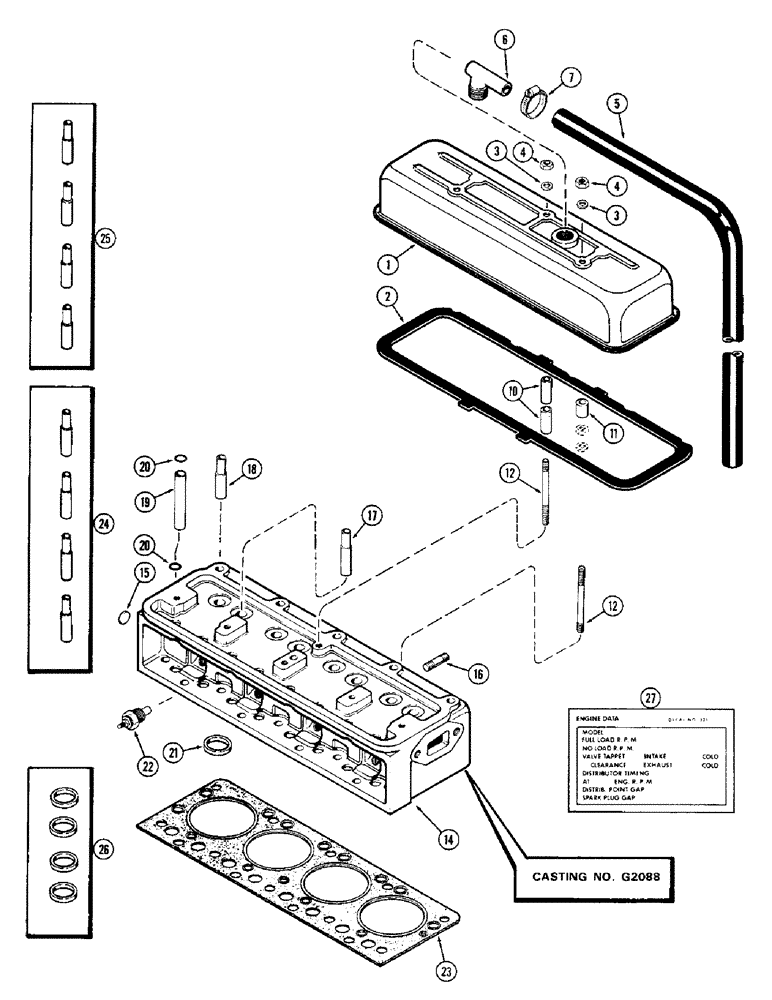

Запчасти Case 580B (056) - CYLINDER HEAD AND COVER, (159) SPARK IGNITION ENGINE (02) - ENGINE

1

A37212

COVER

ASSY. - cylinder head

1шт.

2

A43021

GASKET

- cover

1шт.

3

A29277

WASHER

- 13/32 x 1 x 1/8"

3шт.

4

25-1106

NUT - 3/8" N.C. hex.

3шт.

5

A39570

HOSE

- breather, neoprene

1шт.

6

A9155

90 ELBOW

- breather

1шт.

7

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16"

1шт.

10

A29999

SPACER

- cover, 19/32" long

2шт.

11

A30065

SPACER

- cover, 17/32" long

2шт.

12

G49505

STUD

- 3/8" N.C. x 4-5/8"

3шт.

14

G11874

HEAD (CYLINDER)

HEAD ASSY. - cylinder (Casting #G2088), Inlcudes: Ref. 15 - 21

1шт.

15

41-18

PLUG

- 1-1/8" expansion

1шт.

16

A29431

STUD

- 3/8" N.C. x 1-3/4"

7шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 24)

4шт.

18

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 25)

4шт.

19

G11360

TUBE,0.687" OD x 3.687" L

- push rod

8шт.

20

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O"RING - 11/16 x 7/8 x 3/32"

16шт.

21

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 26)

4шт.

22

A21462

SENDER UNIT

SENDER - heat gauge

1шт.

23

G46870

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

24

G10269

KIT

GUIDES - intake valve (Set of 4)

1шт.

25

A30270

GUIDE

S - exhaust valve (Set of 4)

1шт.

26

G11960

KIT

INSERTS - exhaust valve seat (Set of 4)

1шт.

27

321-1356

DECAL

- engine data

1шт.
