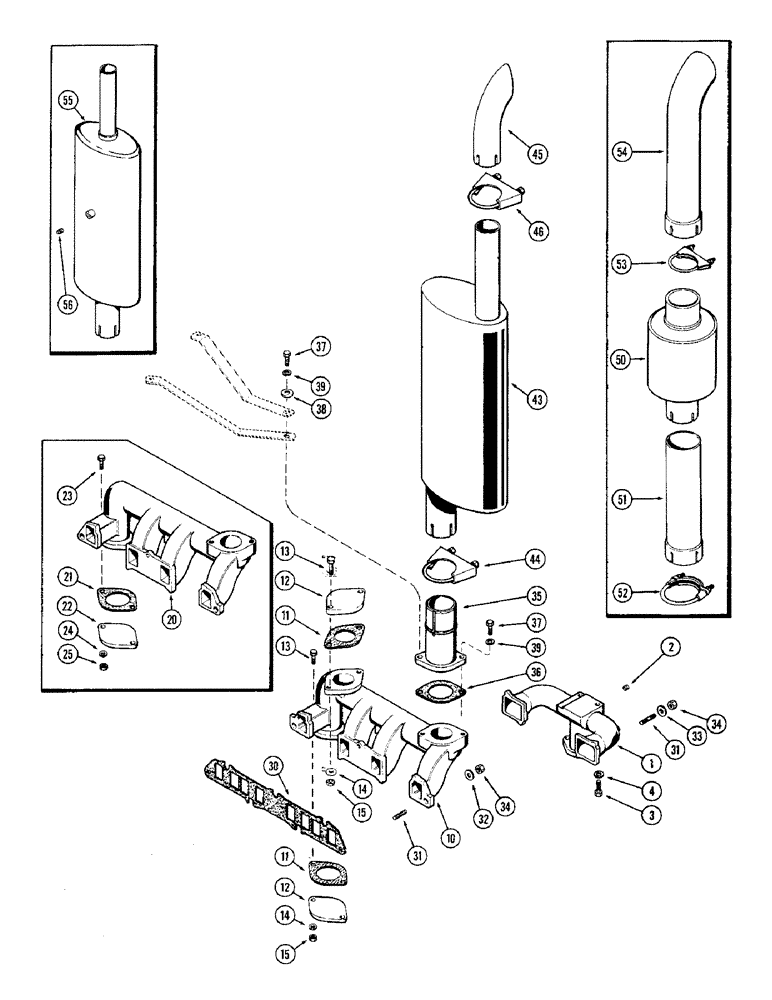

Запчасти Case 580B (054) - MANIFOLDS AND MUFFLER, (159) SPARK IGNITION ENGINE (02) - ENGINE

1

A37004

MANIFOLD

intake

1шт.

2

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

1/4" P.T. sq. hd.

1шт.

3

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

2шт.

4

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

10

A39231

MANIFOLD ASSY

exhaust, 1st used eng s/n 2706224, Inlcudes: Ref. 11 - 15

1шт.

11

G46853

MANIFOLD GASKET

exhaust manifold plate, 1st used eng s/n 2706224

2шт.

12

A38188

PLATE

exhaust manifold, 1st used eng s/n 2706224

2шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1st used eng S/N 2706224 Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

14

195-25

WASHER,3/8"

plain (), 1st used eng s/n 2706224 3/8"

4шт.

15

193-903

NUT - (3/8" N.C. Seez-Pruf), 1st used eng s/n 2706224

4шт.

20

G2042

MANIFOLD

exhaust (Order A39231), used prior to eng s/n 2706224

1шт.

21

G46853

MANIFOLD GASKET

cover, used prior to eng s/n 2706224

1шт.

22

A38188

PLATE

COVER - exhaust opening, used prior to eng s/n 2706224

1шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex., used prior to eng s/n 2706224

2шт.

24

195-25

WASHER,3/8"

13/32 x 13/16 x 1/16", used prior to eng s/n 2706224

2шт.

25

131-903

NUT,3/8"-16

3/8" N.C. hex., brass, used prior to eng s/n 2706224

2шт.

30

A30030

GASKET

intake & exhaust manifolds, used prior to eng s/n 2706224

1шт.

31

A29431

STUD

3/8" N.C. x 1-3/4", used prior to eng s/n 2706224

7шт.

32

A30058

WASHER

13/32 x 7/8 x 1/8", exhaust manifold, used prior to eng s/n 2706224

4шт.

33

195-25

WASHER,3/8"

13/32 x 13/16 x 1/16", intake manifold, used prior to eng s/n 2706224

3шт.

34

131-903

NUT,3/8"-16

3/8" N.C. hex., brass, used prior to eng s/n 2706224

7шт.

35

G2095

FITTING

outTLET - exhaust, muffler, used prior to eng s/n 2706224

1шт.

36

G46853

MANIFOLD GASKET

outlet, used prior to eng s/n 2706224

1шт.

37

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex., used prior to eng s/n 2706224

2шт.

38

195-25

WASHER,3/8"

plain, 13/32 x 13/16 x 1/16", used prior to eng s/n 2706224

4шт.

39

92-6

LOCK WASHER,3/8"

WASHER - lock, , used prior to eng s/n 2706224 3/8"

2шт.

43

A39561

MUFFLER

standard

1шт.

44

A13240

CLAMP,2-5/8" ID

muffler (2-1/2" I.D.), standard

1шт.

45

A39571

PIPE, EXHAUST SYSTEM

extension, standard muffler

1шт.

46

G45410

CLAMP

extension (1-7/8" I.D.), standard muffler

1шт.

50

D45256

MUFFLER,W/ Spark Arrester

spark arresting

1шт.

51

D49170

PIPE - outlet to muffler, spark arresting

1шт.

52

A13240

CLAMP,2-5/8" ID

pipe (2-1/2" I.D.), sparkarresting muffler

1шт.

53

A27115

CLAMP

muffler (2-7/8" I.D.), spark arresting

2шт.

54

D33535

PIPE

EXTENSION - muffler, spark arresting

1шт.

55

D65392

MUFFLER

ASSY. - exhaust, fork lift

1шт.

56

217-76

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

1/4" P.T. sq. hd., fork lift muffler

1шт.
