Запчасти Case 580B (050) - ENGINE COOLING SYSTEM, (159) SPARK IGNITION ENGINE (02) - ENGINE

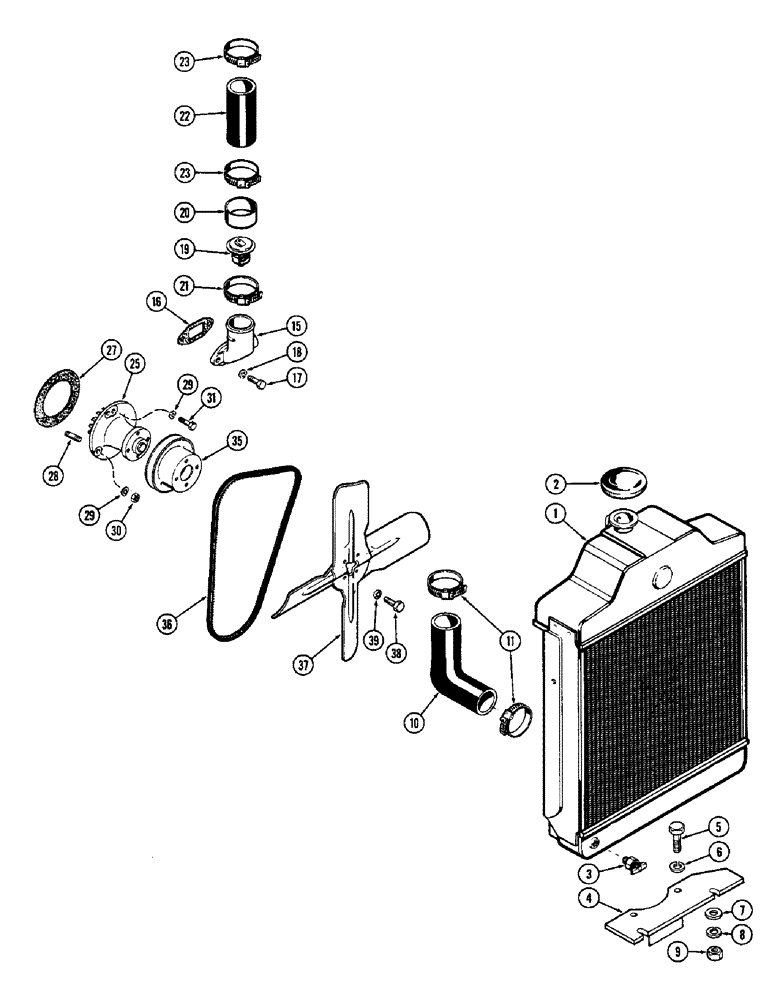

Схема запчастей Case 580B - (050) - ENGINE COOLING SYSTEM, (159) SPARK IGNITION ENGINE (02) - ENGINE
17
10
23
23
25
7
4
1
15
39
20
21
27
35
22
9
3
6
28
19
29
2
30
31
8
18
11
38
37
36
5
29
16

Артикул

Название

Примечание

Количество

1

A39344

RADIATOR

1шт.

2

A39359

CAP

- radiator

1шт.

3

217-103

COCK, DRAIN

DRAIN COCK - radiator

1шт.

4

A35574

BRACKET

- radiator mounting

1шт.

5

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

6

92-8

LOCK WASHER,1/2"

2шт.

7

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

2шт.

8

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

10

G46361

RADIATOR HOSE,1.75" ID x 5.13", SAE 20R4

Lower 1.75" ID x 5.13", SAE 20R4

1шт.

11

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

lower #28, 1.31/2.25 Type F Worm

2шт.

15

G11965

ELBOW

- cylinder, Serial Range: head-radiator

1шт.

16

A30003

GASKET

- elbow

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

19

G11065

CASE

THERMOSTAT - 177 degrees to 182 degress F

1шт.

20

G49625

SUPPORT

- thermostat clamp

1шт.

21

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16 to 3-1/4"

1шт.

22

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper 2.00" ID x 4.88", SAE 20R2

1шт.

23

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

25

A39074

PUMP

ASSY. - water, Inlcudes: Ref. 27

1шт.

27

A38083

GASKET

- pump to timing gear cover

1шт.

28

A29433

STUD

- 3/8" N.C. x 1"

1шт.

29

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

30

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

31

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

31

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex.

1шт.

35

G11339

PULLEY

- fan & pump drive

1шт.

36

A38824

BELT

Fan and Alternator Drive

1шт.

37

G45243

FAN

- cooling

1шт.

38

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

39

92-5

LOCK WASHER,5/16"

4шт.
