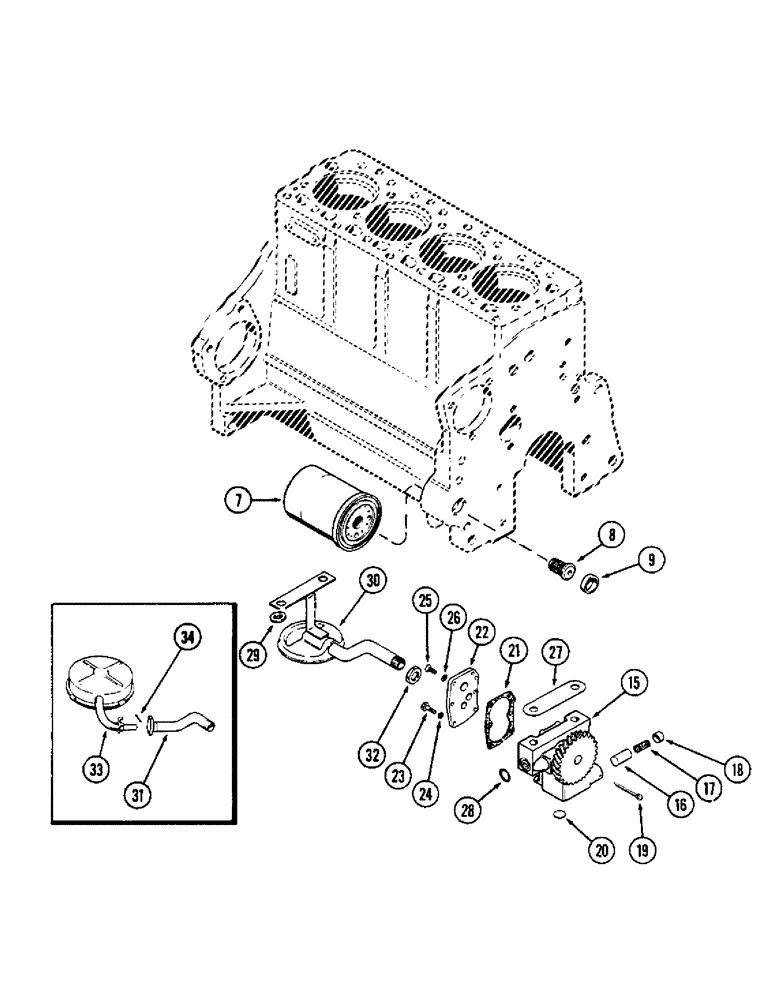

Запчасти Case 580B (030) - OIL FILTER, (188) DIESEL ENGINE (02) - ENGINE

7

A37189

FILTER, ELEMENT

ELEMENT, FILTER engine oil

1шт.

8

A153552

ADAPTER

ADAPTER -, Serial Range: filter-block

1шт.

9

41-1016

PLUG,Cup, 1"

adapter opening, 1" cup type

1шт.

15

A38372

PUMP

ASSY. - oil pump, Includes: Ref. 16 - 26

1шт.

15

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

15

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

16

A155144

VALVE, PRESSURE RELI

- relief, oil pump

1шт.

17

G48500

SPRING

relief valve, oil pump

1шт.

18

A29260

RETAINER

relief spring, oil pump

1шт.

19

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Oil pump 1/8" x 1 1/4"

1шт.

20

A39321

PLUG,Cup, 7/16"

pump body (1/2" cup type) (Replaces A30020), oil

1шт.

21

G46852

GASKET

pump cover, oil

1шт.

22

NSS

NOT SOLD SEPARAT

COVER - pump body, oil

1шт.

23

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

BOLT, , Oil pump Hex, 1/4"-20 x 1 1/4", G5

1шт.

23

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Oil pump Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Oil pump 1/4"

4шт.

25

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

1/4 x 5/8" flat hd., oil pump

2шт.

26

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , Oil pump Ext Csk Tooth, 1/4"

2шт.

27

G11337

SHIM,.002" Thk

SHIM, , Pump to block, Oil .002" Thk

1шт.

27

G11338

SHIM,.005" Thk

SHIM, , Pump to block, Oil .005" Thk

1шт.

28

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32", oil pump

1шт.

29

G49404

WASHER

screen bracket to brg. cap (17/32 x 27/32 x 1/16"), oil pump

2шт.

30

NSS

NOT SOLD SEPARAT

SCREEN - oil pump (1st used eng. ser. no. 2719436) (Order ref. 31, 32, 33 & 34)

1шт.

31

A39035

TUBE

PIPE ASSY. - suction (Used prior to eng. ser. no. 2719436), oil pump

1шт.

32

223-207

LOCK NUT

NUT - pipe tp pump, lock, oil

1шт.

33

A39036

FLOAT

ASSY. - (Includes screen) (Used prior to eng. ser. no. 2719436), oil pump

1шт.

34

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), (Used prior to eng. S/N 2719436), oil pump 1/8" x 1 1/4"

1шт.
