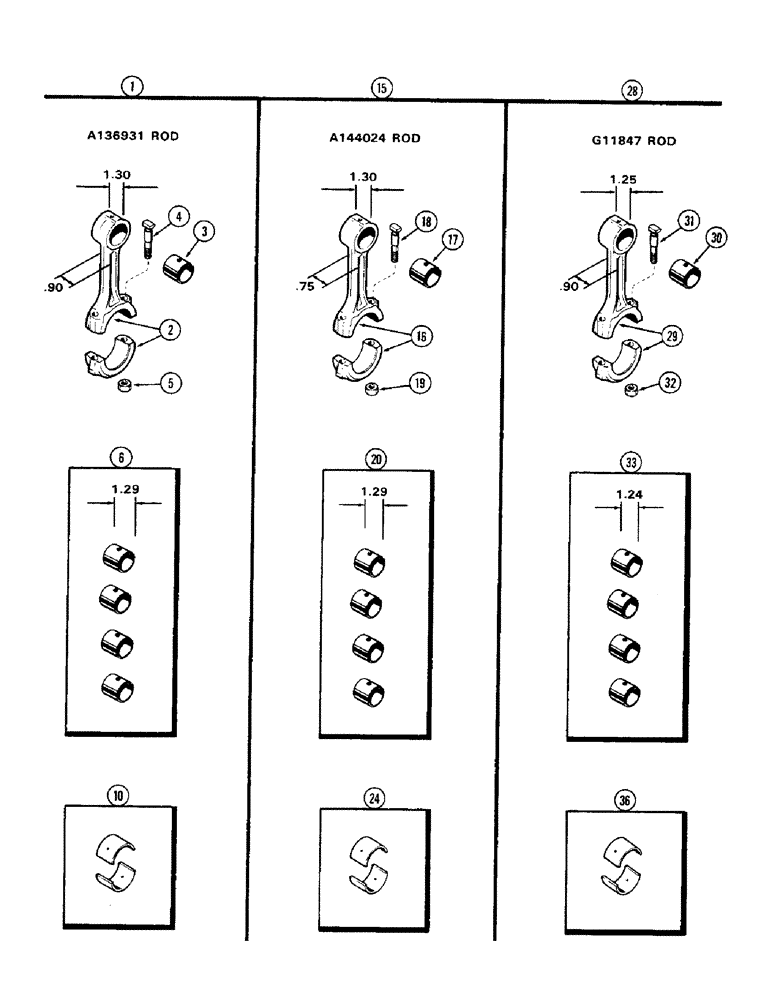

Запчасти Case 580B (029A) - CONNECTING ROD, (188) DIESEL ENGINE, 1ST USED ENG. SER. NO. 2767997 (02) - ENGINE

1

A136931

ROD, CONNECTING

ROD ASSY. - connecting, Includes: Ref. 2 - 5

4шт.

2

NSS

NOT SOLD SEPARAT

ROD & CAP - (.090" "I" section width and 1.30" pin boss width)

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 6) (1-7/32 x 15/16 x 1.29" width)

1шт.

4

G49064

STEP BOLT

BOLT - conn. rod cap

2шт.

5

A51904

NUT

NUT - conn. rod, 3/8" N.F.

2шт.

6

A44083

KIT

BUSHING SET - piston pin (Set of 4)

1шт.

10

A36500

SEAL

LINER SET - conn. rod brg. (Std.) (Set of 2)

4шт.

10

A36501

BEARING LINER

LINER SET - conn. rod brg. (-.002") (Set of 2)

4шт.

10

A36502

LINING

SET - conn. rod brg. (-.010") (Set of 2)

4шт.

10

A36503

BEARING LINER

LINER SET - conn. rod bearing (-.020") (Set of 2)

4шт.

10

A36504

KIT

LINER SET - conn. rod brg. (-.030") (Set of 2)

4шт.

15

A144024

ROD

aSSY. - connecting (Replacement for G11847), used prior s/n 2767997, Includes: Ref. 16 - 19

4шт.

16

NSS

NOT SOLD SEPARAT

ROD & CAP - (0.75" "I" section width and 1.30" pin boss width), used prior s/n 2767997

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20) (1-7/32 x 1-5/16 x 1.29" width), used prior s/n 2767997

1шт.

18

G49064

STEP BOLT

conn. rod cap, used prior s/n 2767997

2шт.

19

A51904

NUT

conn. rod, 3/8" N.F., used prior s/n 2767997

2шт.

20

A44083

KIT

BUSHING SET - piston pin (Set of 4), used prior s/n 2767997

1шт.

24

A36500

SEAL

LINER - conn. rod brg. (Std.) (Set of 2), used prior s/n 2767997

4шт.

24

A36501

BEARING LINER

LINER - conn. rod brg. (-.002") (Set of 2), used prior s/n 2767997

4шт.

24

A36502

LINING

conn. rod brg. (-.010") (Set of 2), used prior s/n 2767997

4шт.

24

A36503

BEARING LINER

LINER - conn. rod brg. (-.020") (Set of 2), used prior s/n 2767997

4шт.

24

A36504

KIT

LINER - conn. rod beg. (-.030") (Set of 2), used prior s/n 2767997

4шт.

28

G18847

ROD ASSY. - connecting (Order A144024), used prior s/n 2767997, Includes: Ref. 29 - 32

4шт.

29

NSS

NOT SOLD SEPARAT

ROD & CAP - (0.90" "I" section width and 1.25" pin boss width), used prior s/n 2767997

1шт.

30

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 33) (1-7/32 x 1-5/16 x 1.24" width), used prior s/n 2767997

1шт.

31

G49064

STEP BOLT

conn. rod cap, used prior s/n 2767997

2шт.

32

A51904

NUT

conn. rod bolt (Replaced A39286), used prior s/n 2767997

2шт.

33

G11953

BUSHING

SET - piston pin (Set of 4), used prior s/n 2767997

1шт.

36

A36500

SEAL

LINER SET - conn. rod brg. (Std.) (Set of 2), used prior s/n 2767997

4шт.

36

A36501

BEARING LINER

LINER SET - conn. rod brg. (-.002") (Set of 2), used prior s/n 2767997

4шт.

36

A36502

LINING

LINER SET - conn. rod brg. (-.010) (Set of 2), used prior s/n 2767997

4шт.

36

A36503

BEARING LINER

LINER SET - conn. rod brg. (-.020") (Set of 2), used prior s/n 2767997

4шт.

36

A36504

KIT

LINER SET - conn. rod brg. (-.030") (Set of 2), used prior s/n 2767997

4шт.
