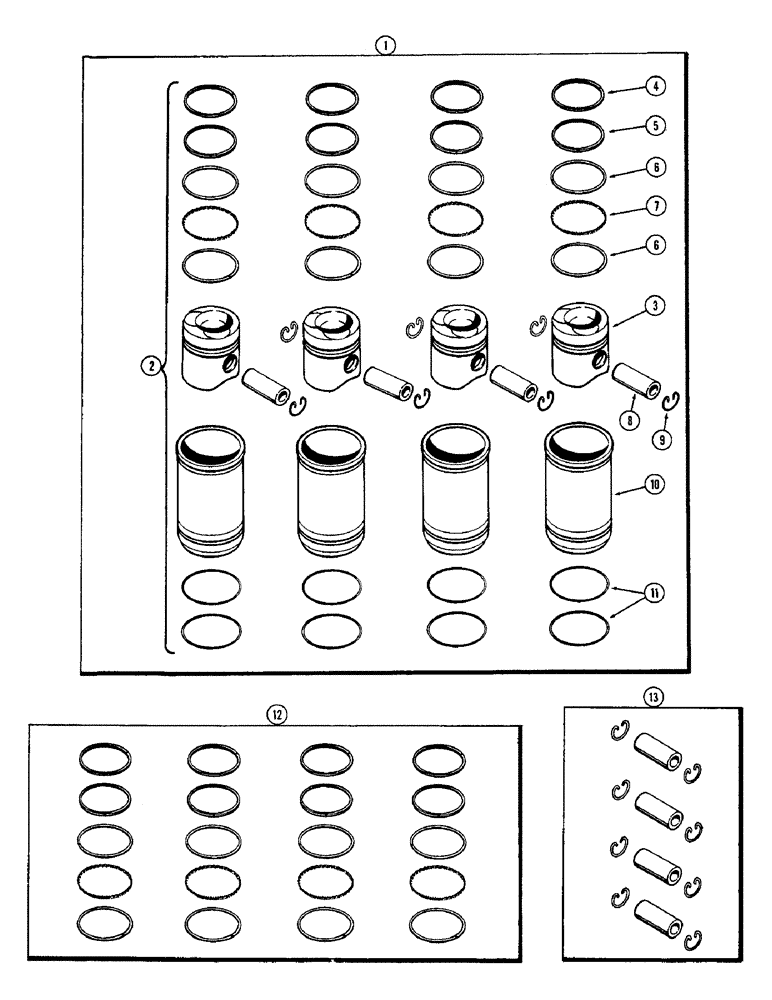

Запчасти Case 580B (028) - PISTONS, RINGS & SLEEVES, (188) DIESEL ENGINE (02) - ENGINE

1

A42813

PISTON

& SLEEVE KIT - (Set of 4), Includes: Ref. 2 - 11

1шт.

2

A42812

SLEEVE

PISTON & SLEEVE KIT - (Set of 1), Includes: Ref. 3 - 11

4шт.

3

A38424

PISTON

1шт.

4

G4819

RING

- compression, 1st groove (See ref. 12)

1шт.

5

G4817

RING

- compression, 2nd groove (See ref. 12)

1шт.

6

G47155

RAIL

RING - oil control, 3rd groove (See ref. 12)

2шт.

7

G47174

SPRING

SPACER - oil control ring (See ref. 12)

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 13)

1шт.

9

G46702

RING, LOCKING

RING - piston pin retaining (See ref. 13)

2шт.

10

A39006

SLEEVE

- piston

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

"O"RING - sleeve sealing

2шт.

12

G37075

RING

KIT - re-ring (Set of 4)

1шт.

13

A35771

KIT

PIN SET - (set of 4 pins & 8 rings)

1шт.
