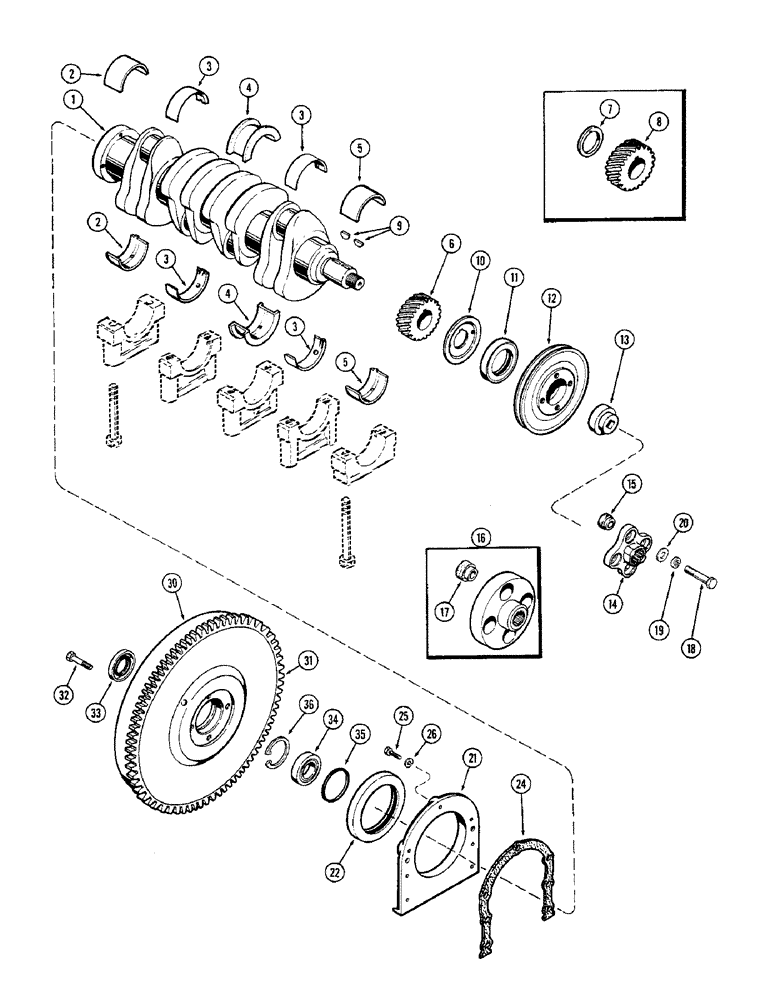

Запчасти Case 580B (024) - CRANKSHAFT AND FLYWHEEL, (188) DIESEL ENGINE, MECHANICAL SHUTTLE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A39146
CRANKSHAFT
1шт.
2
A36495
BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W
LINER - main bearing, rear (Std.)
1шт.
2
A36496
LINING
LINER - main bearing, rear (.002" undersize)
1шт.
2
A36497
BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W
LINER - main bearing, rear (.010" undersize)
1шт.
2
A36498
KIT
LINER - main bearing, rear (.020" undersize)
1шт.
2
A36499
BEARING LINER
LINER - main bearing, rear (.030" undersize)
1шт.
3
A36485
LINING
LINER - main bearing, intermediate (Std.)
2шт.
3
A36486
LINING
LINER - main bearing, intermediate (.002" undersize)
2шт.
3
A36487
BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W
LINER - main bearing, intermediate (.010" undersize)
2шт.
3
A36488
CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"
LINER - main bearing, intermediate (.020" undersize)
2шт.
3
A36489
LINING
LINER - main bearing, intermediate (.030" undersize)
2шт.
3
A36490
BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W
LINER - main bearing, center (Std.)
1шт.
A36490 liner - On page 25 this part should be labeled as Ref #4.
1шт.
4
A36491
LINING
LINERS - main bearing, center (.002" undersize)
1шт.
4
A36492
BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W
LINER - main bearing, center (.010" undersize)
1шт.
4
A36493
BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W
LINER - main beairng, center (.020" undersize)
1шт.
4
A36494
LINING
LINER - main beairng, center (.030" undersize)
1шт.
5
A36480
BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W
LINER - main bearing, front (Std.)
1шт.
5
A36481
LINING
LINER - main bearing, front (.002" undersize)
1шт.
5
A36482
BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W
LINER - main bearing, front (.010" undersize)
1шт.
5
A36483
LINING
LINER - main bearing, front (.020" undersize)
1шт.
5
A36484
LINING
LINER - main bearing, front (.030" undersize)
1шт.
6
A39288
GEAR
- crankshaft (24 teeth) (1-5/32" wide) (Replaces A29294 spacer & A29263 gear)
1шт.
7
A29294
BUSHING
SPACER - thrust, crankshaft (Use w/A29263 gear only)
1шт.
8
A29263
GEAR
- crankshaft (24 teeth) (1-1/16" wide) (Order A39288)
1шт.
10
A29259
SLINGER
- oil
1шт.
11
A39110
OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk
- oil, crankshaft front (2 x 3 x 1/2")
1шт.
A39110 oil seal - Wear ring repair kit for this part is A155893.
1шт.
12
A50962
PULLEY
- fan drive (Replaces G11342 & A39931)
1шт.
13
A35673
NUT
-, Serial Range: pulley-crankshaft
1шт.
14
A51885
COUPLING, BREAK AWAY
COUPLING - pump drive flexible (Replaces A35558), Includes: Ref. 15
1шт.
15
A45216
BUSHING
- coupling
4шт.
16
D140524
FLEXIBLE COUPLING,13T
COUPLING - pump drive flexible (Order A51885), Includes: Ref. 17
1шт.
17
G36905
BLOCK
BUSHING - coupling
4шт.
18
13-724
BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5
Hex, 7/16"-14 x 1 1/2, G5
4шт.
19
92-7
LOCK WASHER,7/16"
4шт.
20
A30013
WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk
- 29/64 x 3/4 x 16 ga.
4шт.
21
A38390
RETAINER
- oil seal, rear
1шт.
22
A51339
OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk
- oil, rear (4 x 5 x 1/2") (Replaces A39111)
1шт.
A51339 rear oil seal - Wear ring repair kit for this part is A49851.
1шт.
24
A39188
GASKET
- retainer
1шт.
25
26-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 8
- (1/4 x 3/4" N.C. hex.)
4шт.
25
26-416
BOLT,Hex, 1/4" - 20 x 1", Gr 8
- (1/4 x 1" N.C. hex.)
3шт.
26
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
7шт.
30
A144358
FLYWHEEL
ASSY. - engine (Replaces A37214), Includes: Ref. 31
1шт.
31
G11710
GEAR
- ring (135 teeth)
1шт.
32
A37216
BOLT
- 7/16 x 2" N.F. hex., drilled
4шт.
33
A138295
OIL SEAL
- oil, flywheel (1-3/16 2-5/32 x 1/4") (Replaces A37647)
1шт.
34
T17389
BALL BEARING,1.1811" ID x 2.1654" OD x 0.5118"
BEARING - flywheel
1шт.
35
A37646
O-RING,2.237" ID x 2.443" OD x 0.103"
RING - seal, flywheel (2-15/64 x 2-11/32 x 3/32")
1шт.
36
49482
SNAP RING,2.125", Int, #212
Ring, Snap, , brg 2.125", Int, #212
1шт.
Выбрано товаров: 52
