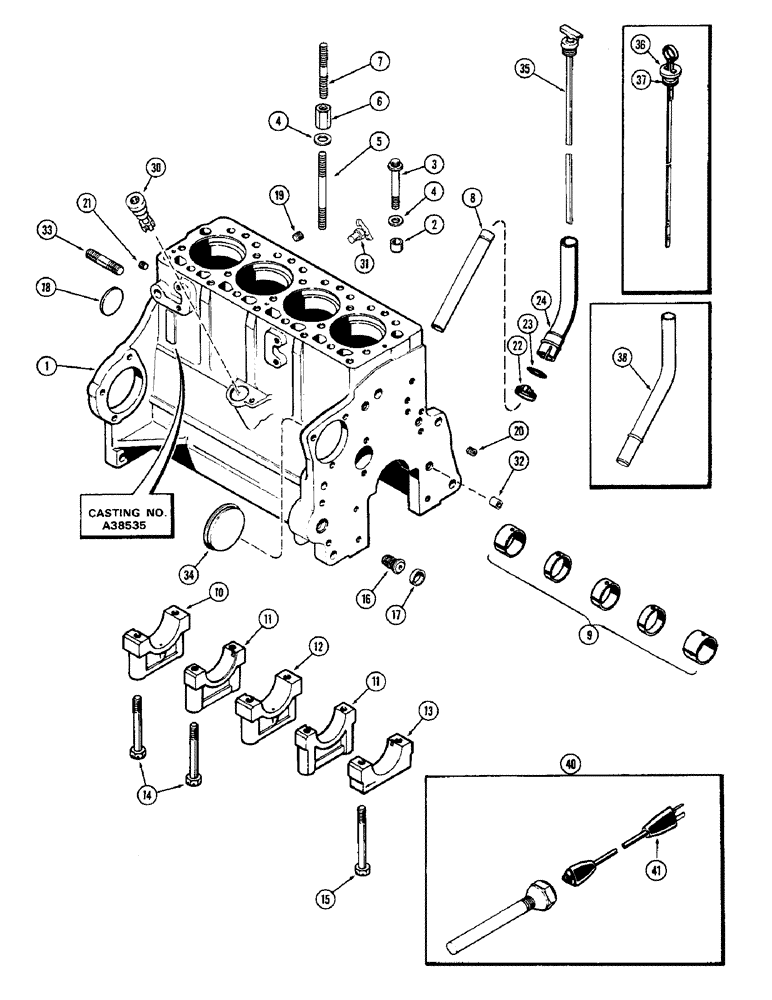

Запчасти Case 580B (022) - CYLINDER BLOCK, (188) DSL ENG, 1ST USED ENG SN 2711005 W/ CYLINDER HEAD BOLTS (02) - ENGINE

A42814

CYLINDER BLOCK

BLOCK ASSY. - cylinder, short (Incl. crankshaft & brgs., conn. rods & brgs., camshaft & bushings, piston assy., & timing gears) (Casting #A38535), Includes: Ref. 1 - 33

1шт.

1

A41597

SKELETON ENGINE

BLOCK ASSY. - cylinder, stripped (Casting #A38535), Includes: Ref. 2 - 24

1шт.

2

G49608

RING

- dowel, cylinder, Serial Range: head-block

2шт.

3

A39047

12 PT SCREW

cyl. head (1/2 x 3-1/2" N.C., 12 pt. hd.)

4шт.

3

A39048

12 PT SCREW

cyl. head (1/2 x 5-1/8" N.C. 12 pt. hd.)

11шт.

3

A39049

12 PT SCREW

cyl. head (1/2 x 5-5/8" N.C. 12 pt. hd.)

2шт.

4

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

cyl. head bolts (1/2 x 7/8 x 1/8")

19шт.

5

A36902

STUD

cyl. head (1/2" N.C. x 5-5/8")

2шт.

6

A51114

NUT

head studs (1/2" N.C. x 3/8" N.C.) (Repl. A39256)

2шт.

7

A51271

STUD

cyl. head cover (3/8" N.C. x 3-3/4") (Replaced A39255)

2шт.

8

A37149

TUBE

oil gauge & filler (See ref. 38)

1шт.

9

A42746

CAM

BUSHING SET - camshaft

1шт.

10

A51057

CAP

main bearing, rear (Replaces A38385)

1шт.

11

A51055

CAP

main bearing, intermediate (Replaces G2128)

2шт.

12

A51056

CAP

main bearing, center (Replaces G2127)

1шт.

13

A51054

CAP

- main bearing, front (Replaces G2126)

1шт.

14

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- 1/2 x 4-1/2" N.C. hex., slotted

8шт.

15

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

- 1/2 x 5-1/8" N.C. hex. slotted (Cap & oil pump)

2шт.

16

A153552

ADAPTER

- oil filter

1шт.

17

41-1016

PLUG,Cup, 1"

adapter hole, 1" cup type

1шт.

18

A39241

PLUG,Exp, 2.12" dia

camshaft hole (2-1/8" expansion) (Replaces A30033)

1шт.

19

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

3/8" P.T., socket head

1шт.

20

G49070

PLUG

front oil gallery, 1/4" P.T. drilled

1шт.

21

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Rear oil gallery Hex Soc, 1/4"-18 NPTF

1шт.

22

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

extension (1-3/16 to 1-3/4")

1шт.

23

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

(1-1/8 x 1-3/8 x 1/8")

1шт.

24

A37407

TUBE

EXTENSION - filler & dipstick

1шт.

30

A38942

DRIVE ASSY.

TACHOMETER

1шт.

31

A23656

COCK, DRAIN

VALVE ASSY. - drain

1шт.

32

A29442

RING

dowel, timing gear, Serial Range: cover-block

2шт.

33

A29333

STUD

- 5/8" N.C./N.F. x 3"

2шт.

Accepts 92-10 washer (subs to 492-11062) and 25-1110 nut (subs to 425-1110).

1шт.

34

A29268

PLUG

COVER - timing gear chamber hole, 3-1/4"

1шт.

35

A136379

DIPSTICK

engine oil level (w/o "O" rings)

1шт.

36

A37406

DIPSTICK

engine oil level (w/"O"rings), Includes: Ref. 37

1шт.

37

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

(3/4 x 1 x 1/8")

2шт.

38

NSS

NOT SOLD SEPARAT

- oil filter & dipstick (12-3/8" long) (Long one piece tube used in production instead of short tube & extension) (Can be ordered separate if required)

1шт.

40

A44815

HEATER

ASSY. - cylinder block (Replaces A40637)

1шт.

41

A44814

ELECTRIC CABLE

CORD - 12" (Replaces A40477), cyl block heater

1шт.
