Запчасти Case 580B (020) - VALVE MECHANISM AND CAMSHAFT, (188) DIESEL ENGINE (02) - ENGINE

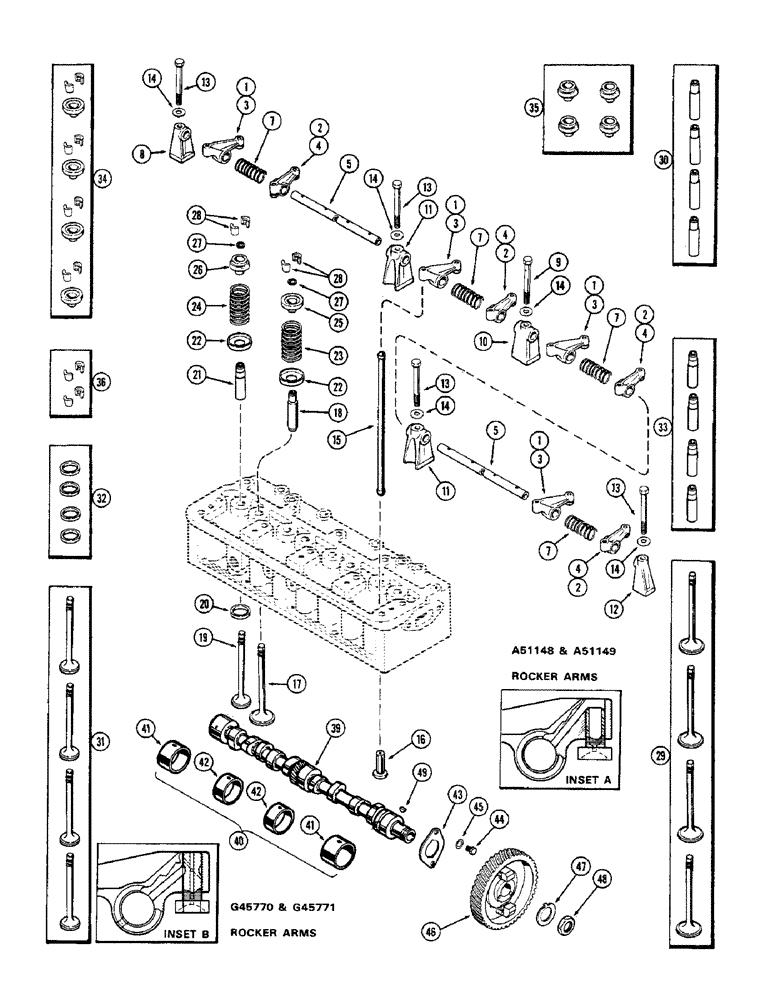

Схема запчастей Case 580B - (020) - VALVE MECHANISM AND CAMSHAFT, (188) DIESEL ENGINE (02) - ENGINE
4
35
34
17
9
14
4
28
2
12
3
27
2
20
2
25
46
43
42
32
22
4
48
13
14
27
39
14
26
3
15
3
47
31
4
19
7
2
5
11
44
1
13
36
24
13
33
3
41
18
8
49
5
30
41
10
1
14
40
29
11
1
23
28
14
45
21
7
42
7
13
7
16
1
22

Артикул

Название

Примечание

Количество

1

A51149

ARM

ASSY. - rocker, left hand, w/adj. screw (1st used eng. ser. no. 2715764) (See inset A)

4шт.

2

A51148

ARM

ASSY. - rocker, right hand, w/adj. screw (1st used eng. ser. no. 2715764) (See inset A)

4шт.

3

G45771

ARM

ASSY. - rocker, L.H. w/adj. screw (Used prior to eng. ser. no. 2715764) (See inset B)

4шт.

4

G45770

ARM

ASSY. - rocker, R.H., w/adj. screw (Used prior to eng. ser. no. 2715764) (See inset B)

4шт.

5

A38181

SHAFT

- rocker arm

2шт.

7

G48501

SPRING

- rocker shaft

4шт.

8

A36615

BRACKET

- rocker arm, rear

1шт.

9

G49067

BOLT

- rear bracket, drilled

1шт.

10

G2101

BRACKET

- rocker arm, center

1шт.

11

A51084

BRACKET

- rocker arm, intermediate (Replaced G2102)

2шт.

12

G2100

BRACKET

- rocker arm, front

1шт.

13

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex.

4шт.

14

A30058

WASHER

- bracket bolt

5шт.

15

G47079

ROD

- push

8шт.

16

G47077

TAPPET

LIFTER - push rod

8шт.

17

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 27)

4шт.

18

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 28)

4шт.

19

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 29)

4шт.

20

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 30)

4шт.

21

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 31)

4шт.

22

G49065

SEAT

- valve spring

8шт.

23

A30025

SPRING

- valve

8шт.

24

NSS

NOT SOLD SEPARAT

RETAINER - valve springs (Order ref. 32)

8шт.

25

A41726

VALVE

S - intake (Set of 4)

1шт.

26

NSS

NOT SOLD SEPARAT

LOCK - retainers (Order ref. 33)

16шт.

27

G46851

SEAL

- rubber, valve stem

8шт.

28

G11945

GUIDE

S - intake valve stem (Set of 4)

1шт.

29

A41727

VALVE

S - exhaust (Set of 4)

1шт.

30

A43048

KIT

INSERTS - valve seat (Set of 4) (Replaces G11986)

1шт.

31

G11946

GUIDE

S - exhaust valve stem (Set of 4)

1шт.

32

G11927

RETAINER

S - valve spring (Set of 4 w/locks)

2шт.

33

G11929

LOCK

S - retainer (Set of 4)

4шт.

39

A39013

CAM

SHAFT

1шт.

40

A42746

CAM

BUSHING KIT - camshaft, Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, front & rear (1-7/32" wide)

2шт.

42

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, intermediate (1/2" wide)

3шт.

43

A29290

PLATE

- camshaft thrust

1шт.

44

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

BOLT - thrust plate

2шт.

45

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

46

A38931

GEAR

- camshaft

1шт.

47

A29438

LOCK NUT

LOCK - camshaft nut

1шт.

48

A30063

NUT

- camshaft

1шт.

49

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

Выбрано товаров: 43
