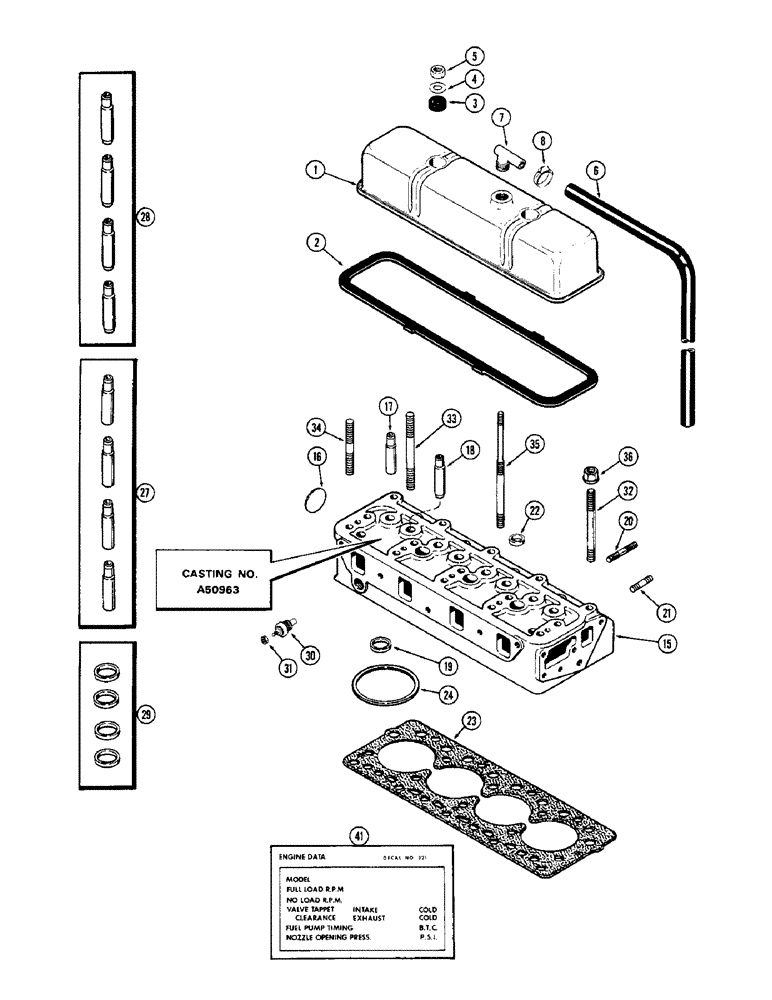

Запчасти Case 580B (019A) - CYLINDER HEAD AND COVER, (188) DIESEL ENGINE, USED PRIOR TO ENG SN 2711005 (02) - ENGINE

1

A36815

COVER

ASSY. - cylinder head

1шт.

2

A43030

GASKET,3.05mm Thk

- cover

1шт.

3

A142098

GROMMET

- cover (Replaces G46867)

2шт.

4

G49400

WASHER

- cover nut

2шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

6

A39570

HOSE

- breather, neoprene

1шт.

7

A9155

90 ELBOW

- breather

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16"

1шт.

15

A37856

CYLINDER HEAD

HEAD ASSY. - cylinder (Casting #A50963), Includes: Ref. 16 - 22

1шт.

A37856 head assy - Description should read "casting #A150384". This part subs to A166029 which is a bare head other than inserts, guides and cup plugs.

1шт.

16

A39242

PLUG

- rear, 1-3/4" expansion (Replaces A30036)

1шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 27)

4шт.

18

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 28)

4шт.

19

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 29)

4шт.

20

A39129

STUD

- manifold clamp, 3/8" N.C. x 2-1/16"

6шт.

21

A29431

STUD

- manifold, 3/8" N.C. x 1-3/4"

4шт.

22

41-1016

PLUG,Cup, 1"

- 1" cup type

3шт.

23

A38640

- cylinder head (Order A39279)

1шт.

24

A38639

RING

- fire (Std. w/orange mark) (Order A39279 gasket)

4шт.

24

A38651

RING

- fire (Oversize w/black mark)

4шт.

27

G11946

GUIDE

S - exhaust valve stem (Set of 4)

1шт.

28

G11945

GUIDE

S - intake valve stem (Set of 4)

1шт.

29

A43048

KIT

INSERTS - exhaust valve seat (Set of 4) (Replaces G11986)

1шт.

30

A21462

SENDER UNIT

UNIT - engine temperature sending

1шт.

31

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex., Keps

1шт.

32

A36902

STUD

- 1/2 N.C. x 5-5/8"

11шт.

33

A36905

STUD

- 1/2" N.C. x 6-1/8"

2шт.

34

A36904

STUD

- 1/2" N.C. x 4"

4шт.

35

A36903

STUD

-, Serial Range: head-cover

2шт.

36

A37030

FLANGE NUT

- 1/2" N.C., flanges

19шт.

41

321-1374

DECAL

- engine data (Power shuttle)

1шт.

41

321-1371

DECAL - engine data (Mech. shuttle)

1шт.
