Запчасти Case 580B (018) - CYLINDER HEAD AND COVER, (188) DIESEL ENGINE, 1ST USED ENG SN 2711005 (02) - ENGINE

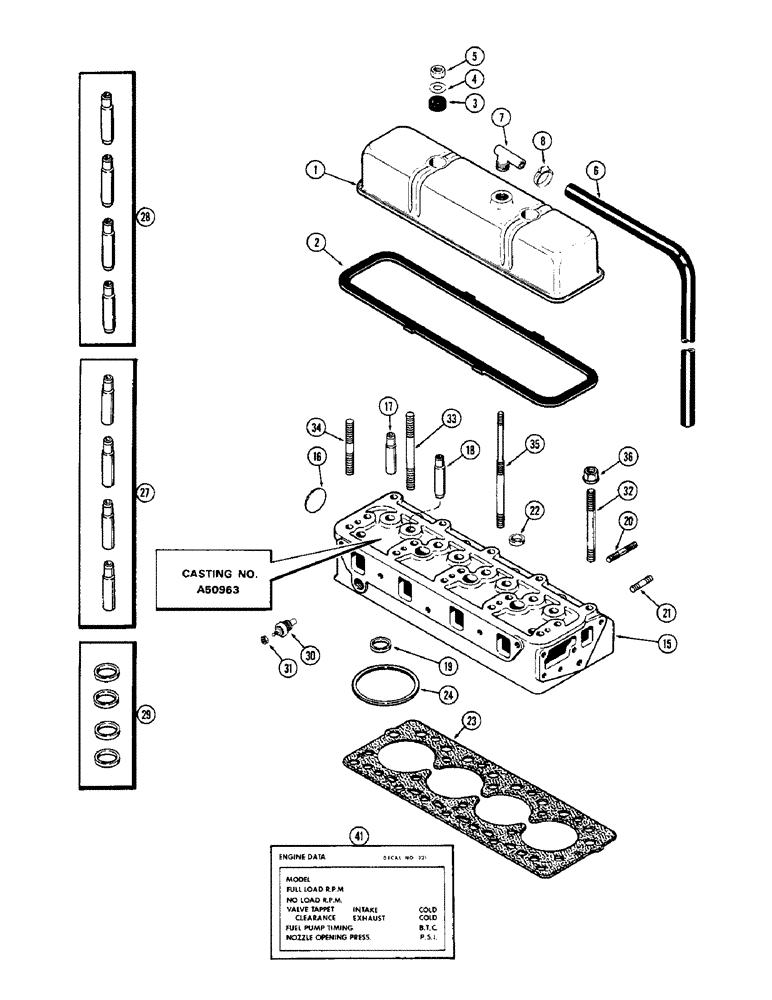

Схема запчастей Case 580B - (018) - CYLINDER HEAD AND COVER, (188) DIESEL ENGINE, 1ST USED ENG SN 2711005 (02) - ENGINE
29
15
34
24
16
33
27
36
1
30
4
8
19
32
2
41
21
23
22
18
28
31
5
20
6
35
17
3
7

Артикул

Название

Примечание

Количество

1

A36815

COVER

ASSY. - cylinder head

1шт.

2

A43030

GASKET,3.05mm Thk

- cover

1шт.

3

A142098

GROMMET

- cover (Replaces G46867)

2шт.

4

G49400

WASHER

- cover nut

2шт.

5

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

6

A39570

HOSE

- breather, neoprene

1шт.

7

A9155

90 ELBOW

- breather

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16"

1шт.

15

A37858

HEAD ASSY. - cylinder (Casting #A50963) (See note), Includes: Ref. 16 - 22

1шт.

16

A39242

PLUG

- rear, 1-3/4" expansion (Replaces A30036)

1шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 27)

4шт.

18

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 28)

4шт.

19

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 29)

4шт.

20

A39129

STUD

- manifold clamp, 3/8" N.C. x 2-1/16"

6шт.

21

A29431

STUD

- manifold, 3/8" N.C. x 1-3/4"

4шт.

22

41-1016

PLUG,Cup, 1"

- 1" cup type

3шт.

23

A39279

GASKET

- cylinder, Serial Range: head-block

1шт.

27

G11946

GUIDE

S - exhaust valve stem (Set of 4)

1шт.

28

G11945

GUIDE

S - intake valve stem (Set of 4)

1шт.

29

A43048

KIT

INSERTS - exhaust valve seat (Set of 4) (Replaces G11986)

1шт.

30

A21462

SENDER UNIT

UNIT - sending, engine temperature

1шт.

31

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex., Keps

1шт.

32

A39047

12 PT SCREW

BOLT - cylinder head (1/2 x 3-1/2" N.C., 12 pt. hd.)

4шт.

32

A39048

12 PT SCREW

BOLT - cylinder head (1/2 x 5-1/8" N.C., 12 pt. hd.)

11шт.

32

A39049

12 PT SCREW

BOLT - cylinder head (1/2 x 5-5/8" N.C., 12 pt. hd.)

2шт.

33

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- cyl. head bolts (1/2 x 7/8 x 1/8")

17шт.

34

A36902

STUD

- cylinder head (1/2" N.C. x 5-5/8")

2шт.

35

A51114

NUT

- heat studs (1/2" N.C. x 3/8" N.C.) (Replaces A39256)

2шт.

36

A51271

STUD

- cover (3/8" N.C. x 3-3/4") (Replaces A39255)

2шт.

37

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- (1/2 x 7/8 x 1/8")

2шт.

41

321-2396

DECAL

- engine data (Power shuttle) (1st used engine ser. no. 2726393)

1шт.

41

321-1374

DECAL

- engine data (Power shuttle) (Used prior to engine ser. no. 2726393)

1шт.

41

321-2555

DECAL

- engine data (Mech. shuttle) (1st used engine ser. no. 2717963)

1шт.

41

321-1371

DECAL - engine data (Mech. shuttle) (Used prior to engine ser. no. 2717963)

1шт.

Выбрано товаров: 34
