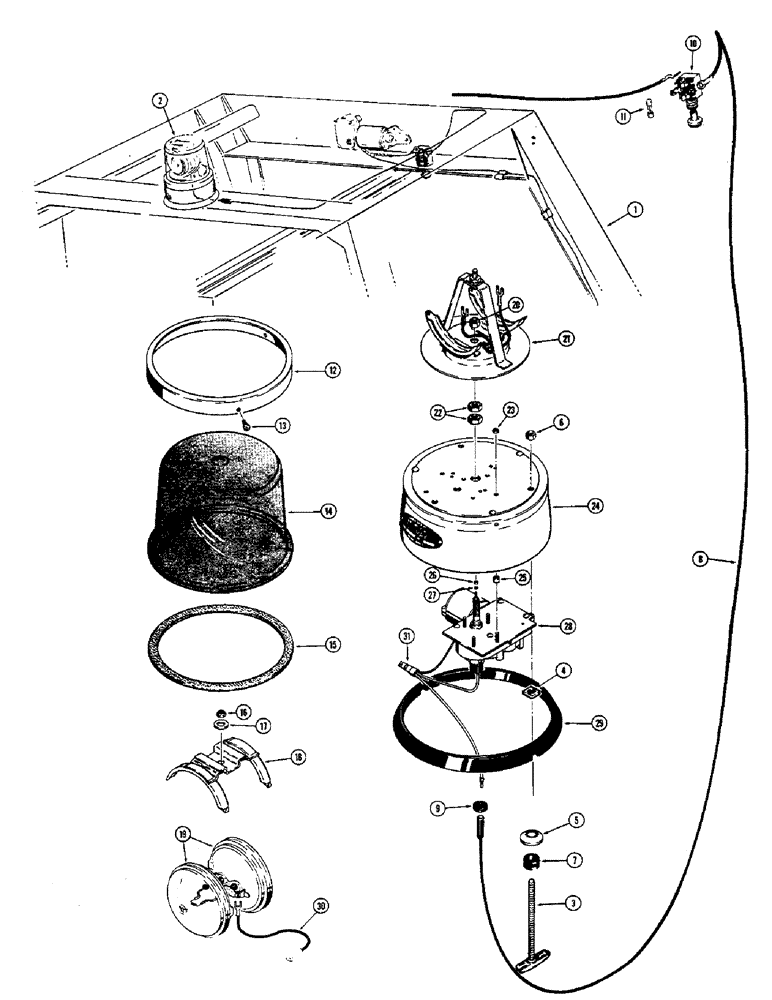

Запчасти Case 580B (258) - ROTATING BEACON (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB - operators (See Figures 238 thru 256)

1шт.

2

F93158

LAMP

ROTATING BEACON ATT. - 360 degrees amber, Includes: Ref. 3 - 31

1шт.

L35092

KIT

ATTACHING PARTS - beacon lamp, Includes: Ref. 3 - 11

1шт.

3

L35148

BOLT

- toggle (#10-24)

3шт.

4

129-47

NUT

- square (#10-24)

3шт.

5

L35146

LOCK WASHER

WASHER - lock (#10)

3шт.

6

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

3шт.

7

F13115

GROMMET

- rubber, beacon mounting

3шт.

8

L35145

HARNESS

WIRE - beacon to switch (8 ft.)

1шт.

9

A43211

GROMMET

- rubber, beacon wire

1шт.

10

L16099

SWITCH

ASSY. - beacon

1шт.

11

NSS

NOT SOLD SEPARAT

FUSE - beacon switch

1шт.

NSS

NOT SOLD SEPARAT

LAMP ASSY. - rotating beacon (Order F93158), Includes: Ref. 12 - 31

1шт.

12

L32219

RING - clamp, lens

1шт.

13

168-70

DRIVE SCREW,Type U, Rnd Hd, #8 x 3/8"

- self-tapping (#8-32 x 3/8")

3шт.

14

L32221

LENS

- amber

1шт.

15

L32220

GASKET - lens

1шт.

16

131-204

NUT,1/4"-20

NUT - lock (1/4" N.C.)

1шт.

17

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

18

L32222

BRACKET - retainer, sealed beam light

1шт.

19

D66204

LAMP

LIGHT - sealed beam

2шт.

20

129-303

NUT,3/8"-16, G5, LH

- hex. (3/8" N.F.) (L.H. thrd.)

1шт.

21

L32224

PLATE - mounting. light

1шт.

22

L32225

NUT

- special brass

2шт.

23

129-29

NUT - lock (#8-32 hex.)

4шт.

24

L32226

BASE

- motor & lens

1шт.

25

L32228

SPACER

-, Serial Range: motor-base

1шт.

26

129-3

NUT,#4-40

2шт.

27

192-3

LOCK WASHER

- lock (#4)

1шт.

28

D65187

MOTOR

- electric, 12 volt

1шт.

29

L32227

GASKET

- base

1шт.

30

L35144

WIRE - ground

1шт.

31

T29401

NUT

- twist-on, wire

1шт.
