Запчасти Case 580B (256) - OPERATORS CAB, GLASS AND MOULDINGS (09) - CHASSIS/ATTACHMENTS

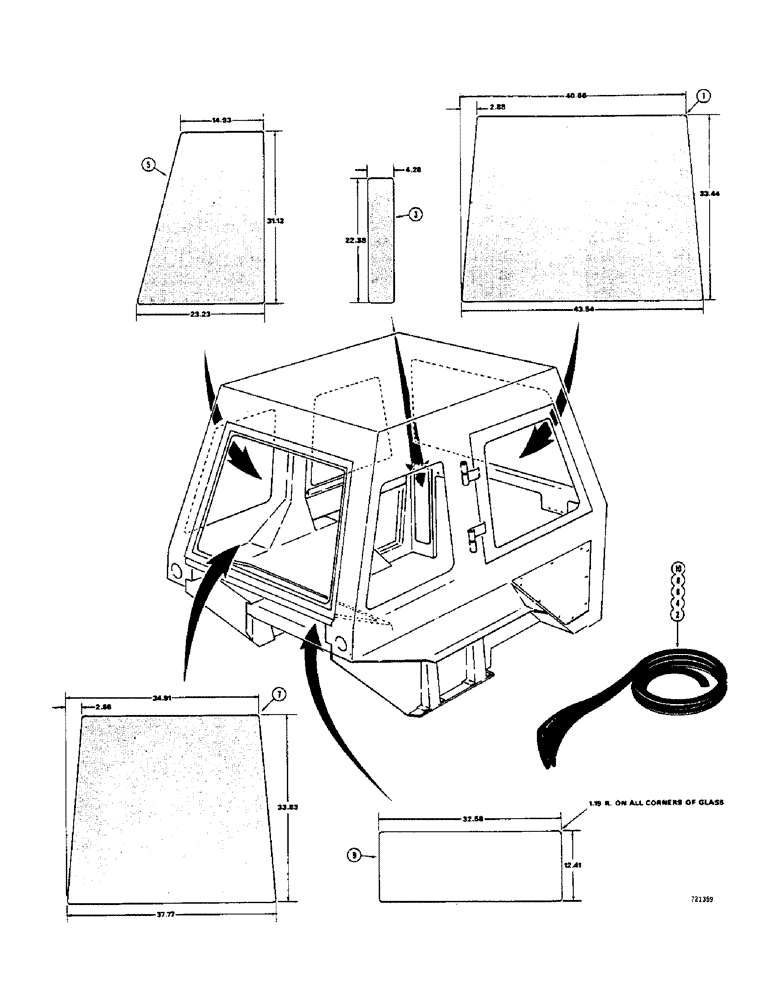

Схема запчастей Case 580B - (256) - OPERATORS CAB, GLASS AND MOULDINGS (09) - CHASSIS/ATTACHMENTS
3
2
5
9
8
1
4
6
10
7

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

GLASS - windshield

1шт.

2

NSS

NOT SOLD SEPARAT

MOULDING - glass, windshield (For repairs order A42677)

1шт.

3

NSS

NOT SOLD SEPARAT

GLASS - window, lower L.H. front

1шт.

4

NSS

NOT SOLD SEPARAT

MOULDING - glass, lower L.H. front (For repairs order A42677)

1шт.

5

NSS

NOT SOLD SEPARAT

GLASS - windows and door, side

4шт.

6

NSS

NOT SOLD SEPARAT

MOULDING - glass, side windows and door (For repairs order A42677)

4шт.

7

NSS

NOT SOLD SEPARAT

GLASS - window, rear hinged

1шт.

8

NSS

NOT SOLD SEPARAT

MOULDING - glass, rear window (For repairs order A42677)

1шт.

9

NSS

NOT SOLD SEPARAT

GLASS - window, closure panel

1шт.

10

NSS

NOT SOLD SEPARAT

MOULDING - glass, closure panel (For repairs order A42677)

1шт.

A42677

MOLDING

MOULDING - glass (50' roll)

1шт.

Выбрано товаров: 11
