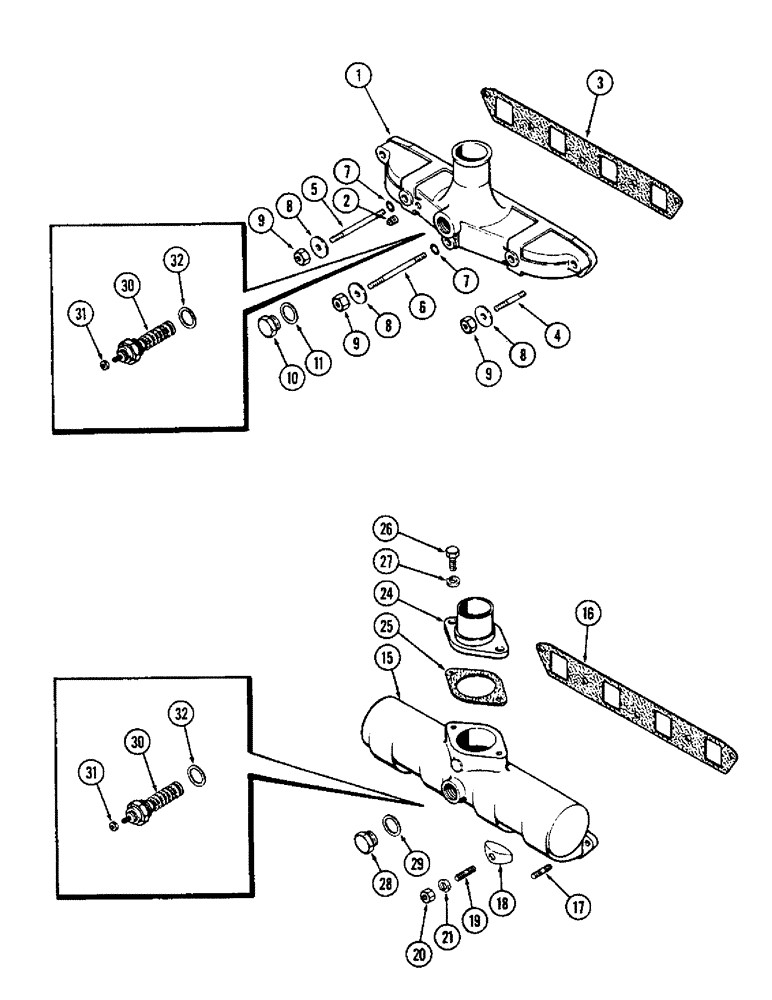

Запчасти Case 580B (015A) - INTAKE MANIFOLD (ALUMINUM), (188) DSL ENG, 1ST USED TRAC SN 8725448 (02) - ENGINE

1

A51876

MANIFOLD

- intake (Aluminum) (Replaces A51501), Includes: Ref. 2

1шт.

2

222-11

FITTING,3/8"-24 Inv Fl x 1/8" NPT Fem

PLUG - pipe, 1/8" sq. hd.

1шт.

3

G46871

GASKET

STUD -, Serial Range: manifold-head

1шт.

4

A35175

STUD

- manifold to head (3/8" N.C. x 2-7/16")

2шт.

5

A51499

STUD

- manifold to head (3/8" N.C. x 4-5/16")

2шт.

6

A51500

STUD

- manifold to head (3/8" N.C. x 5-5/16")

1шт.

7

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O"RING - manifold stud (3/8 x 9/16 x 3/32")

3шт.

8

D41740

WASHER

- plain, manifold stud (25/64 x 1 x 7/64")

5шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

5шт.

10

A20917

PLUG

- manifold (Heater hole)

1шт.

11

A20916

MANIFOLD GASKET

GASKET - plug

1шт.

15

A35782

MANIFOLD

- intake (Cast) used prior trac s/n 8725448

1шт.

16

G46871

GASKET

- manifold to head, intake (Cast) used prior trac s/n 8725448

1шт.

17

A29431

STUD

- manifold to head (3/8" N.C. x 1-3/4"), intake (Cast) used prior trac s/n 8725448

2шт.

18

A35028

CLAMP

- manifold to head, intake (Cast) used prior trac s/n 8725448

3шт.

19

A39129

STUD

- manifold clamp (3/8" N.C. x 2-1/16"), intake (Cast) used prior trac s/n 8725448

3шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., manifold intake (Cast) used prior trac s/n 8725448

5шт.

21

92-6

LOCK WASHER,3/8"

WASHER - , manifold, intake (Cast) used prior trac s/n 8725448 3/8"

5шт.

24

A37098

FLANGE

- inlet, air cleaner tube, intake manifold (Cast) used prior trac s/n 8725448

1шт.

25

D22670

GASKET

- flange, intake manifold (Cast) used prior trac s/n 8725448

1шт.

26

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Manifold, intake (Cast) used prior trac S/N 8725448 Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

27

92-6

LOCK WASHER,3/8"

WASHER - , manifold, intake (Cast) used prior trac s/n 8725448 3/8"

2шт.

28

A20917

PLUG

- manifold (Heater hole), intake (Cast) used prior trac s/n 8725448

1шт.

29

A20916

MANIFOLD GASKET

GASKET - plug, intake (Cast) used prior trac s/n 8725448

1шт.

30

A37775

HEATER

ASSY. - intake manifold

1шт.

31

129-503

NUT,1/4"-20, Brass

Manifold heater 1/4"-20, Brass

1шт.

32

A20916

MANIFOLD GASKET

GASKET -, Serial Range: heater-manifold

1шт.
