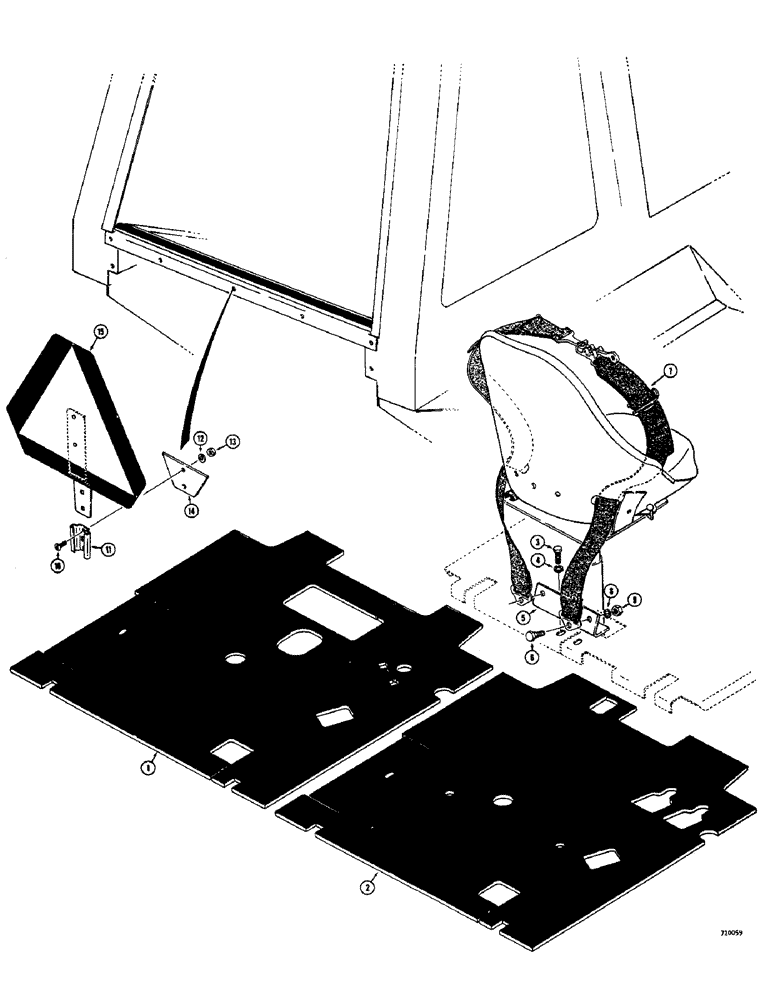

Запчасти Case 580B (246) - OPERATORS CAB, FLOOR MATS, SEAT BELTS AND SMV EMBLEM, FLOOR MATS (09) - CHASSIS/ATTACHMENTS

1

F42162

floor (Dry clutch and torque converter models only)

1шт.

2

F42163

floor (Hydrostatic models only)

1шт.

D59157

floot (35 Backhoe)

1шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Seat belts - must be used w/ F93139 ROPS unit or F93163 ROPS cab unit Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Seat belts - must be used w/ F93139 ROPS unit or F93163 ROPS cab unit 3/8"

2шт.

5

F42235

BRACKET

mounting, seat belt, must be used w/ F93139 rops unit or F93163 rops cab unit

1шт.

6

F42236

STEP BOLT

shoulder (Special), seat belts - must be used w/ F93139 rops unit or F93163 rops cab unit

2шт.

7

L48907

BELT

SAFETY BELT, Must be used w/ F93139 ROPS unit or F93163 ROPS cab unit

1шт.

8

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Seat belts - must be used w/ F93139 ROPS unit or F93163 ROPS cab unit 7/16"

2шт.

9

425-117

NUT,7/16"-20, G5

hex. (7/16"-20 N.F.), seat belts - must be used w/ F93139 rops unit or F93163 rops cab unit

2шт.

10

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

BOLT - round head, square shoulder (5/16"-18 N.C. x 3/4"), SMV emblem

2шт.

11

A8179

SOCKET

mounting, SMV emblem

1шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , SMV emblem 5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

SMV emblem 5/16"-18, G5

2шт.

14

F42260

socket mounting, SMV emblem

1шт.

15

A59450

WARNING SIGN

EMBLEM ASSEMBLY - SMV

1шт.
