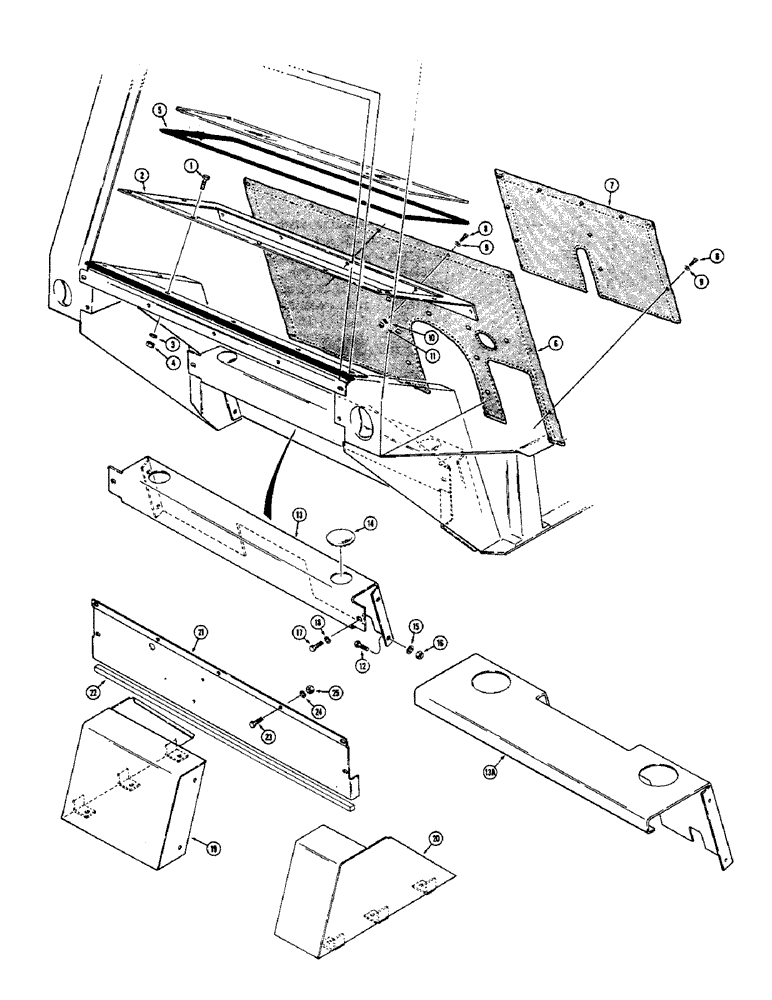

Запчасти Case 580B (244) - OPERATORS CAB, CAB MOUNTING AND CLOSURE PARTS (SPECIAL) (09) - CHASSIS/ATTACHMENTS

1

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

2

F42137

window closure

1шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

4

9635082

NUT,5/16" - 18, Gr 5

3шт.

5

F42139

MOULDING - window, closure panel (For repairs order A42677)

1шт.

6

F93176

closure, rear (3 point hitch and loader models only) See F93177, ref. no. 7

1шт.

7

F93177

closure, rear (Used in addition to F93176 for loader only models)

1шт.

8

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

11шт.

9

195-102

WASHER,1/4"

flat 1/4"

11шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

11шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

12

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8"-16 N.C. x 3/4", closure parts used w/ 3 point hitch, loader only or loader-counterweight models

4шт.

13

F42045

MEMBER

CROSS - rear, backhoe (Before backhoe SN 5251151), closure parts used w/ 3 point hitch, loader only or loader-counterweight models

1шт.

13a

F42783

CROSS- rear, backhoe (Backhoe SN 5251151 & after), closure parts used w/ 3 point hitch, loader only or loader-counterweight models

1шт.

14

205-72

HOLE PLUG BUTTON,3"

button, crossmember, closure parts used w/ 3 point hitch, loader only or loader-counterweight models

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Closure parts used w/ 3 point hitch, loader only or loader-counterweight models 3/8"

4шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Closure parts used w/ 3 point hitch, loader only or loader-counterweight models 3/8"-16, G5

2шт.

17

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Closure parts used w/ 3 point hitch, loader only or loader-counterweight models Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Closure parts used w/ 3 point hitch, loader only or loader-counterweight models 3/8"

2шт.

19

F93134

control tower, R.H. (Before backhoe SN 5251151 only), parts (used w/ loader models only)

1шт.

20

F93135

control tower, L.H. (Before backhoe SN 5251151 only), parts (used w/ loader models only)

1шт.

21

F42134

PANEL

closure, rear (Rear wiper mounting), parts (used w/ loader-backhoe models only)

1шт.

22

F42136

SEAL

rear closure, parts (used w/ loader-backhoe models only)

1шт.

23

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Closure parts (used w/ loader-backhoe models only)

7шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Closure parts (used w/ loader-backhoe models only) 5/16"

7шт.

25

9635082

NUT,5/16" - 18, Gr 5

Closure parts (used w/ loader-backhoe models only) 5/16"-18, G5

3шт.
