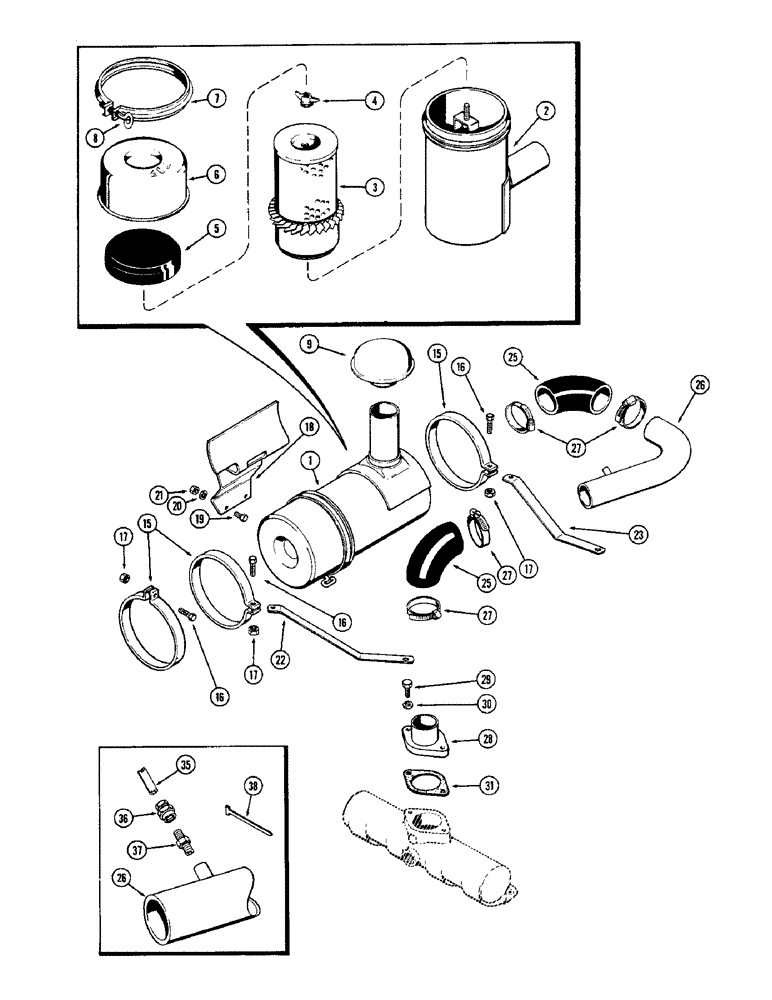

Запчасти Case 580B (014) - AIR CLEANER, (188) DIESEL ENGINE, USED PRIOR TO TRAC. SER. NO 8725448 W/ CAST IRON MANIFOLD (02) - ENGINE

1

A39346

AIR CLEANER

ASSY., Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

3

A42274

AIR FILTER

ELEMENT - cleaner

1шт.

4

F91761

WING NUT

- element retaining, wing

1шт.

5

F22312

BAFFLE

- rubber

1шт.

6

F91760

CUP

- air cleaner access

1шт.

7

F84999

CLAMP,168.28mm

ASSY. - cup retaining

1шт.

8

25-224

SQUARE NUT,Sq, 1/4"-20

- 1/4" N.C. hex.

1шт.

9

A61276

AIR CLEANER

PRE-CLEANER ASSY.

1шт.

15

A39347

BAND

- air cleaner mounting

3шт.

16

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- 1/4 x 1-3/4" N.C. hex.

3шт.

17

131-48

LOCK NUT,1/4"-20, GB

NUT - 1/4" N.C. hex., lock

3шт.

18

A39348

BRACKET

- air cleaner mounting

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

22

A39350

STRAP

- air cleaner support

1шт.

23

A39607

STRAP

- air cleaner support

1шт.

25

A39353

LARGE HOSE

HOSE - air cleaner

2шт.

26

A39351

TUBE

- air, Serial Range: cleaner-manifold

1шт.

27

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16" to 3-1/4"

4шт.

28

A37098

FLANGE

- manifold inlet

1шт.

29

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

30

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

31

D22670

GASKET

- flange

1шт.

35

A39358

TUBE

- safety filter to indicator on panel

1шт.

36

222-5130

FITTING,7/16"-24 x 1/8" NPT Fem

COUPLING - tube to filter, 1/8" P.T. for 1/4" tube

1шт.

37

D36264

FITTING

FILTER - safety, air restriction

1шт.

38

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - vacuum tube to tachometer cable

1шт.
