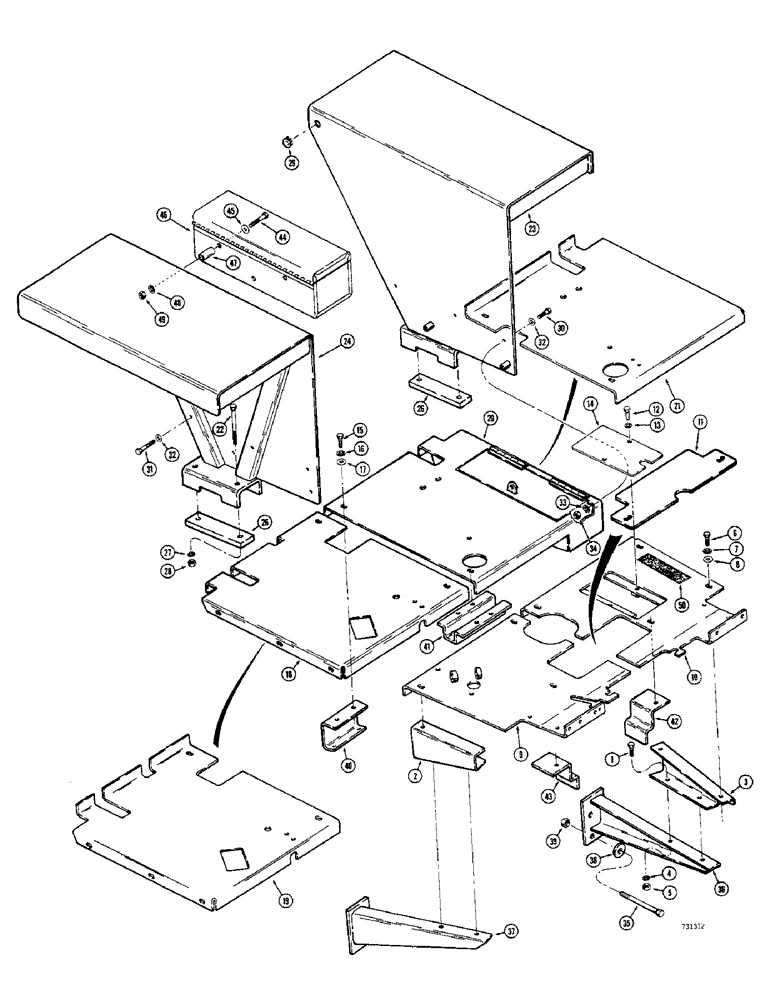

Запчасти Case 580B (234) - FENDERS AND FLOOR PLATES (09) - CHASSIS/ATTACHMENTS

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Not used with cab) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

2

D52997

SUPPORT

- floor plate, R.H. (Not used with cab)

1шт.

3

D52998

SUPPORT - floor plate, L.H. (Not used with cab)

1шт.

4

92-6

LOCK WASHER,3/8"

WASHER - lock, , not used w/cab 3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 N.C.) (Not used with cab)

4шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7шт.

7

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

7шт.

8

195-25

WASHER,3/8"

- plain () 3/8"

7шт.

9

D55023

PLATE ASSY.

PLATE - floor, R.H. front

1шт.

10

D55022

PLATE

- floor, L.H. front

1шт.

11

D55305

COVER - floor plate, center

1шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

13

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

14

D55028

PLATE

- battery access

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

17

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

18

D49714

PLATE

- floor, R.H. rear (Before loader ser. no. 5205025)

1шт.

19

D55461

PLATE

- floor, R.H. rear (Loader S/N 5205025 & after)

1шт.

20

D50691

PLATE

- floor, L.H. rear (Before loader ser. no. 5205025)

1шт.

21

D55462

PLATE ASSY.

PLATE - floor, L.H. rear (Loader S/N 5205025 & after)

1шт.

22

13-8140

BOLT,Hex, 1/2" - 13 x 8-3/4", Gr 5

HHCS - 1/2"-13 N.C. x 8-3/4"

4шт.

23

D49697

FENDER

- tractor, L.H. (When stock is exhausted, order F93265 fender)

1шт.

23

F93265

FENDER

- tractor, L.H.

1шт.

24

D49696

FENDER

- tractor, R.H. (When stock is exhausted, order 1-F93264 fender, 1-L42732 spacer, 1-13-632 bolt & 2-25-106 nuts)

1шт.

24

F63264

FENDER - tractor, R.H.

1шт.

25

L42723

SPACER

- fender (Not shown)

1шт.

26

D50703

BAR

- fender mounting

2шт.

27

92-8

LOCK WASHER,1/2"

4шт.

28

25-108

NUT,1/2"-13, G5

- hex. (1/2"-13 N.C.)

4шт.

29

205-32

PLUG - button, fender 3/4"

2шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

31

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8 x 2" N.C. hex.

4шт.

32

195-25

WASHER,3/8"

- plain () 3/8"

10шт.

33

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

6шт.

34

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 N.C.)

6шт.

35

113-39

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

HHCS - 5/8"-11 N.C. x 8"

4шт.

36

D50285

PLATE - support, L.H. (Used with drawbar models only)

1шт.

37

D50286

PLATE - support, R.H. (Used with drawbar models only)

1шт.

38

A28084

WASHER

- special

4шт.

39

129-563

NUT,5/8"-11, G8

- hex. (5/8"-11 N.C.)

4шт.

40

D52994

BRACKET

SUPPORT - floor plate, rear

1шт.

41

D52993

SUPPORT - floor plate, center

1шт.

42

D52991

SUPPORT

- floor plate, L.H. front

1шт.

43

D52992

BRACKET

SUPPORT - floor plate, R.H. front

1шт.

44

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

45

195-525

WASHER,3/8", SAE

3шт.

46

D55624

TOOL

BOX - tool, fender mounted

1шт.

47

D40893

BUSHING

SPACER - tool, Serial Range: box-fender

3шт.

48

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

49

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

50

D55216

PAD,2" x 9"

PAD - anit-skid

2шт.
