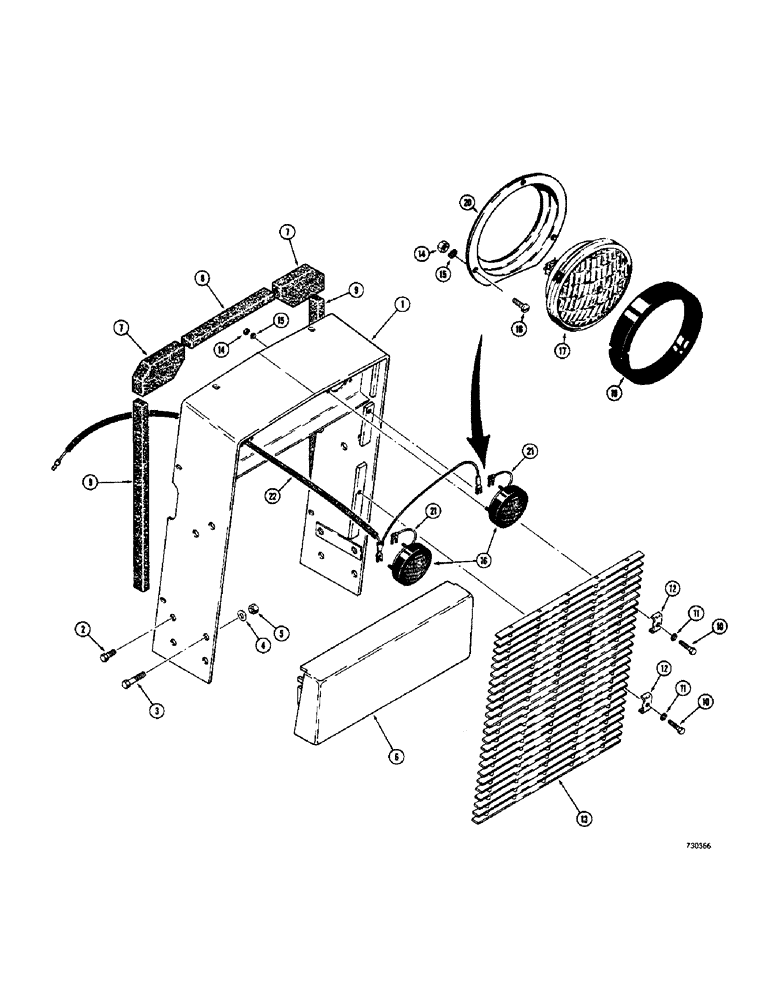

Запчасти Case 580B (232) - RADIATOR WRAPPER, GRILLE AND HEAD LIGHTS (09) - CHASSIS/ATTACHMENTS

1

D49663

WRAPPER - radiator (Gas models only) (Before loader serial no. 5228999)

1шт.

1

D55737

SUPPORT

WRAPPER - radiator (Gas models only) (Loader serial no. 5228999 thru serial no. 8709714)

1шт.

1

D57302

SUPPORT

WRAPPER - radiator (Gas models only) (Trac. serial no. 8709715 and after)

1шт.

1

D49652

WRAPPER - radiator (Diesel models only) (Before loader serial no. 5228999)

1шт.

1

D55736

SUPPORT

WRAPPER - radiator (Diesel models only) (Loader serial. no. 5228999) thru trac. serial no. 8709714)

1шт.

1

D57303

SUPPORT

WRAPPER - radiator (Diesel models only) (Trac. serial no. 8709715 and after)

1шт.

2

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

3

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

4

95-10

WASHER,5/8"

- plain () 5/8"

4шт.

5

230-4117

LOCK NUT,7/16"-14, GA

NUT - hex., lock (5/8"-11 N.C.)

4шт.

6

D31071

GUARD - equipment pump (Gas models only)

1шт.

6

D31082

GUARD ASSY.

GUARD - equipment pump (Diesel models only)

1шт.

7

G46278

BAFFLE

- radiator, top

2шт.

8

G46280

BAFFLE

- radiator, top center

1шт.

9

D31270

INSULATOR

BAFFLE - radiator, side

2шт.

10

113-273

BOLT

HHCS - 3/8"-16 N.C. x 1-1/2"

4шт.

11

192-43

WASHER,3/8"

LOCK, 3/8"

4шт.

12

L13218

CLIP

- grille retainer

4шт.

13

D49649

GRILLE ASSY

GRILLE - radiator (Used with D49663 and D49652 wrappers only)

1шт.

D55506 grille - Should also include part nbr D57302 wrapper in "used with" information.

1шт.

13

D55506

GRILLE

- radiator (Used with D55737, D55736 and D57303 wrappers only)

1шт.

14

129-17

NUT,Hex, #10 - 24

NUT - hex. ( N.C.) #10-24

6шт.

15

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

16

D30243

LAMP

LIGHT ASSEMBLY - front head (See Figure 121C) (Before trac. serial no. 8709715)

2шт.

17

D33182

LAMP

LIGHTS - front head (Sealed beam) (Trac. serial no. 8709715 and after)

2шт.

18

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- mach., pan hd. (#10-24 N.C. x 1/2") (Used with D33182 light only)

6шт.

19

D57287

RETAINER

- light (Used with D33182 light only)

2шт.

20

D57288

RING

- light retainer (Use with D33182 light only)

2шт.

21

A11768

ELECTRICAL WIRE

CABLE - grond, headlight

2шт.

22

D39242

ELECTRICAL WIRE

CABLE - connecting, headlight

1шт.
