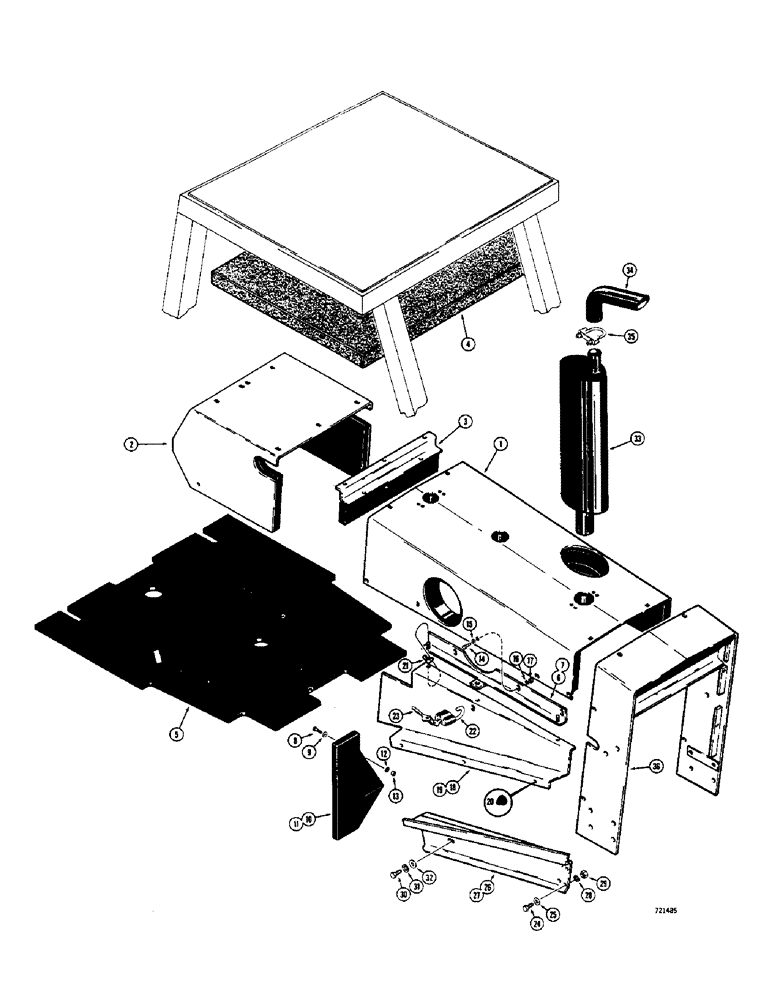

Запчасти Case 580B (231A) - NOISE CONTROL COMPONENTS (09) - CHASSIS/ATTACHMENTS

1

D55199

HOOD - special, noise control

1шт.

2

D55184

SUPPORT

WRAPPER - special, noise control (Use 1-D55504 wrapper, 1-D59896 pad & 1-D59897 pad)

1шт.

3

D55188

PLATE - baffle, noise control

1шт.

4

D55195

PADDING - roll bar

1шт.

5

D59157

FLOOR MAT - operator compartment (Replaces D55200)

1шт.

6

D55697

HANGER - side panel, L.H.

1шт.

7

D55695

HANGER - side panel, R.H.

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

9

195-521

WASHER,5/16", SAE

- plain (5/16")

2шт.

10

D56011

PLATE - noise deflection, L.H.

1шт.

11

D56010

PLATE - noise deflection, R.H.

1шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16"-18 N.C.)

2шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

15

195-525

WASHER,3/8", SAE

16шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

18

D55182

PANEL - side, L.H. noise control

1шт.

19

D55179

PANEL - side, R.H. noise control

1шт.

20

D55964

GROMMET - side, Serial Range: panel-frame

12шт.

21

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

4шт.

22

R29554

LOCK

PANLOCK - panel lockup

2шт.

23

R29555

KEY

- padlock

2шт.

24

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

25

195-521

WASHER,5/16", SAE

- plain (5/16")

4шт.

26

D56303

PANEL - noise control, L.H. lower

1шт.

27

D56302

PANEL - noise control, R.H. lower

1шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

29

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

NUT - Tinnerman (5/16"-18 N.C.)

4шт.

30

113-602

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

31

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

32

195-541

WASHER,5/8", SAE

- plain (5/8")

2шт.

33

D55532

MUFFLER

- engine, special

1шт.

34

D53101

PIPE

EXTENSION - exhaust

1шт.

35

G45410

CLAMP

-, Serial Range: extension-muffler

1шт.

36

D57855

WRAPPER - rad. guard (Used w/D55199 special hood only)

1шт.
