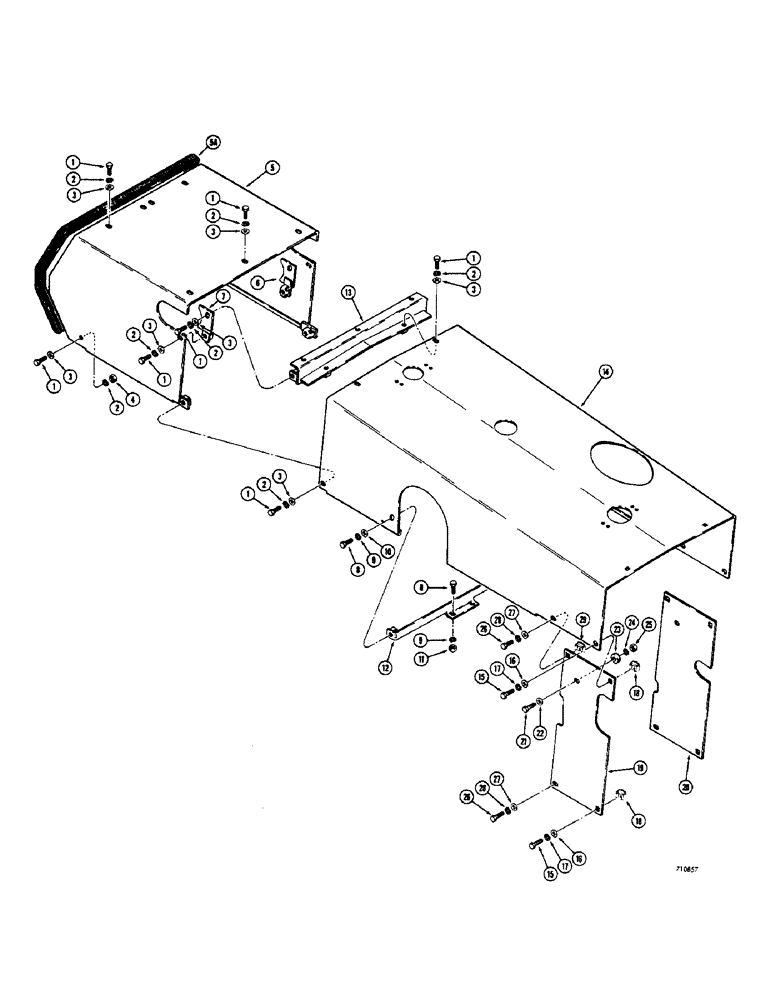

Запчасти Case 580B (230) - HOOD AND RELATED PARTS (09) - CHASSIS/ATTACHMENTS

1

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

15шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

15шт.

3

195-525

WASHER,3/8", SAE

15шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 N.C.)

2шт.

5

D49657

WRAPPER - instrument panel (Use 1-D54002 plate, 1-D54003 plate & 1-D55504 wrapper)

1шт.

5a

D52412

RUBBER STRIP

TRIM - instrument panel (50-5/16" lg.) (Order D52812)

1шт.

5a

D52812

RUBBER STRIP

TRIM - instrument panel (83" lg.) (Replaces D52412)

1шт.

6

D54002

COVER PLATE

PLATE - cover, L.H. (Replaces D49645)

1шт.

7

D54003

COVER PLATE

PLATE - cover, R.H. (Replaces D49646)

1шт.

8

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

195-525

WASHER,3/8", SAE

2шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 N.C.)

2шт.

12

D53036

STRAP

- hood support, center

1шт.

13

D49644

BRACKET

- hood support, top (Order 1-D55499, 1-D54002 & 1-D54003)

1шт.

Use J-nuts with this bracket order 5 of 131-634.

1шт.

14

D49653

HOOD - engine (Diesel models only)

1шт.

14

D49662

HOOD - engine (Gas models only)

1шт.

15

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

16

195-521

WASHER,5/16", SAE

- plain (5/16") Zinc plated

6шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

18

131-113

SPRING NUT,J, Ret, 5/16"-18

(Before loader S/N 5228999) J, Ret, 5/16"-18

1шт.

19

D55739

PANEL - side, R.H. (Diesel models only) (Loader serial no. 5228999 and afer)

1шт.

19

D49656

PANEL ASSY.

PANEL - side, R.H. (Diesel models only)

1шт.

19

D49659

BUSHING

PANEL - side, R.H. (Gas models only) (Before loader serial no. 5228999)

1шт.

19

D55738

PANEL - side, R.H. (Gas models only) (Loader serial no. 5228999 and after)

1шт.

20

D49655

PANEL ASSY.

PANEL - side, L.H. (Diesel models only)

1шт.

20

D49658

PANEL - side, L.H. (Gas models only)

1шт.

21

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

22

195-521

WASHER,5/16", SAE

- plain (5/16") Zinc plated

2шт.

23

D31074

SPACER

- panel

2шт.

24

92-5

LOCK WASHER,5/16"

2шт.

25

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16"-18 N.C.)

2шт.

26

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

27

195-521

WASHER,5/16", SAE

- plain (5/16") Zinc plated

4шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

29

131-113

SPRING NUT,J, Ret, 5/16"-18

2шт.
