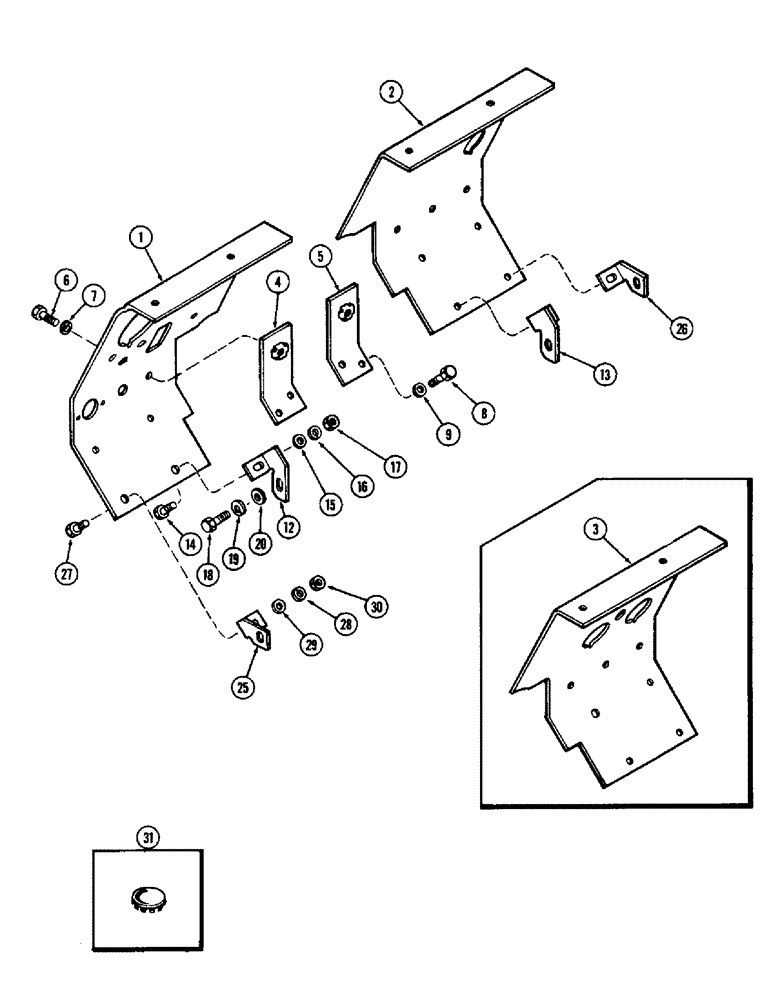

Запчасти Case 580B (228) - INSTRUMENT PANEL (09) - CHASSIS/ATTACHMENTS

1

A39788

PANEL ASSY. instrument, R.H.

1шт.

2

A39789

PANEL ASSY. - instrument, L.H. (Mech. shuttle)

1шт.

3

A39793

PANEL ASSY. - instrument, L.H. (Power shuttle)

1шт.

4

A39792

BRACKET ASSY. - panel to steering column, R.H.

1шт.

5

A39801

BRACKET ASSY. - panel to steering column, L.H.

1шт.

6

113-269

BOLT

- 3/8 x 7/8" N.C. hex.

2шт.

7

192-43

WASHER,3/8"

LOCK, 3/8"

2шт.

8

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

12

A39418

BRACKET - panel support, R.H.

1шт.

13

A39419

BRACKET

- panel support, L.H.

1шт.

14

113-269

BOLT

- 3/8 x 7/8" N.C. hex.

2шт.

15

195-104

WASHER,3/8"

- 7/16 x 1 x 1/1^"

2шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

18

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

20

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

25

A39420

BRACKET

- panel to hood, R.H.

1шт.

26

A39421

BRACKET

- panel to hood, L.H.

1шт.

27

113-269

BOLT

- 3/8 x 7/8" N.C. hex.

2шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

29

195-104

WASHER,3/8"

- 7/16 x 1 x 1/16"

2шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

31

A39890

PLUG,9/32"

- button (0.281" dia.) (Plated)

1шт.

31

A39891

PLUG - button (0.390" dia,) (Plated) 25/64"

3шт.

31

A39892

PLUG,33/64"

- button (0.515" dia.) (Plated)

1шт.

31

A39893

HOLE PLUG BUTTON,11/16"

PLUG - button (0.688" dia.) (Plated)

2шт.

31

A39894

HOLE PLUG BUTTON,23/32

PLUG - button (0.719" dia.) (Plated)

1шт.

31

353-411

PLUG,Dome, 1.000" hole, Nylon

Horn button hole Dome, 1.000" hole, Nylon

1шт.
