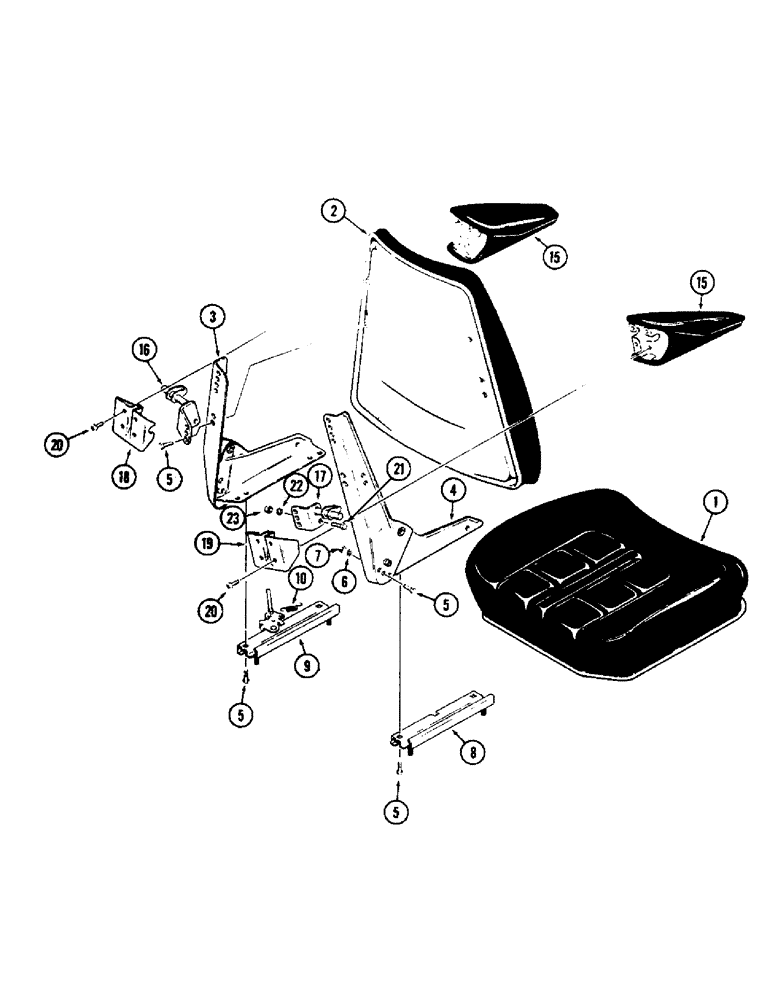

Запчасти Case 580B (227A) - SEAT ASSEMBLIES, D56409 OPERATOR SEAT, (IDENTIFIED BY BLOCK PATTERN ON SEAT & BACKREST CUSHIONS) (09) - CHASSIS/ATTACHMENTS

D56409

SEAT

ASSY. - operator, Includes: Ref. 1 - 10

1шт.

1

D56883

SEAT

CUSHION

1шт.

2

D56884

BACKREST

CUSHION

1шт.

3

D56885

RAIL ASSY.

SUPPORT - seat, L.H.

1шт.

4

D56886

RAIL ASSY.

SUPPORT - seat, R.H.

1шт.

5

113-143

BOLT,5/16" x 5/8"

HHCS - (5/16"-18 N.C. x 5/8")

14шт.

6

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

2шт.

8

D56887

SEAT

SLIDE - , R.H.

1шт.

9

D56888

ADJUSTER

SLIDE - seat, L.H. (Adjustment side)

1шт.

10

D56889

SPRING

adjustment lever

1шт.

D56424

ARMREST

KIT

1шт.

15

D56898

ARMREST

D56424 (used w/ D56409 operators seat only), Includes: Ref. 15 - 23

2шт.

16

D56899

BRACKET

mounting, L.H., D56424 arm rest (used w/ D56409 operators seat only)

1шт.

17

D56900

BRACKET

mounting, R.H., D56424 arm rest (used w/ D56409 operators seat only)

1шт.

18

D56901

BRACKET

PLATE - mounting, L.H., D56424 arm rest (used w/ D56409 operators seat only)

1шт.

19

D56902

BRACKET

PLATE - mounting, R.H., D56424 arm rest (used w/ D56409 operators seat only)

1шт.

20

187-1004

SELF-TAP SCREW,Cross Flat Hd, #8 x 3/8"

self-tapping (#8-32 N.C. x 3/8" Phillips hd.), D56424 arm rest (used w/ D56409 operators seat only)

8шт.

21

113-143

BOLT,5/16" x 5/8"

HHCS - (5/16"-18 N.C. x 5/8"), D56424 arm rest (used w/ D56409 operators seat only)

2шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , D56424 Arm rest (used w/ D56409 operators seat only) 5/16"

2шт.

23

9635082

NUT,5/16" - 18, Gr 5

D56424 arm rest (used w/ D56409 operators seat only) 5/16"-18, G5

2шт.
