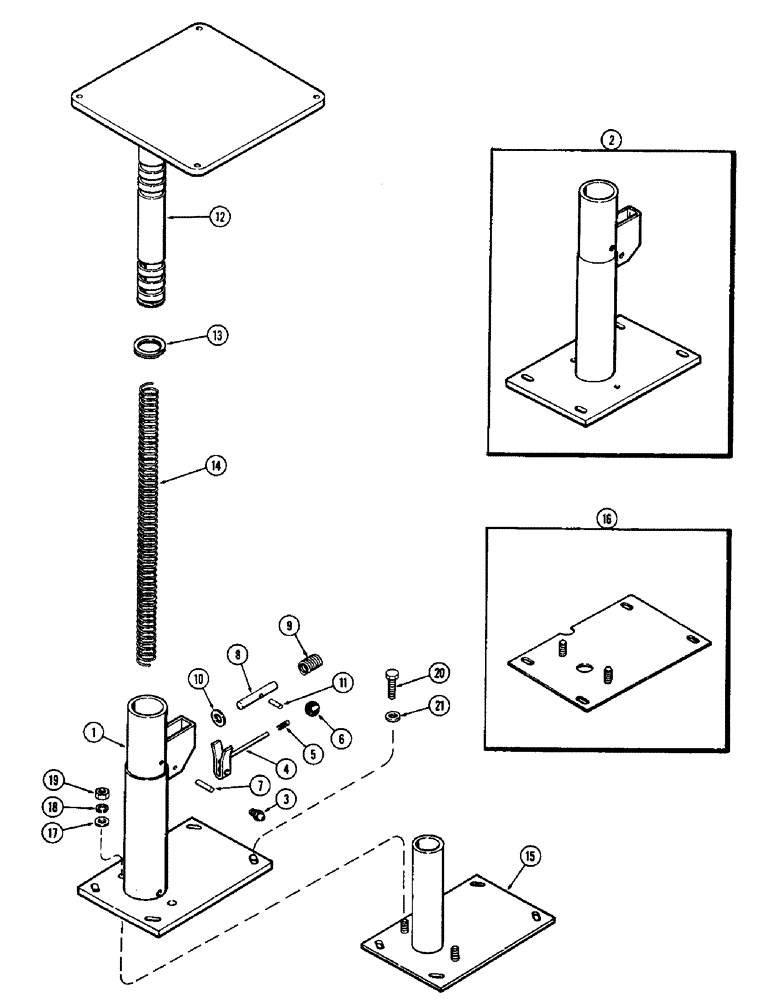

Запчасти Case 580B (224) - SEAT POST (09) - CHASSIS/ATTACHMENTS

1

D61054

POST

ASSY. - base (1st used trac. ser no. 8734021)

1шт.

1

D61053

POST ASSY. - base (w/drawbar models) (1st used trac. ser. no. 8734021)

1шт.

2

D49780

BASE

POST ASSY. - base (Used prior to trac. ser. no. 8734021)

1шт.

2

D55297

POST ASSY. - base (w/drawbar models) (Used prior to trac. ser. no. 8734021)

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T., str.

1шт.

4

D38258

LOCK

ASSY. - post

1шт.

5

D38673

RING

- tolerance tab

1шт.

6

D38643

KNOB

- post lock

1шт.

7

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

8

D38261

PIN

- post lock

1шт.

9

D49774

SPRING

- lock pin

1шт.

10

D49941

SPRING WASHER

- spring

1шт.

11

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

12

D49781

POST

ASSY. - seat mounting

1шт.

13

D49776

SNAP RING,#187, 2.008", Int, Spiral

RING - snap

1шт.

14

D49775

SPRING

- seal list

1шт.

15

D61055

PLATE - base spacer (1st used trac. ser. no. 8734021)

1шт.

16

D54443

PLATE - base spacer (Used prior to trac. ser. no. 8734021)

1шт.

17

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

2шт.

18

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

20

26-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- (3/8 x 1-3/4" N.C. hex.)

4шт.

21

95-6

WASHER,3/8"

- ( flat) 3/8"

4шт.
