Запчасти Case 580B (013G) - AIR CLEANER, (188) DIESEL ENGINE, 1ST USED TRAC. SER. NO. 8725448 W/ ALUMINUM MANIFOLD (02) - ENGINE

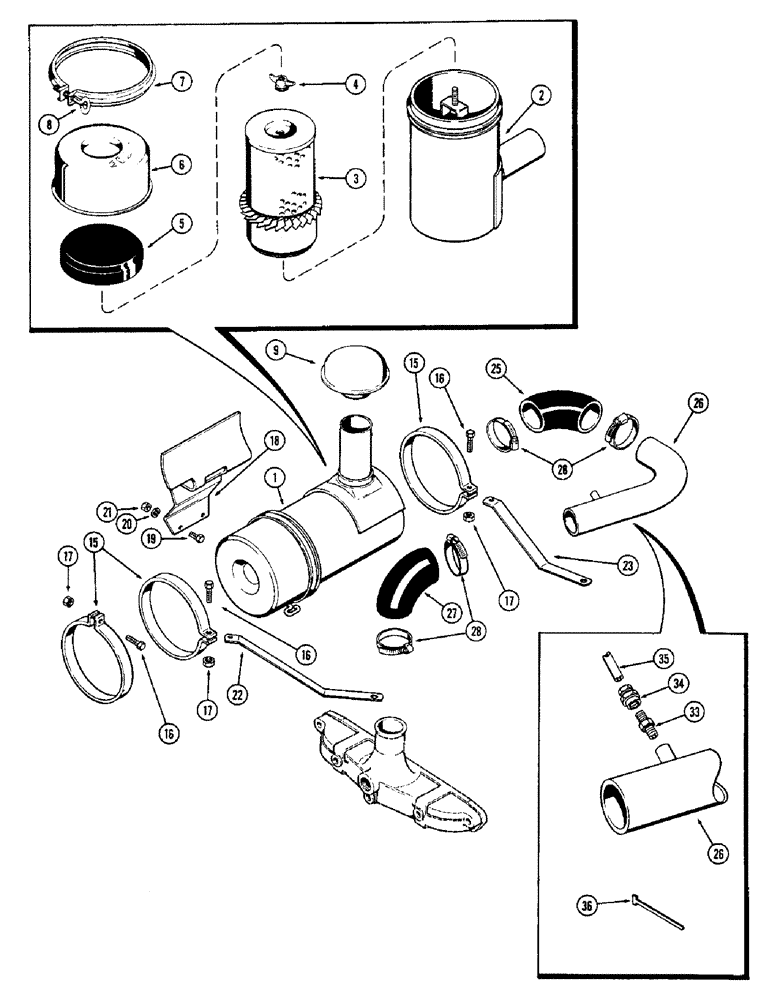

Схема запчастей Case 580B - (013G) - AIR CLEANER, (188) DIESEL ENGINE, 1ST USED TRAC. SER. NO. 8725448 W/ ALUMINUM MANIFOLD (02) - ENGINE
22
16
4
28
16
17
9
28
35
15
26
6
8
21
7
1
27
25
34
33
26
2
20
5
17
15
19
16
17
3
36
23
18

Артикул

Название

Примечание

Количество

1

A139086

AIR CLEANER

ASSY. - (Replaces A39346), Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

3

A42274

AIR FILTER

ELEMENT - cleaner

1шт.

4

F91761

WING NUT

- wing, element

1шт.

5

F22312

BAFFLE

- rubber

1шт.

6

F91760

CUP

- access, air cleaner

1шт.

7

F84999

CLAMP,168.28mm

ASSY. - cup

1шт.

8

25-224

SQUARE NUT,Sq, 1/4"-20

- 1/4" N.C. hex.

1шт.

9

A61276

AIR CLEANER

PRE-CLEANER

1шт.

15

A39347

BAND

- air cleaner mounting

3шт.

16

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- 1/4 x 1-3/4" N.C. hex.

3шт.

17

131-48

LOCK NUT,1/4"-20, GB

NUT - lock, 1/4" N.C. hex.

3шт.

18

A39348

BRACKET

- air cleaner mounting

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

22

A39350

STRAP

- air cleaner support

1шт.

23

A39607

STRAP

- air cleaner support

1шт.

25

A39353

LARGE HOSE

HOSE - air, Serial Range: cleaner-tube

1шт.

26

A39351

TUBE

- air intake

1шт.

27

D28030

ELBOW UNION

HOSE -, Serial Range: tube-manifold

1шт.

28

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16" to 3-1/4"

4шт.

33

D36264

FITTING

FILTER - safety, air restriction

1шт.

34

222-5130

FITTING,7/16"-24 x 1/8" NPT Fem

CONNECTOR - filter to tube, 1/4" tube x 1/8" P.T.

1шт.

35

A39358

TUBE

- safety filter to indicator on panel

1шт.

36

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - air indicator tube

1шт.

Выбрано товаров: 26
