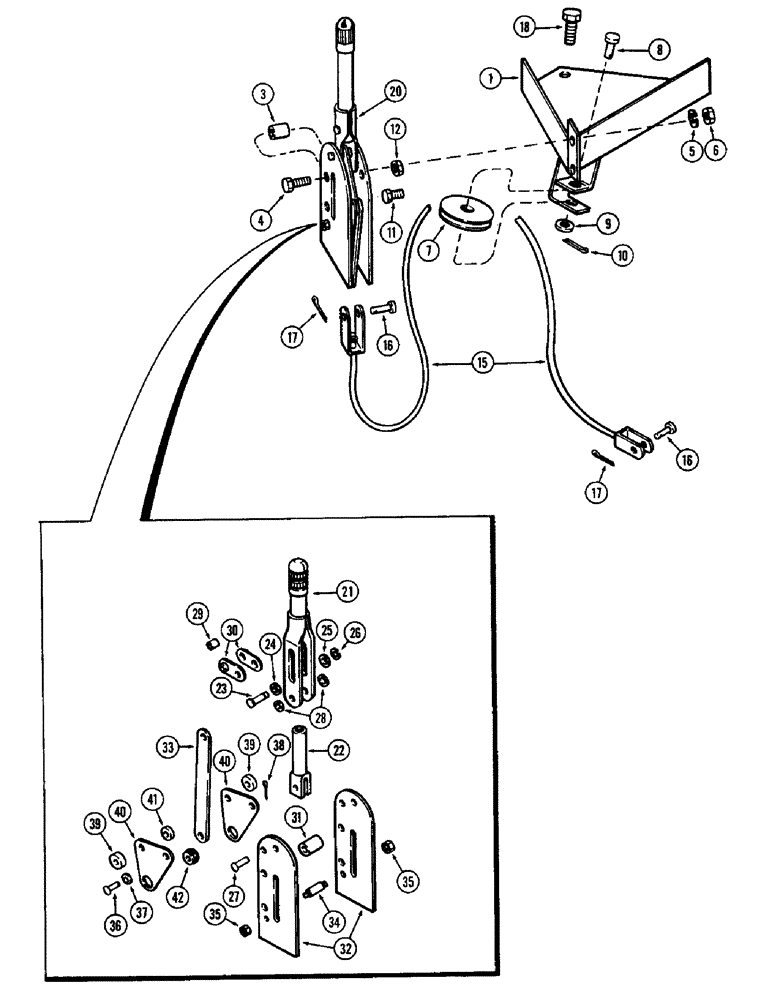

Запчасти Case 580B (213A) - PARKING BRAKE (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
D52049
BRACKET
- brake lever
1шт.
3
D57738
SPACER
- brake lever
2шт.
4
13-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
2шт.
5
92-5
LOCK WASHER,5/16"
2шт.
6
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N.C. hex.
2шт.
7
D32543
SHEAVE
PULLEY - brake cable
1шт.
8
141-12
CLEVIS PIN,3/8" x 1 5/16"
PIN - pulley to bracket
1шт.
9
195-25
WASHER,3/8"
- 13/32 x 13/16 x 5/64"
1шт.
10
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
1шт.
11
13-68
SCREW,Hex, 3/8" - 16 x 1/2", Gr 5
BOLT - (3/8 x 1/2" N.C. hex.)
1шт.
12
25-106
NUT,3/8"-16, G5
- (3/8" N.C. hex.)
1шт.
15
D49719
CABLE
- parking brake
1шт.
16
141-3
CLEVIS PIN,5/16" x .940"
PIN, CLEVIS, 5/16" x .940"
2шт.
17
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
2шт.
18
26-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8
- 3/8 x 1-1/2" N.C. hex.
2шт.
18
26-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8
- 3/8 x 1-3/4" N.C. hex.
1шт.
18
26-632
BOLT,Hex, 3/8" - 16 x 2", Gr 8
- 3/8 x 2" N.C. hex.
2шт.
20
D52835
LEVER
ASSY. - brake, Inlcudes: Ref. 21 - 42
1шт.
D52835 lever assy - Most major components of this assembly are now NSS. Must order complete assembly.
1шт.
21
D54786
HANDLE
- brake lever
1шт.
22
L32960
TUBE
- adjusting
1шт.
23
A42204
PIN
- handle retaining
1шт.
24
D47261
WASHER
- pin
1шт.
25
95-5
WASHER,3/8" x 7/8" x .083"
- 3/8 x 7/8 x 5/64"
1шт.
26
C14652
RING
- retaining
1шт.
27
D54788
RIVET - retaining
1шт.
28
A10454
WAVE WASHER
- spring
2шт.
29
D54798
SPACER - link
2шт.
30
D54789
BRACKET - pivot
2шт.
31
D54866
SPACER - bracket
1шт.
32
D54791
BRACKET - mounting
2шт.
33
D54790
LINK - hand brake
1шт.
34
D54792
STUD - hand brake (5/16" N.F.)
1шт.
35
131-31
LOCK NUT,5/16"-24, G8
NUT - lock (5/16" N.F.)
2шт.
36
D54797
PIN
- pivot
1шт.
37
D47261
WASHER
- pin
1шт.
38
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
39
D54793
SPACER - bellcrank (Thick)
2шт.
40
D54795
BELLCRANK - hand brake
2шт.
41
D54794
SPACER
- bellcrank (Thin)
1шт.
42
D54796
BUSHING - bellcrank
1шт.
Выбрано товаров: 41
