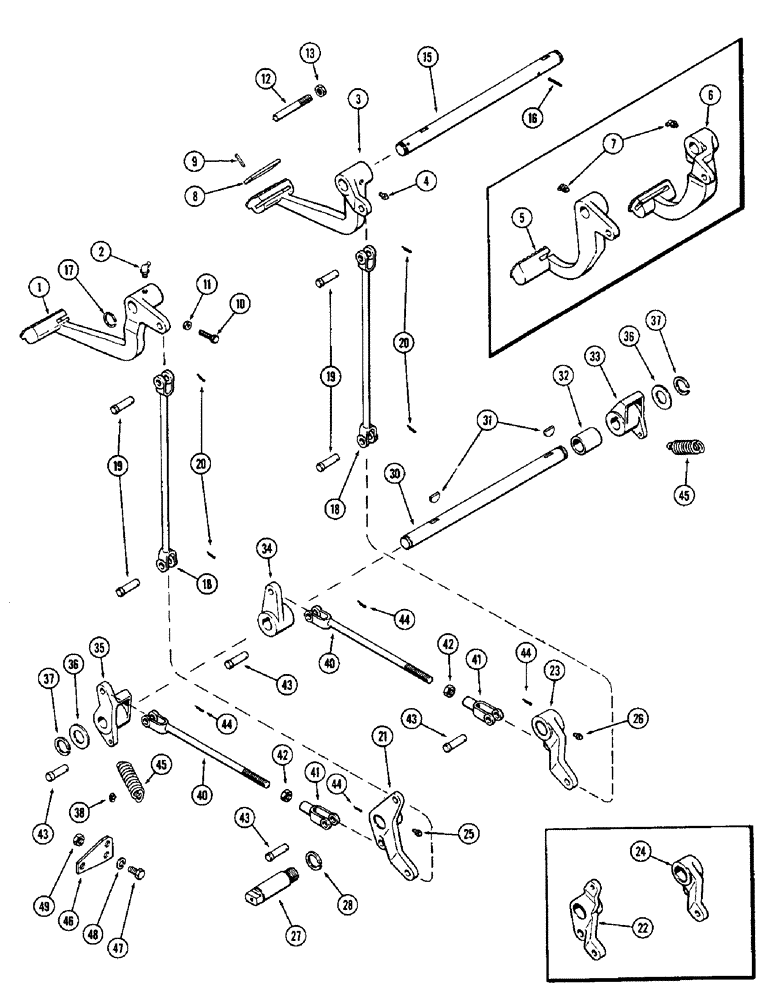

Запчасти Case 580B (210) - BRAKE PEDALS AND LINKAGE, MECHANICAL SHUTTLE (07) - BRAKES

1

A51742

PEDAL

- brake, R.H. (1st used trac. ser. no. 8740746)

1шт.

2

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. x 45 degrees

1шт.

3

A51743

PEDAL

- brake, L.H. (1st used trac. ser. no. 8740746)

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. str.

1шт.

5

A39314

PEDAL

- brake, R.H. (Order A51742) (Used prior trac. ser. no. 8740746)

1шт.

6

A39315

PEDAL

- brake, L.H. (Order A51743) (Used prior to trac. ser. no. 8740746)

1шт.

7

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

8

A37704

INTERLOCK - brake pedals

1шт.

9

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

10

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

11

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex.

1шт.

12

A37241

STUD

- pedal stop

1шт.

13

25-148

JAM NUT,Jam, 1/2"-13, G5

- 1/2" NC hex, jam

1шт.

15

A37701

SHAFT

- cross, brake pedal

1шт.

16

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, 1/8" x 1 1/2", Slotted

1шт.

17

A37235

SNAP RING,#100, .941", Ext

RING - snap, pedal shaft

1шт.

18

A37238

ROD

-, Serial Range: pedal-pivot

2шт.

19

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

4шт.

20

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

21

A51786

LEVER

- pivot, R.H. (1st used trans. ser. no. 2430328)

1шт.

22

A39838

LEVER

- pivot, R.H. (Replaces A39335) (Used prior to trans. ser. no. 2430328)

1шт.

23

A51787

LEVER

- pivot, L.H. (1st used trans. ser. no. 2430328)

1шт.

24

A39334

LEVER

- pivot, L.H. (Used prior to trans. ser. no. 2430328)

1шт.

25

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. str.

1шт.

27

A37491

SHAFT

- stub, pivot levers

1шт.

28

103-11125

SNAP RING,#125, Ext

RING - snap, pivot shaft

1шт.

30

G10708

SHAFT

- cross, lower brake lever

1шт.

31

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

32

G16783

SPACER

- lever, L.H.

1шт.

33

G1057

LEVER

- brake, L.H. (L.H. end of shaft)

1шт.

34

A37230

LEVER

- brake, L.H. (R.H. end of shaft)

1шт.

35

A37231

LEVER

- brake, R.H.

1шт.

36

B18145

WASHER

- 1-7/8" O.D. x 1-3/32" I.D.

2шт.

37

F62093

RING, SNAP

RING - snap, lever cross shaft

2шт.

38

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T., str.

1шт.

40

A37239

ROD

- brake lever to pivot lever

2шт.

41

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - rod

2шт.

42

25-158

JAM NUT,Jam, 1/2"-20, G5

- 1/2" N.F. hex., jam

2шт.

43

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

4шт.

44

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

45

G10848

SPRING

- lever return

2шт.

46

A39333

BRACKET

- brake spring anchor, R.H.

1шт.

47

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

48

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

49

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.
