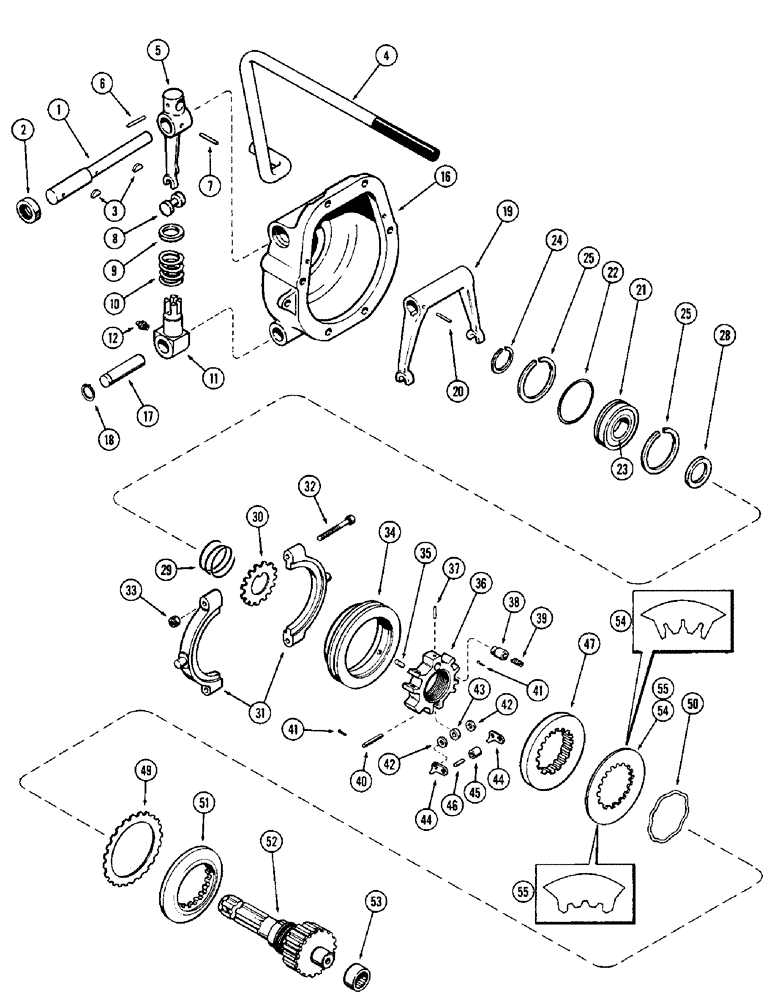

Запчасти Case 580B (222) - P.T.O. CLUTCH AND LINKAGE, INDEPENDENT P.T.O. (06) - POWER TRAIN

1

A37696

SHAFT

- cross, clutch control

1шт.

2

G13818

OIL RESERVOIR

SEAL - oil , 1 x 1-1/2 x 5/16"

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

2шт.

4

A39534

LEVER

- hand, throwout

1шт.

5

A39084

LEVER

- brake

1шт.

6

135-350

PULLEY

PIN - groove (7/32 x 1-1/4")

1шт.

7

135-90

PULLEY

PIN - groove (5/16 x 2")

1шт.

8

A37684

AXLE PIN

PIN - over center lock

1шт.

9

A38412

WASHER

- thrust, actuator spring

1шт.

10

A37699

SPRING

- brake actuator

1шт.

11

A37698

ARM

- pivot, brake lever

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. str.

1шт.

16

A37677

HOUSING ASSY. - rear, Includes: Ref. 17

1шт.

17

A37679

SHAFT

- brake pivot

1шт.

18

B18206

SNAP RING,#87, Ext

Ring, Snap, , lever shaft #87, Ext

1шт.

19

A37682

YOKE

- throwout

1шт.

20

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, 3/16" x 5/8", Slotted

1шт.

21

G13611

BALL BEARING

BEARING ASSY. - rear, output shaft, Includes: Ref. 22 and 23

1шт.

22

G46844

O-RING,2.628" ID

"O" RING - 2-5/8 x 2-13/16 x 7/64"

1шт.

23

G13819

SEAL

- oil, bearing

1шт.

24

A21619

CIRCLIP

RING - snap, rear bearing, output shaft

1шт.

25

A27369

RING, SNAP

RING - snap, rear, Serial Range: bearing-housing

2шт.

28

A37695

WASHER

- pressure spring adjusting

1шт.

29

A37694

SPRING

- plate pressure

1шт.

30

A38305

LARGE PLATE

PLATE - clutch adjusting

1шт.

31

A37675

COLLAR ASSY.

- clutch throwout, Includes: Ref. 32 and 33

1шт.

32

14-540

BOLT,Hex, 5/16" - 24 x 2-1/2", Gr 5

- 5/16 x 2-1/2" N.F. hex.

2шт.

33

131-575

NUT

NUT - 5/16" N.F. flexlock

2шт.

34

A38282

SLEEVE

- sliding (Includes bonded brake lining)

1шт.

35

135-139

PIN

- groove, 1/4 x 1/2" shearproof

1шт.

36

A38280

CARRIER

- clutch lever

1шт.

37

138-43

LOCK PIN,3/32" x 7/8", Slotted

PIN, 3/32" x 7/8", Slotted

1шт.

38

A51596

PIN

- lock, clutch adjusting (Replaces A37691)

1шт.

39

A37692

VALVE SPRING

SPRING - lock pin, clutch adjusting

1шт.

40

A37671

AXLE PIN,6.29mm OD x 42.16mm L

PIN - pivot, clutch link

3шт.

41

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

6шт.

42

A37689

ROLLER

- outer, clutch link

6шт.

43

A37688

ROLLER

- inner, clutch link

3шт.

44

A38281

DRAG LINK

LINK - clutch plate

6шт.

45

A37670

SPACER

- clutch link

3шт.

46

A37690

AXLE PIN,6.31mm OD x 18.9mm L

PIN - link roller

3шт.

47

A39934

PLATE

- pressure, clutch (Replaces A38975)

1шт.

49

A11127

PLATE

- clutch, external tooth

8шт.

50

A27591

VALVE SPRING

SPRING - separator, clutch plate

8шт.

51

A7101

PLATE

- backing, clutch

1шт.

52

A37666

SHAFT

- output

1шт.

53

F7232

BEARING

- needle, output shaft

1шт.

54

A65425

PLATE

- clutch, internal tooth (Replaced A57170)

7шт.

55

A57170

BRAKE DISC

PLATE - clutch, internal tooth (Order A65425)

7шт.
