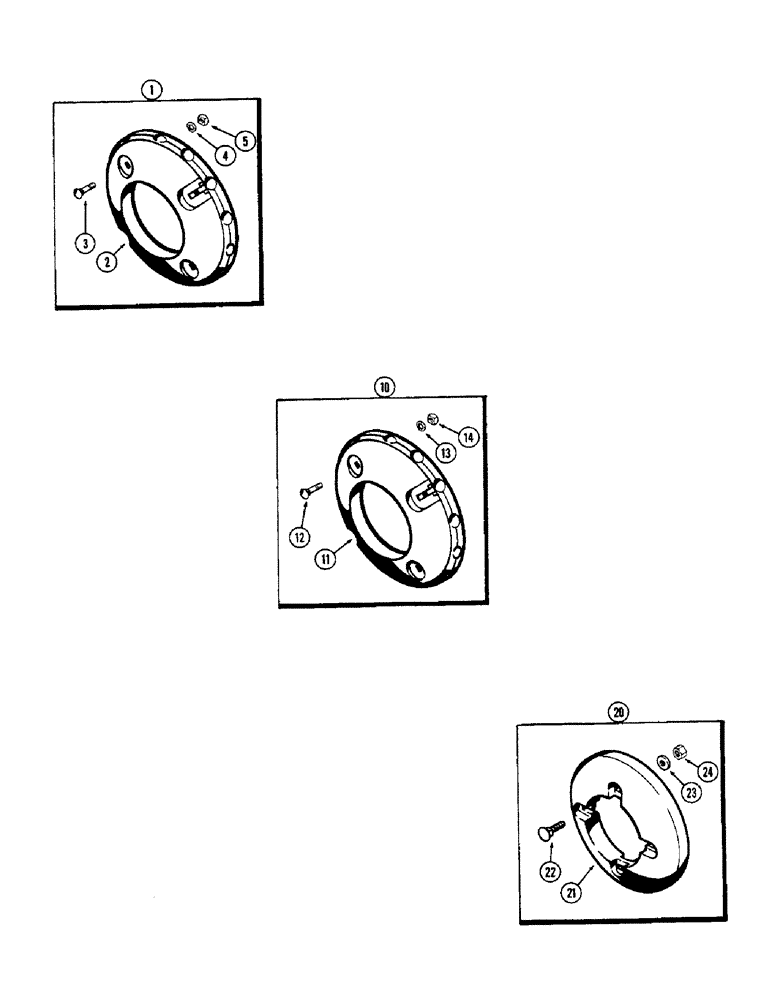

Запчасти Case 580B (219A) - REAR WHEEL WEIGHTS (06) - POWER TRAIN

1

G12018

WEIGHT SET - (For 24" integral or 28" demountable (Set of 2) (Mach. item), Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

WEIGHT - 73 lb. ea.

2шт.

3

11-1052

BOLT (MACHINE)

BOLT - 5/8 x 3-1/4" N.C. carr.

4шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

25-1010

NUT,5/8"-11, G5

4шт.

10

G12609

WEIGHT SET - 24" demountable wheel, 1st set (Mach. item), Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

WEIGHT - 78 lb. ea.

2шт.

12

11-1036

BOLT (MACHINE)

BOLT - 5/8 x 2-1/4" N.C. carr.

4шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

25-1010

NUT,5/8"-11, G5

4шт.

20

G12610

WEIGHT SET - 24" demountable wheel, 2nd set (Mach. item), Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

WEIGHT - 78 lb. ea.

2шт.

22

11-1052

BOLT (MACHINE)

BOLT - 5/8 x 3-1/4" N.C. carr.

4шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

24

25-1010

NUT,5/8"-11, G5

4шт.
