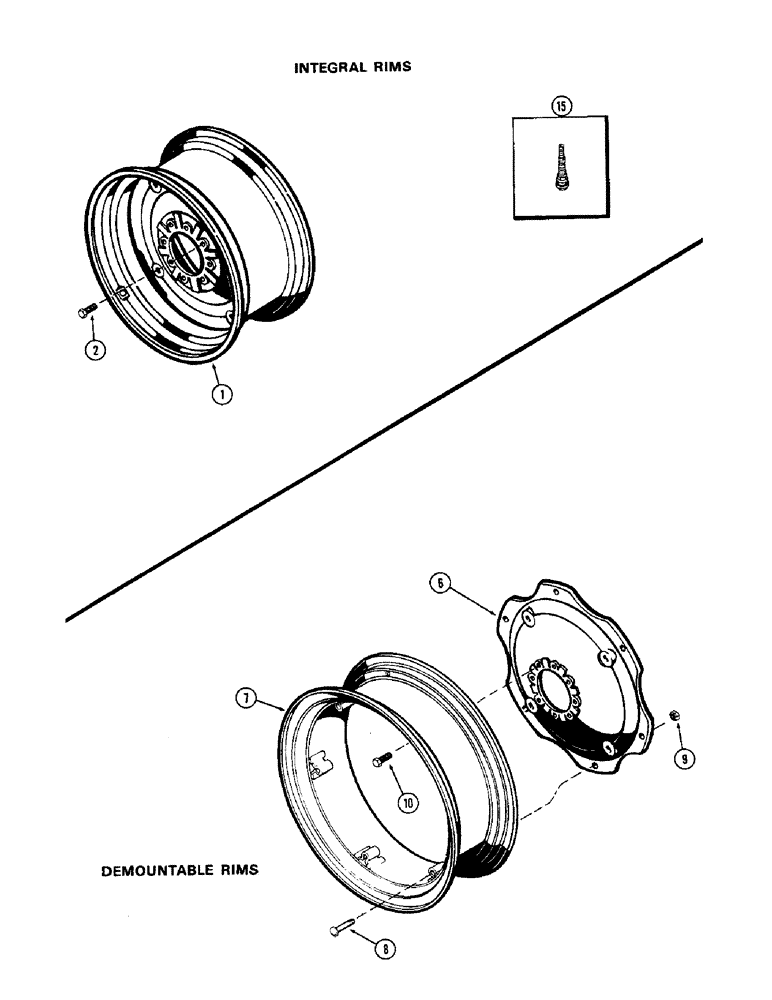

Запчасти Case 580B (214) - REAR WHEELS, 24" INTEGRAL RIMS, 24" DEMOUNTABLE RIMS (06) - POWER TRAIN

1

A139085

WHEEL

- rear (7/32" offset) (Takes 16.9 or 17.5 X 24 tire w/ or w/o backhoe and w/fork lift) (Replaces A39787)

2шт.

1

A139085

WHEEL

- rear (7/32" offset) (Takes 18.4 X 24 tire w/fork lift only) (Replaces A39787)

2шт.

1

A38403

RIM

WHEEL - rear (7/32" offset) (Takes 14.9 X 24 tire used w/and w/o backhoe) (Replaces A35578)

2шт.

1

A139084

RIM

WHEEL - rear (Takes 14.9 X 24 tire w/o backhoe) (Replaces A35906)

2шт.

2

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - 5/8" N.F., special

16шт.

6

G46240

DISC

- wheel, 24" demountable rims

2шт.

7

A39536

RIM

- (W15L-24) (Takes 16.9 X 24 or 17.5 X 24 tire), 24" demountable rims

2шт.

7

D72304

RIM

- (W12-24) (Takes 14.9 X 24 tire), 24" demountable rims

2шт.

8

G10701

BOLT

- 5/8 x 2-11/16" N.F. special, 24" demountable rims

12шт.

9

129-565

SPECIAL NUT,5/8"-18, G5

- 5/8" N.F. hex., 24" demountable rims

12шт.

10

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - 5/8" N.F. special, 24" demountable rims

16шт.

15

A20058

VALVE STEM

- Rim (For tubeless tire), 24" demountable rims

2шт.
