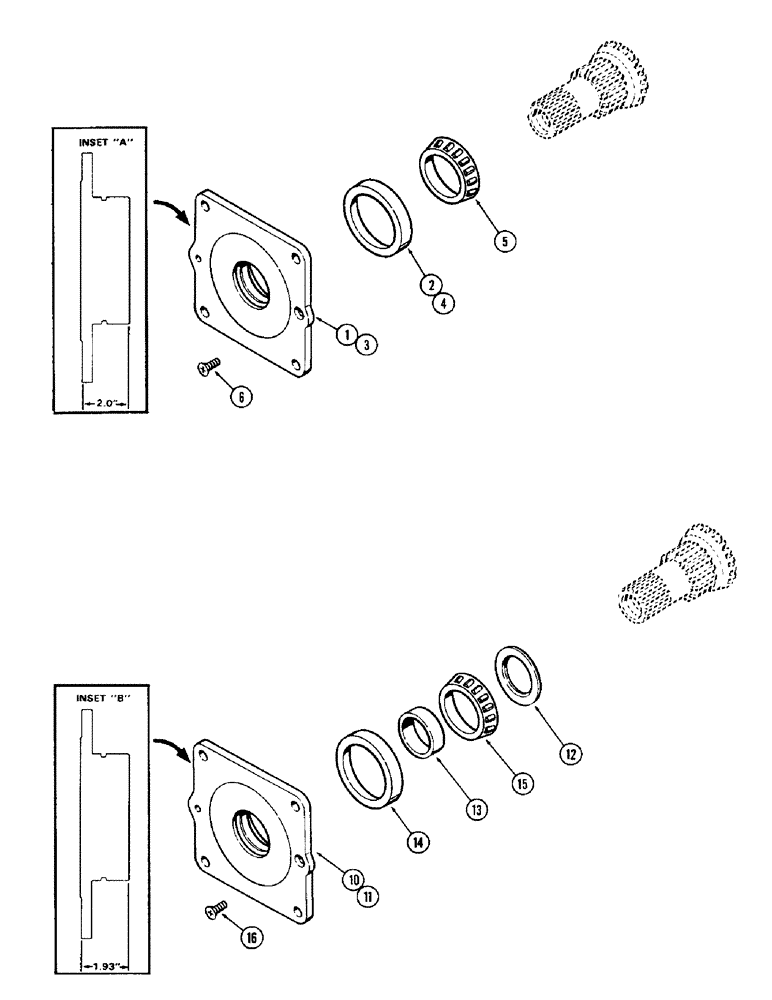

Запчасти Case 580B (203A) - DIFFERENTIAL, BEARING CARRIER, TRANS. SER. NO. 2438862 THRU 2446129 ONLY (06) - POWER TRAIN

1

A140279

HOUSING

CARRIER ASSY. - bearing, R.H. side gear (L.H. shown) (2" wide. See inset "A") (Replaces G30490), Inlcudes: Ref. 2

1шт.

2

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear

1шт.

3

A140280

HOUSING

CARRIER ASSY. - bearing, L.H. side gear (2" wide. See inset "A") (Replaces G30491), Inlcudes: Ref. 4

1шт.

4

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear

1шт.

5

A30114

CONE

- bearing, side gear (Timken #390) (See note)

2шт.

6

171-237

SCREW,Cross Flat Hd, 3/8" - 16 x 3/4", W/ Nylon Insert

- 3/8 x 3/4" flat hd. Phillips

2шт.

10

NSS

NOT SOLD SEPARAT

CARRIER - bearing, R.H. side gear (L.H. shown) (1.93" wide. See inset "B") (Order ref. 1 & 5 and discard ref. 12 & 13), trans. ser. no. 2438862 thru 2446129 only

1шт.

11

NSS

NOT SOLD SEPARAT

CARRIER - bearing, L.H. side gear (1.93" wide. See inset "B") (Order ref. 3 & 5 and discard ref. 12 & 13), trans. ser. no. 2438862 thru 2446129 only

1шт.

12

A138489

WASHER

- thrust, side gear bearing, trans. ser. no. 2438862 thru 2446129 only

2шт.

13

A138482

BUSHING

SLEEVE - bearing support, trans. ser. no. 2438862 thru 2446129 only

2шт.

14

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear, trans. ser. no. 2438862 thru 2446129 only

2шт.

15

A30044

ROLLER BEARING

CONE - bearing, side gear (Timken #399A) (See note), trans. ser. no. 2438862 thru 2446129 only

2шт.

Ref note w/ regard to substituting A30114 bearing cone for A30044 bearing cone. The A138489 washer and A138482 sleeve would still be used in this instance. (refer Service Bulletin 11-75/15).

1шт.

16

171-237

SCREW,Cross Flat Hd, 3/8" - 16 x 3/4", W/ Nylon Insert

- 3/8 x 3/4" flat hd. Phillips, trans. ser. no. 2438862 thru 2446129 only

2шт.
