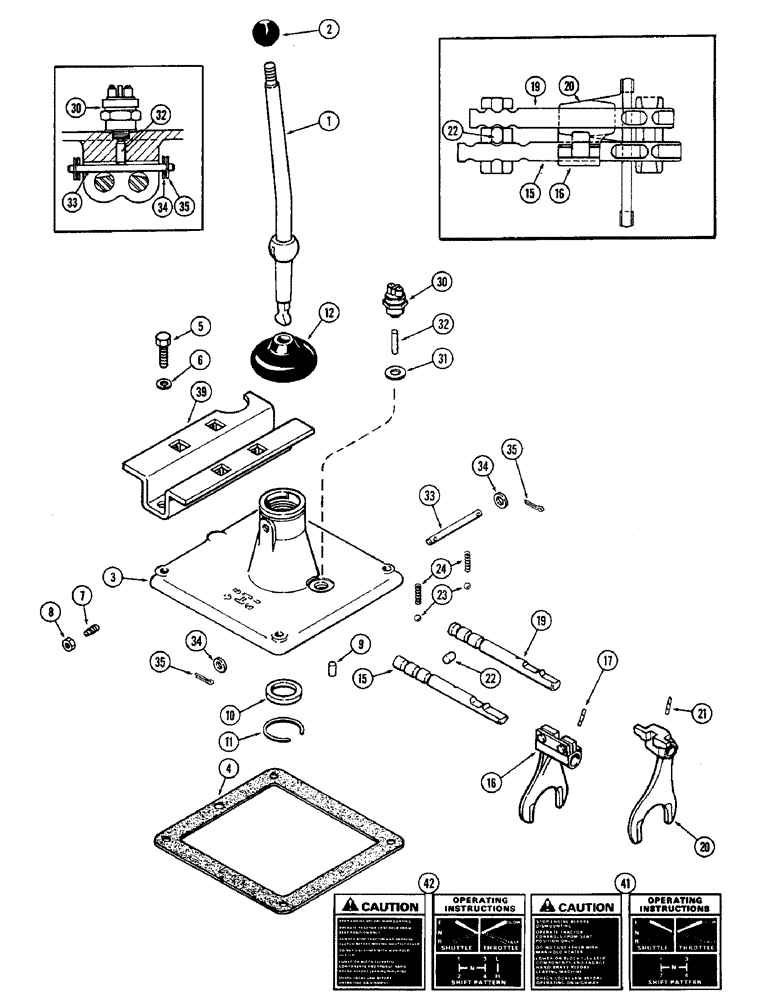

Запчасти Case 580B (197A) - GEAR SHIFT, 1ST USED TRANS. SER. NO. 2447415 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A51747
LEVER
- gear lever
1шт.
2
A23885
KNOB
- shift lever
1шт.
3
A51882
COVER
- control
1шт.
4
G10342
GASKET
- cover
1шт.
5
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- 3/8 x 1-1/2" N.C. hex.
3шт.
5
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
- 3/8 x 1-5/8" N.C. hex.
1шт.
6
92-6
LOCK WASHER,3/8"
WASHER - lock, 3/8"
4шт.
7
G15468
SET SCREW,5/16" - 18 x 3/4"
- shift lever retaining
1шт.
8
25-145
JAM NUT,Jam, 5/16"-18, G5
- jam, 5/16" N.C. hex.
1шт.
9
138-245
LOCK PIN,1/2" x 7/8", Slotted
Pin, , Cover to trans. case 1/2" x 7/8", Slotted
1шт.
10
A7923
SEAT
- support, shift lever
1шт.
11
A26836
RING, SNAP
RING - snap, seat retaining
1шт.
12
A57876
COVER
- dust, shift lever
1шт.
15
A51879
ROD
RAIL - shift, 1st & 2nd speeds
1шт.
Shift rails - Illustration is incorrect. Item #'s should be reversed in this drawing.
1шт.
16
A38248
FORK TEDDER
FORK - shift, 1st & 2nd speeds
1шт.
17
138-2009
PIN,3/16" x 1", Coiled
1шт.
19
A51878
ROD
RAIL - shift, 3rd & 4th speeds
1шт.
Shift rails - Illustration is incorrect. Item #'s should be reversed in this drawing.
1шт.
20
A38234
FORK
- shift, 3rd & 4th speeds
1шт.
21
138-2009
PIN,3/16" x 1", Coiled
1шт.
22
A29060
PLUG
- interlock shift rail
1шт.
23
211-11
BALL,3/8" Dia
- shift rail detent, . 3/8" Dia
2шт.
24
G47039
SPRING
- detent ball
2шт.
30
A20990
SWITCH
- safety, neutral start
1шт.
31
G49401
SHIM,.005" Thk
Switch .005" Thk
1шт.
31
G49402
SHIM,.010" Thk
Switch .010" Thk
1шт.
32
A51881
PIN - plunger, neutral start switch
1шт.
33
A51880
ROD
- neutral start
1шт.
34
95-4
WASHER,1/4"
- 5/16 x 3/4 x 1/16"
2шт.
35
132-24
COTTER PIN,3/32" x 1/2"
PIN, SPLIT (COTTER), 3/32" x 1/2"
2шт.
39
D52993
SUPPORT - floor plate, center
1шт.
41
321-2649
DECAL
- shifting instructions (w/power shuttle)
1шт.
42
321-2650
DECAL
- shifting instructions (w/mech. shuttle)
1шт.
Выбрано товаров: 34
