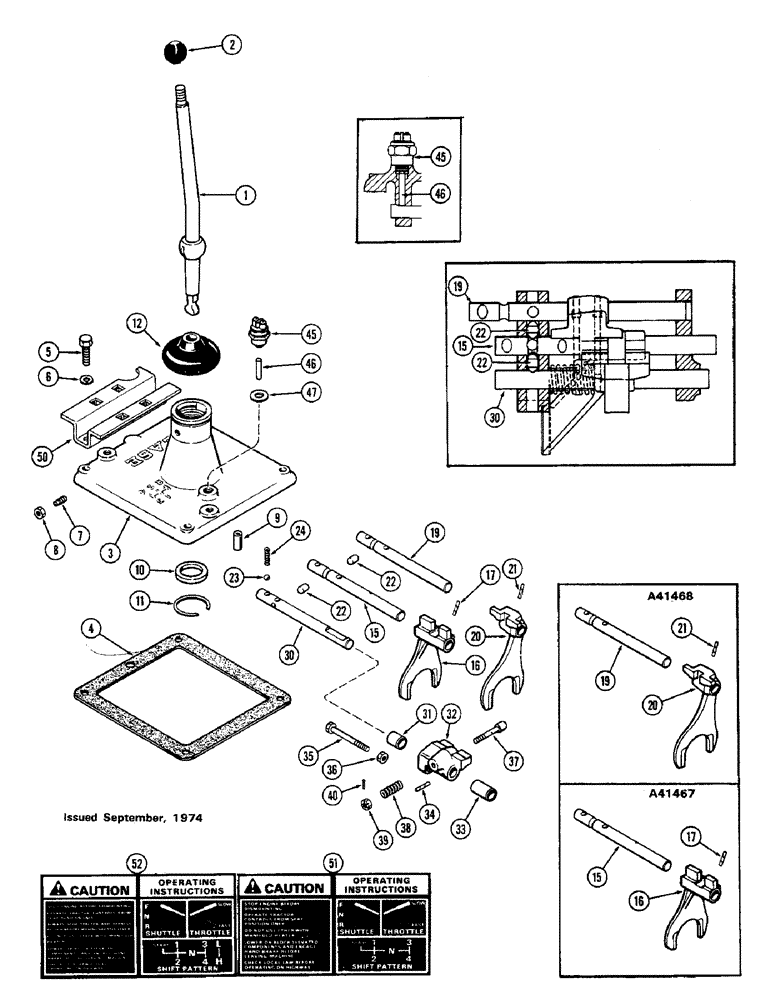

Запчасти Case 580B (196) - GEAR SHIFT, USED PRIOR TO TRANS. SER. NO. 2447415 (06) - POWER TRAIN

1

A51747

LEVER

- gear shift (Replaces A39864 & A39329)

1шт.

2

A23885

KNOB

- shift lever

1шт.

3

A36155

COVER

- control

1шт.

4

G10342

GASKET

- cover

1шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

3шт.

5

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

1шт.

6

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

7

G15468

SET SCREW,5/16" - 18 x 3/4"

- shift lever retaining

1шт.

8

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex., jam

1шт.

9

138-245

LOCK PIN,1/2" x 7/8", Slotted

Pin, , Cover to trans. case 1/2" x 7/8", Slotted

1шт.

10

A7923

SEAT

- support, shift lever

1шт.

11

A26836

RING, SNAP

RING - snap, seat retaining

1шт.

12

A57876

COVER

- dust, shift lever

1шт.

A41467

FORK

KIT - shift, 1st & 2nd, Inlcudes: Ref. 15 - 17

1шт.

15

A38233

ROD

RAIL - shift, 1st & 2nd speeds

1шт.

16

A38232

FORK

- shift, 1st & 2nd speeds

1шт.

17

138-2009

PIN,3/16" x 1", Coiled

1шт.

A41468

PACKAGE, REPAIR

KIT - shift, 3rd & 4th, Inlcudes: Ref. 19 - 21

1шт.

19

A38235

ROD

RAIL - shift, 3rd & 4th speeds

1шт.

20

A38234

FORK

- shift, 3rd & 4th speeds

1шт.

21

138-2009

PIN,3/16" x 1", Coiled

1шт.

22

A29060

PLUG

- interlock, shift rail

2шт.

23

211-11

BALL,3/8" Dia

- shift rail detent, . 3/8" Dia

3шт.

24

G47039

SPRING

- detent ball

3шт.

30

A38236

ROD

RAIL - reverse shift

1шт.

31

G49632

SPACER

- rear, reverse shift (3/4" long)

1шт.

32

A38237

LUG

- reverse shift

1шт.

33

G49611

SPACER

- front, reverse shift (1-1/4" long)

1шт.

34

138-2009

PIN,3/16" x 1", Coiled

1шт.

35

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - 5/16 x 3" N.C. hex.

1шт.

36

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex., jam

1шт.

37

A29963

PLUNGER

- reverse latch

1шт.

38

T25643

VALVE SPRING

SPRING - plunger

1шт.

39

25-135

SLOTTED NUT,5/16"-24, G5

NUT - 5/16" N.F. hex., sltd.

1шт.

40

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

45

A20990

SWITCH

- safety, neutral start

1шт.

46

G15574

PLUNGER

- switch

1шт.

47

G49401

SHIM,.005" Thk

Switch .005" Thk

1шт.

47

G49402

SHIM,.010" Thk

Switch .010" Thk

1шт.

50

D52993

SUPPORT - floor plate, center

1шт.

51

321-1644

DECAL

- shifting instruction (w/power shuttle)

1шт.

52

321-1951

DECAL

- shifting instructions (w/power shuttle)

1шт.
