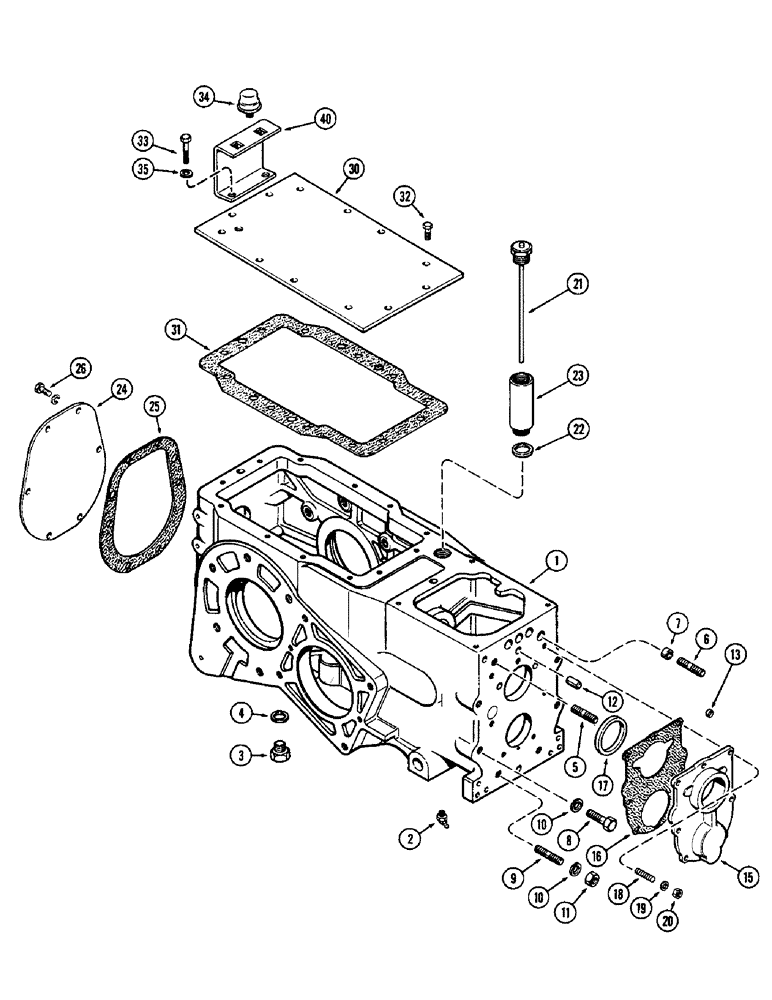

Запчасти Case 580B (194) - TRANSMISSION CASE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A38714
CASE
- transmission
1шт.
2
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FITTING - lube 1/8" P.T. x 45 degrees
2шт.
3
A140222
PLUG
- drain (Replaces A14280)
1шт.
4
A58608
GASKET
- plug (Nylon)
1шт.
5
A38708
STUD
- 1/2" N.C./N.F. x 2-3/8", upper R.H.
1шт.
6
A38707
STUD
- 1/2" N.C./N.F. x 2-9/16", upper L.H.
1шт.
A38707 stud - This is 2.560" long.One size is used to service both sizes called out.
1шт.
7
A50011
SLEEVE
- stud, upper L.H.
1шт.
8
113-465
BOLT
- 1/2 x 2" N.C. hex.
4шт.
9
A38707
STUD
- 1/2" N.C./N.F. x 2-1/2" lower (Replaces A29336)
2шт.
A38707 stud - This is 2.560" long.One size is used to service both sizes called out.
1шт.
10
92-8
LOCK WASHER,1/2"
8шт.
11
25-178
NUT,1/2"-20, G5, Hvy
- 1/2" N.F. hex.
4шт.
12
A29540
PIN
DOWEL - torque tube to trans. case
1шт.
13
A39321
PLUG,Cup, 7/16"
- 7/16" cup type
1шт.
15
G1027
COVER
- front (Used w/power shuttle)
1шт.
16
G46841
GASKET
- cover
1шт.
17
A39184
COLLAR
- pilot (Used w/power shuttle)
1шт.
18
G10710
STUD
- 3/8" N.C./N.F. x 1-3/4"
7шт.
19
92-6
LOCK WASHER,3/8"
WASHER - lock, 3/8"
7шт.
20
25-116
NUT,Hex, 3/8"-24, G5
- 3/8" N.F. hex.
7шт.
21
A39323
DIPSTICK
- oil level
1шт.
22
A38660
GASKET
- dipstick
1шт.
23
A39322
TUBE
- dipstick extension
1шт.
24
A39105
COVER
- rear (Used w/o P.T.O. or hitch)
1шт.
25
G10447
GASKET
- cover
1шт.
26
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
6шт.
30
A39853
COVER
- top (Used w/o hitch) (Replaces A39320)
1шт.
31
G10941
GASKET
- cover
1шт.
32
26-616
BOLT,Hex, 3/8" - 16 x 1", Gr 8
- 3/8 x 1" N.C. hex.
3шт.
33
26-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8
- 3/8 x 1-1/8" N.C. hex.
5шт.
33
26-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8
- (3/8 x 1-3/4" N.C. hex.) (Seat support plate to trans. rear top cover)
4шт.
34
A27173
BREATHER
- oil
1шт.
35
95-6
WASHER,3/8"
- ( flat) (Seat support plate to trans. cover) 3/8"
4шт.
40
D52994
BRACKET
SUPPORT - floor plate, rear
1шт.
Выбрано товаров: 35
