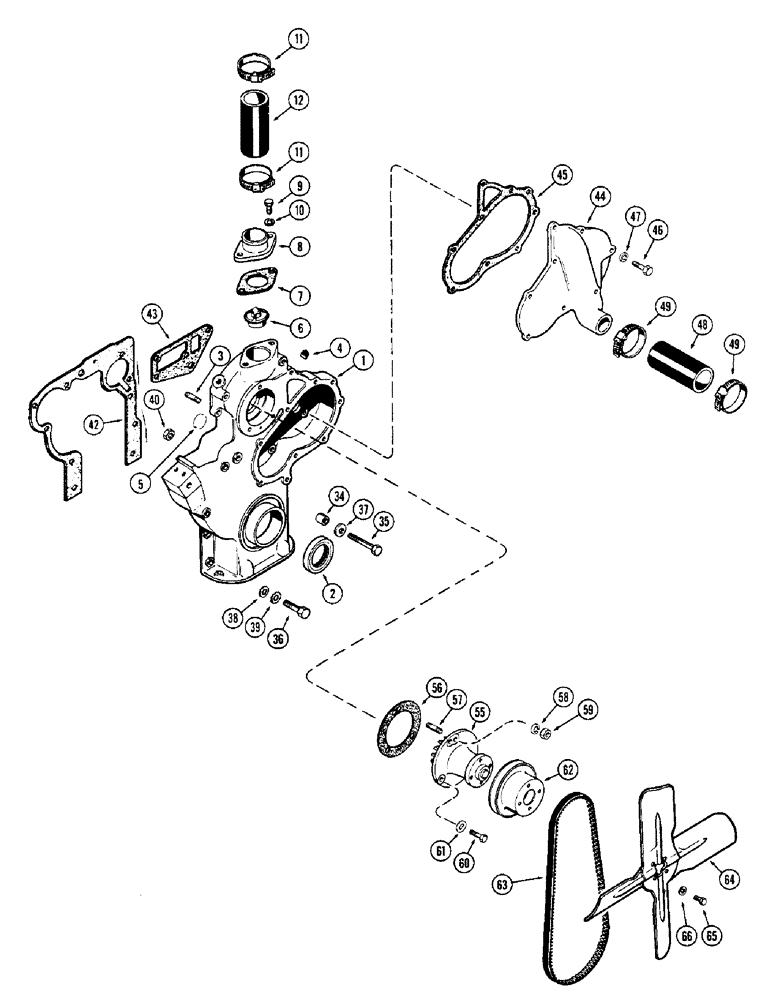

Запчасти Case 580B (013C) - TIMING GEAR COVER, (188) DIESEL ENGINE, USED PRIOR TO ENG. SN 2728315, WATER PUMP, FAN BELT (02) - ENGINE

A39846

COVER ASSY. - timing gear (Order kit A51890 see Figure 13E) (Replaces A38955), Inlcudes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - timing gears

1шт.

2

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft, front

1шт.

3

G11204

STUD

- (3/8" N.C. x 1-7/16")

3шт.

4

A58620

PLUG,Cup, 3/4", Stainless

- water cooler hole (49/64" cup type)

1шт.

5

221-1022

PLUG,Sq Soc, 1/2"-14 NPTF

- (3/8" P.T. hex. socket head)

2шт.

6

A57641

THERMOSTAT

- (180 degrees)

1шт.

7

G46907

GASKET

-, Serial Range: connection-cover

1шт.

8

G2144

FITTING

CONNECTION - water outlet

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

11

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

12

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper, Outlet to Radiator 2.00" ID x 4.88", SAE 20R2

1шт.

34

A29442

RING

- dowel, Serial Range: cover-block

2шт.

35

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8 x 2" N.C. hex.

1шт.

35

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex.

3шт.

35

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex.

1шт.

35

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex.

3шт.

36

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

36

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

36

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

1шт.

37

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

5шт.

37

195-22

WASHER

- 3/8 x 3/4 x 1/16"

2шт.

38

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

12шт.

39

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

40

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

42

A38228

GASKET

-, Serial Range: cover-block

1шт.

43

A38084

GASKET,1.27mm Thk

-, Serial Range: cover-head

1шт.

44

G2077

COVER ASSY

COVER - timing gear housing

1шт.

45

G46859

GASKET

- cover

1шт.

46

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

46

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8 x 2" N.C. hex.

1шт.

47

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

9шт.

48

G46269

RADIATOR HOSE,1.75" ID x 2.50", SAE 20R2

Lower 1.75" ID x 2.50", SAE 20R2

1шт.

49

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

55

A39074

PUMP

ASSY. - water, fan and belt, Includes: Ref. 56

1шт.

56

A38083

GASKET

- pump to cover, water fan and belt

1шт.

57

A29433

STUD

- 3/8" N.C. x 1", water pump, fan and belt

2шт.

58

92-6

LOCK WASHER,3/8"

WASHER - lock, , water pump, fan and belt 3/8"

2шт.

59

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.), water pump, fan and belt

2шт.

60

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- (3/8 x 2-3/4" N.C. hex.), water pump, fan and belt

1шт.

61

A7085

WASHER

- (25/64 x 9/16 x 1/32" copper), water pump, fan and belt

1шт.

62

G11339

PULLEY

- water pump, fan and belt

1шт.

63

A38824

BELT

Alternator, Water Pump, Fan

1шт.

64

G45243

FAN

- radiator, water pump, and belt

1шт.

65

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Water pump, fan and belt Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

66

92-5

LOCK WASHER,5/16"

water pump, fan and belt 5/16"

4шт.
