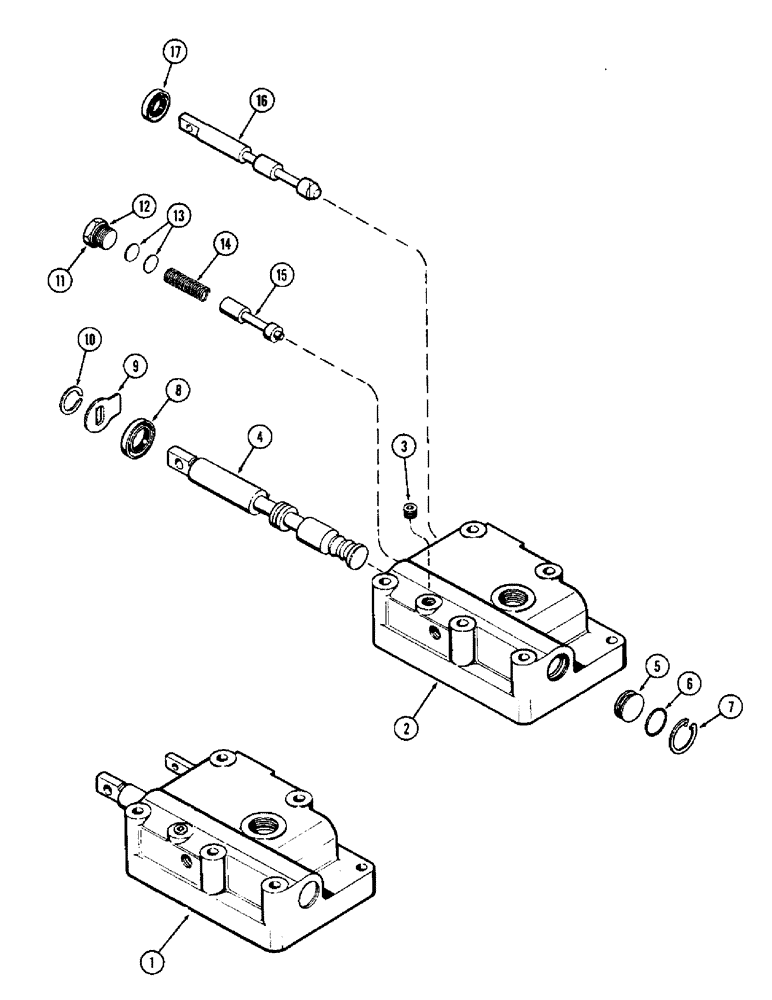

Запчасти Case 580B (192) - A38434 VALVE, POWER SHUTTLE (06) - POWER TRAIN

1

A38434

VALVE

ASSY. - shuttle control, Inlcudes: Ref. 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order ref. 1)

1шт.

3

221-1849

PLUG

- 1/8" P.T., sckt. hd.

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - power shuttle control (Order ref. 1)

1шт.

5

A37549

PLUG

- spool opening

1шт.

6

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - 3/4 x 1 x 1/8"

1шт.

7

A37550

SNAP RING,1.00", Int, #100

Ring, Snap, , plug 1.00", Int, #100

1шт.

8

A11507

OIL SEAL

- oil, 7/8 x 1-3/8 x 1/4"

1шт.

9

NLS

NO LONGER SERVICED

PLATE - interlock, spool

1шт.

10

A29329

RING, SNAP

RING - snap, plate retaining

1шт.

11

A39131

PLUG

- pressure regulator (Replaces A38443)

1шт.

13

A38441

SHIM,.0209" Thk

Pressure regulating .0209" Thk

1шт.

13

A38442

SHIM,.0418" Thk

Pressure regulating .0418" Thk

1шт.

14

A38440

SPRING

- regulator spool, 2-3/64" free length

1шт.

15

A37551

PLUNGER

SPOOL - pressure regulator

1шт.

16

A38033

SPOOL

- flow control

1шт.

17

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- oil, 9/16 x 1-1/8 x 1/4"

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - plug

1шт.
