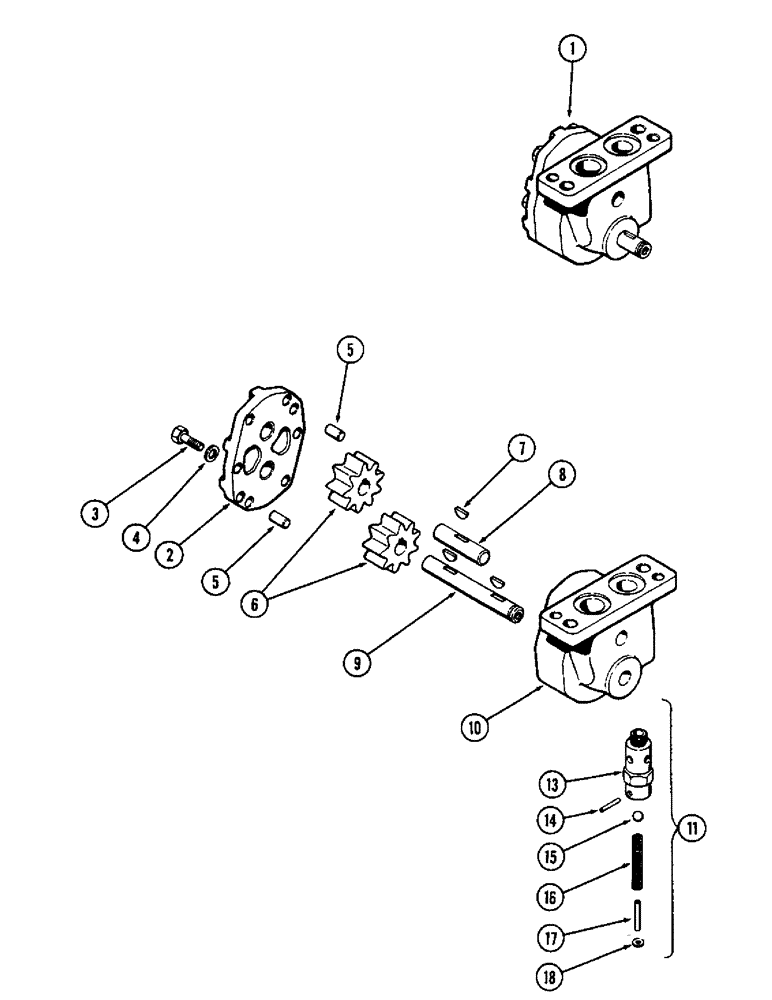

Запчасти Case 580B (190) - A37570 DRIVE PUMP, POWER SHUTTLE (06) - POWER TRAIN

1

A37570

PUMP

ASSY. - converter drive, Inlcudes: Ref. 2 - 18

1шт.

2

A37577

COVER

- pump

1шт.

3

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

6шт.

4

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

6шт.

5

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, cover

2шт.

A37572

SHAFT

GEAR & SHAFT ASSY. - Driver, Long Shaft; Inlcudes: Ref. 6, 7, 9

1шт.

One only is included with each of A37572 drive gear & shaft assy and A37575 idler gear & shaft assy.

1шт.

A37575

SHAFT

GEAR & SHAFT ASSY. - Idler, Short Shaft; Inlcudes: Ref. 6 - 8

1шт.

6

A37574

GEAR - driver & idler

1шт.

7

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Gear #3, 1/8" x 1/2"

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - idler, short

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - driver, long

1шт.

10

A37571

HOUSING

- pump

1шт.

11

A37578

VALVE

ASSY. - relief, Inlcudes: Ref. 13 - 17

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - (Order ref. 11)

1шт.

14

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

15

211-9

BALL,5/16" Dia

- check, . 5/16" Dia

1шт.

16

A37580

VALVE SPRING

SPRING - relief

1шт.

17

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

18

195-6

WASHER,#6

- shim, relief valve

1шт.
